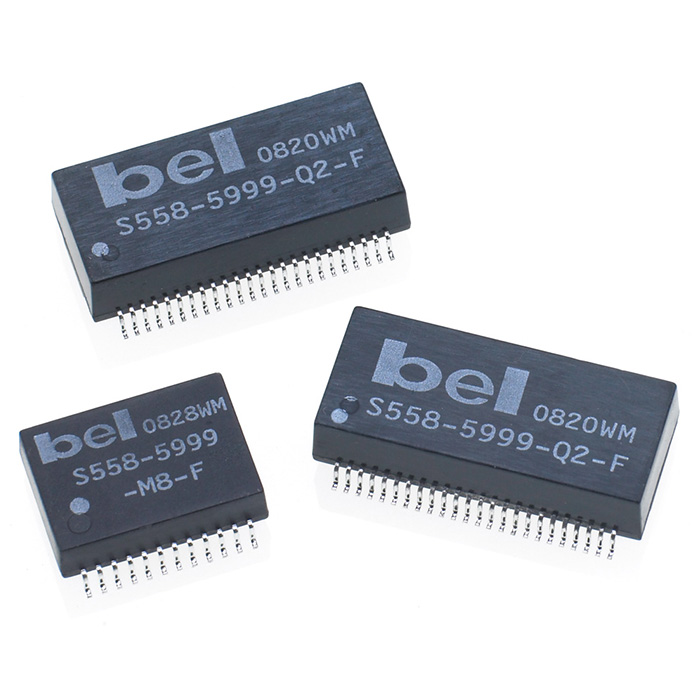

Magnetic Modules
Delivering high-speed magnetic solutions for computer and networking applications in single, dual, and quad SMT modules complying with IEEE 802.3 Ethernet standards, our modules provide reliable performance for 10/100 to 10GBaseT transmissions and support modern communication needs such as voice, video, and data convergence.
Product Resources
Blog Post
Ethernet Invades the Industrial Space
MagJack® ICMs
Discover how Ethernet is revolutionizing industrial spaces with high-speed, reliable, and robust connectivity solutions.
Read Blog PostAttribute Filters
Number of Ports
Speed
Height Profile
Operating Temperature (ºC)
CM Filter
Pin Count
Pin Pitch (in)
PoE Rating
58 Products
| Product | 3D Model | Datasheet | Number of Ports | Speed | Height Profile | Operating Temperature (ºC) | CM Filter | Pin Count | Pin Pitch (in) |
|---|---|---|---|---|---|---|---|---|---|
|
|
Single | 10GBASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.04 | |
|
|
|
Single | 10GBASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.04 | |
|
|
|
Single | 5GBASE-T | Standard | -40 ~ +85 | 2 Wire | 24 | 0.05 | |
|
|
|
Single | 10GBASE-T | Standard | 0 ~ +70 | 2 Wire | 24 | 0.04 | |
|
|
|
Single | 10GBASE-T | Standard | 0 ~ +70 | 3 Wire | 30 | 0.04 | |
|
|
|
Single | 10GBASE-T | Standard | 0 ~ +70 | 3 Wire | 24 | 0.04 | |
|
|
|
Single | 10GBASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.04 | |
|
|
|
Single | 10GBASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.04 | |
|
|
|
Single | 10/100BASE-T | Standard | 0 ~ +70 | 2 Wire | 16 | 0.05 | |
|
|
|
Single | 1000BASE-T | Standard | 0 ~ +70 | 3 Wire | 24 | 0.04 | |
|
|
|
Single | 1000BASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.05 | |
|
|
|
Dual | 1000BASE-T | Standard | -40 ~ +85 | 3 Wire | 48 | 0.04 | |
|
|
|
Single | 1000BASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.05 | |
|
|
|
Dual | 1000BASE-T | Standard | -40 ~ +85 | 3 Wire | 48 | 0.04 | |
|
|
|
Single | 2.5GBASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.05 | |
|
|
|
Single | 2.5GBASE-T | Standard | 0 ~ +70 | 3 Wire | 24 | 0.05 | |
|
|
|
Single | 5GBASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.05 | |
|
|
|
Single | 1000BASE-T | Standard | -40 ~ +85 | 3 Wire | 24 | 0.05 | |
|
|
|
Single | 10/100BASE-T | Standard | 0 ~ +70 | With BST | 16 | 0.1 | |
|
|
|
Quad | 10/100BASE-T | Standard | -40 ~ +85 | 2 Wire | 40 | 0.05 | |
|
|
|
Single | 1000BASE-T | Standard | -40 ~ +85 | 2 Wire | 24 | 0.039 | |
|
|
|
Single | 1000BASE-T | Standard | -40 ~ +85 | With BST | 24 | 0.039 | |
|
|
|
Single | 1000BASE-T | Low | 0 ~ +70 | 2 Wire | 24 | 0.05 | |
|
|
|
Single | 1000BASE-T | Low | 0 ~ +70 | With BST | 24 | 0.05 | |
|
|
|
Single | 1000BASE-T | Standard | -40 ~ +85 | 2 Wire | 24 | 0.05 |
