Battery Chargers
On-board charging for EV platforms, railway rolling stock, and industrial equipment demands chargers that handle wide input voltage swings, survive −40°C cold starts, and scale from auxiliary battery maintenance to full traction pack replenishment. Bel battery chargers span 3W to 25kW output, accepting 85 ~ 1100 VAC single- or three-phase input to deliver 12 ~ 860 VDC, with convection, fan, and liquid cooling options across Bel and Melcher™ product lines.
Technical Paper
More Than EV Batteries: How Bi-Directional Charging Enables New Battery Applications
Learn how bidirectional chargers transform EVs into mobile energy sources, supporting smart grids, emergency power, and industrial applications.
Read Technical PaperAttribute Filters
Power (W)
Input Voltage Min. (VAC)
Input Voltage Max. (VAC)
Output Voltage (VDC)
Output Current (A)
Operating Temperature MIN (ºC)
Operating Temperature MAX (ºC)
Dimensions LxWxH (mm)
Cooling Type
Brand
| Product | 3D Model | Datasheet | Power (W) | Voltage Input Range (VAC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Dimensions LxWxH (mm) | Cooling Type |
|---|---|---|---|---|---|---|---|---|---|
|
|
3 | N/A | 12/24 | 20 | -40 ~ +60 | 54 x 115 x 110 | Convection | |
|
|
|
194 | 85 ~ 264 | 12 | 14 | -40 ~ +60 | 106 x 103 x 138 | Convection | |
|
|
|
115 | 85 ~ 264 | 24 | 4.2 | -40 ~ +60 | 106 x 103 x 138 | Convection | |
|
|
|
230 | 85 ~ 264 | 24 | 8.4 | -40 ~ +60 | 106 x 103 x 138 | Convection | |
|
|
|
230 | 85 ~ 264 | 36 | 5.6 | -40 ~ +60 | 106 x 103 x 138 | Convection | |
|
|
|
115 | 85 ~ 264 | 48 | 2.1 | -40 ~ +60 | 106 x 103 x 138 | Convection | |
|
|
|
230 | 85 ~ 264 | 48 | 4.2 | -40 ~ +60 | 106 x 103 x 138 | Convection | |
|
|
|
120 | 120 ~ 240 | 12 | 7 | -40 ~ +70 | 54 x 115 x 110 | Convection | |
|
|
|
120 | 120 ~ 240 | 24 | 5 | -40 ~ +70 | 54 x 115 x 110 | Convection | |
|
|
|

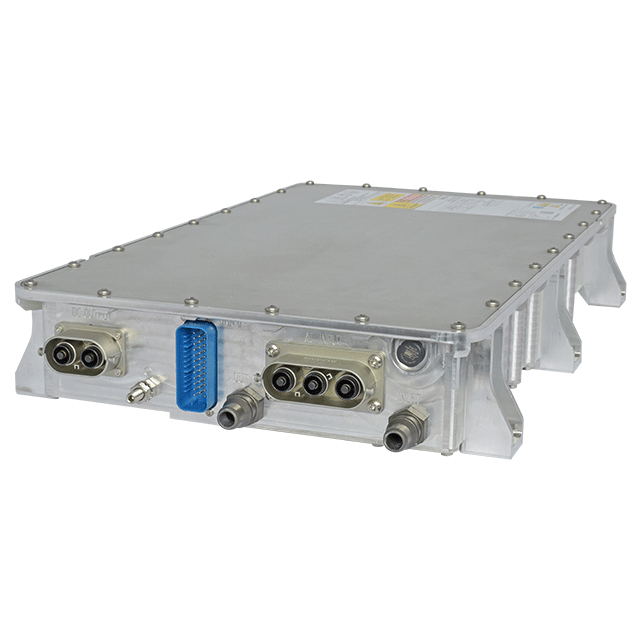

19200 | 90 ~ 305 | 450 ~ 900 | 30 | -40 ~ +60 | 594 x 372 x 95 | Liquid | |
|
|
|
344 | 85 ~ 264 | 24 | 12.6 | -40 ~ +60 | 114 x 194 x 138 | Convection | |
|
|
|
2400 | 340 ~ 550 | 72 | 33 | -40 ~ +70 | 233 x 101 x 160 | Convection | |
|
|
|
10000 | 350 ~ 528 | 110 | 91 | -40 ~ +70 | 440 x 340 x 131 | Fan | |
|
|
|
12000 | 350 ~ 528 | 110 | 110 | -40 ~ +70 | 440 x 340 x 131 | Fan | |
|
|
|
15000 | 350 ~ 528 | 110 | 137 | -40 ~ +70 | 440 x 340 x 131 | Fan | |
|
|
|
20000 | 90 ~ 264 | 250 ~ 435 | 52 | -30 ~ +60 | 650 x 491 x 100 | Liquid | |
|
|
|
20000 | 90 ~ 264 | 450 ~ 850 | 42 | -30 ~ +60 | 650 x 491 x 100 | Liquid | |
|
|
|
25000 | 190 ~ 264, 330 ~ 528 | 250 ~ 800 | 60 | -40 ~ +60 | 705 x 359 x 106 | Liquid | |
|
|
|
25000 | 800 ~ 1100 | 240 ~ 430 | 60 | -25 ~ +60 | 524 x 399 x 111 | Liquid | |
|
|
|
25000 | 800 ~ 1100 | 480 ~ 860 | 30 | -25 ~ +60 | 524 x 399 x 111 | Liquid | |
|
|
|
25000 | 460 ~ 575 | 250 ~ 800 | 37.5 | -40 ~ +65 | 524 x 340 x 84 | Liquid |
