SMPS Transformers
Purposed for high-efficiency, energy-sensitive applications in input off-line and universal input off-line switch mode power supplies, as well as resonant converters with 360-400 VDC input, our SMPS Transformers are ideal for delicate, higher-end products which require peak performance.
Technical Paper
UL Class 2 and 3 vs. IEC Class I, II, and III
Explore the differences between UL Class 2 and 3, and IEC Class I, II, and III.
Read Technical PaperAttribute Filters
Power (W)
Voltage Input Range (VDC)
Output Voltage (VDC)
Output Voltage 2 (VDC)
Output Current (A)
Output Current 2 (A)
Switching Frequency (KHz)
Turns Ratio
DCR - Primary (mOhm)
Inductance - Primary (µH)
Inductance Leakage - Primary(µH)
Saturation - Primary (A)
Length in (mm)
Width in (mm)
Height in (mm)
Platform
Mounting Type
| Product | 3D Model | Datasheet | Power (W) | Voltage Input Range (VDC) | Output Voltage (VDC) | Output Current (A) | Dielectric Strength (Vrms) | Switching Frequency (KHz) | Turns Ratio |
|---|---|---|---|---|---|---|---|---|---|
In stock
SLLC-ETD34-12 |
|
|
150 | 360 ~ 400 | 12 | 12.5 | 4000 | 70 ~ 120 | 35:2:2:3 |
|
In stock
SLLC-ETD34-24 |
|
|
150 | 360 ~ 400 | 24 | 6.2 | 4000 | 70 ~ 120 | 35:4:4:3 |
|
In stock
SLLC-ETD34-48 |
|
|
150 | 360 ~ 400 | 48 | 3.1 | 4000 | 70 ~ 120 | 35:8:8:3 |
|
In stock

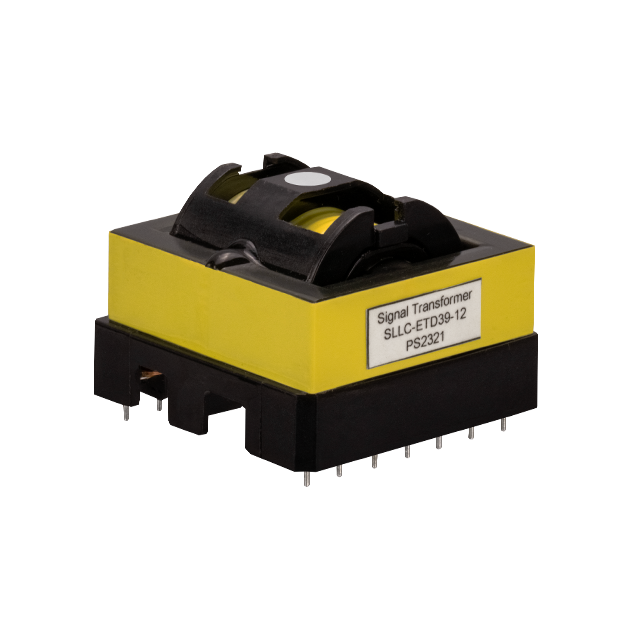

SLLC-ETD39-12 |
|
|
200 | 360 ~ 400 | 12 | 16.7 | 4000 | 70 ~ 120 | 35:2:2:3 |
|
In stock
SLLC-ETD39-24 |
|
|
200 | 360 ~ 400 | 24 | 8.3 | 4000 | 70 ~ 120 | 35:4:4:3 |
|
In stock
SLLC-ETD39-48 |
|
|
200 | 360 ~ 400 | 48 | 4.2 | 4000 | 70 ~ 120 | 35:8:8:3 |
|
In stock
SLLC-ETD44-12 |
|
|
250 | 360 ~ 400 | 12 | 20.8 | 4000 | 70 ~ 120 | 35:2:2:3 |
|
In stock
SLLC-ETD44-24 |
|
|
250 | 360 ~ 400 | 24 | 10.4 | 4000 | 70 ~ 120 | 27:3:3:2 |
|
In stock
SLLC-ETD44-48 |
|
|
250 | 360 ~ 400 | 48 | 5.2 | 4000 | 70 ~ 120 | 27:6:6:2 |
In stock

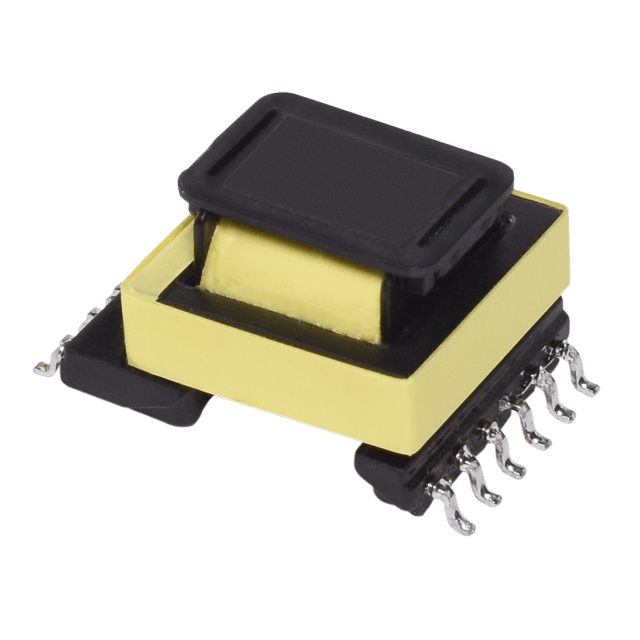

SUOST-12-0505 |
|
|
12 | 125 ~ 375 | 5 | 1.25 | 4000 | 60 ~ 150 | 140:6:6:16 |
|
In stock
SUOST-12-2405 |
|
|
12 | 125 ~ 375 | 24 | 0.3 | 4000 | 60 ~ 150 | 140:22:6:16 |
|
In stock
SUOST-13-1205 |
|
|
13 | 125 ~ 375 | 12 | 0.55 | 4000 | 60 ~ 150 | 140:9:7:18 |
|
In stock
SUOST-13-1212 |
|
|
13 | 125 ~ 375 | 12 | 0.55 | 4000 | 60 ~ 150 | 136:13:13:15 |
|
In stock
SUOST-13-2424 |
|
|
13 | 125 ~ 375 | 24 | 0.28 | 4000 | 60 ~ 150 | 140:27:27:16 |
|
In stock
SUOST-15-0505 |
|
|
15 | 125 ~ 375 | 5 | 1.5 | 4000 | 60 ~ 150 | 160:7:7:18 |
|
In stock
SUOST-15-1205 |
|
|
15 | 125 ~ 375 | 12 | 0.7 | 4000 | 60 ~ 150 | 160:10:7:16 |
|
In stock
SUOST-16-1212 |
|
|
16 | 125 ~ 375 | 12 | 0.65 | 4000 | 60 ~ 150 | 160:14:14:16 |
|
|
|
3 | 125 ~ 375 | 12 | 0.25 | 4000 | 132 | 8.1:1 | |
In stock

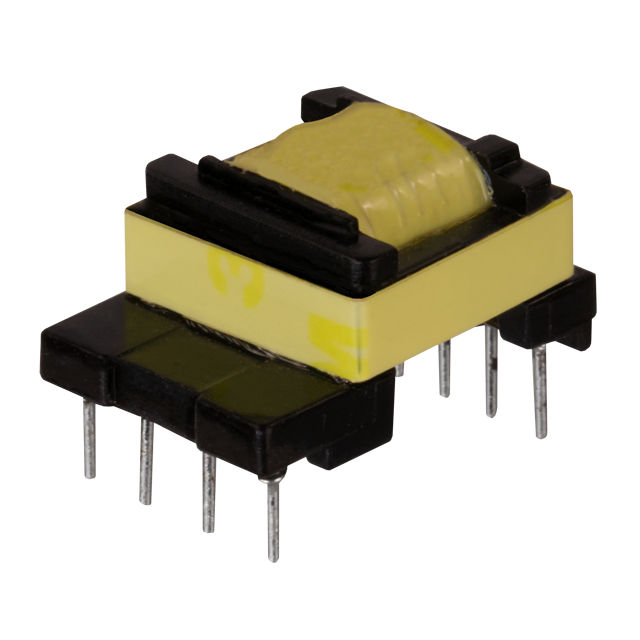

SUOT-EE13H-24 |
|
|
3 | 125 ~ 375 | 24 | 0.13 | 4000 | 132 | 4:1 |
|
|
|
3 | 125 ~ 375 | 5 | 0.6 | 4000 | 132 | 18.9:1 | |
In stock

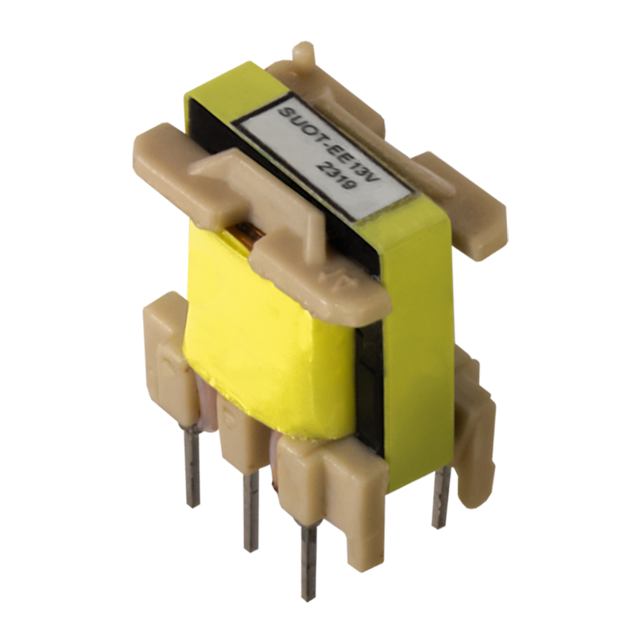

SUOT-EE13V-12 |
|
|
3 | 125 ~ 375 | 12 | 0.25 | 4000 | 132 | 8.1:1 |
|
In stock
SUOT-EE13V-24 |
|
|
3 | 125 ~ 375 | 24 | 0.125 | 4000 | 132 | 4:1 |
|
In stock
SUOT-EE13V-5 |
|
|
3 | 125 ~ 375 | 5 | 0.6 | 4000 | 132 | 18.9:1 |
In stock

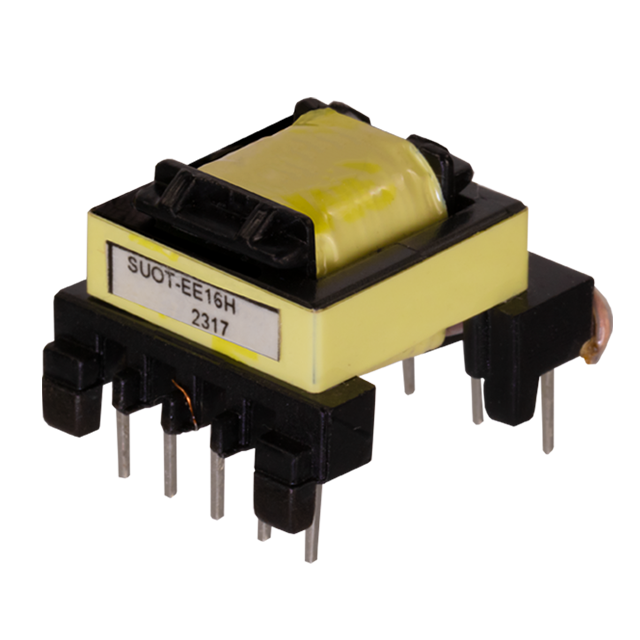

SUOT-EE16H-12 |
|
|
9 | 125 ~ 375 | 12 | 0.35 | 4000 | 132 | 9.5:1:1 |
|
|
|
9 | 125 ~ 375 | 24 | 0.4 | 4000 | 132 | 4.4:1 |
