Charging Coils
Tailored for efficient energy transfer through electromagnetic induction and available in single, double, and triple winding configurations, these coils enable wireless charging for a wide variety of devices from car chargers & phones to robotic cleaners & UAVs.
Product Resources
Blog Post
Selecting Surface Mount Inductors For DC to DC Converter Applications
Inductor Chokes/Coils
Get the most from your DC to DC Converters with our guide to selecting the right surface mount inductors.
Read Blog PostAttribute Filters
Coil Type
Function
Shape
Inductance (µH)
Current (A)
Current Saturation - Isat (A)
DCR (Ohm)
Length (mm)
Width (mm)
Height (mm)
Operating Temperature (ºC)
Quality Factor
20 Products
| Product | 3D Model | Datasheet | Coil Type | Function | Shape | Inductance (µH) | Current (A) | Current Saturation - Isat (A) | DCR (Ohm) |
|---|---|---|---|---|---|---|---|---|---|
In stock

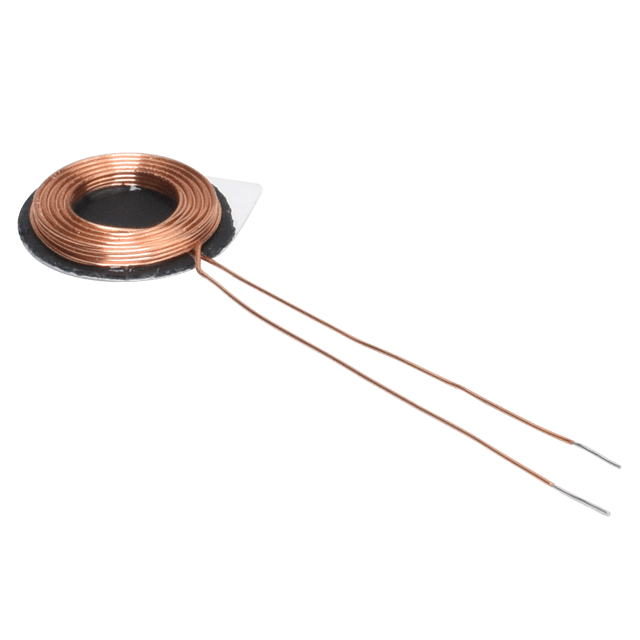

WRSC-13R0K-26 |
|
|
Single | Receiver | Circular | 13 | 0.8 | 2 | 0.5 |
In stock

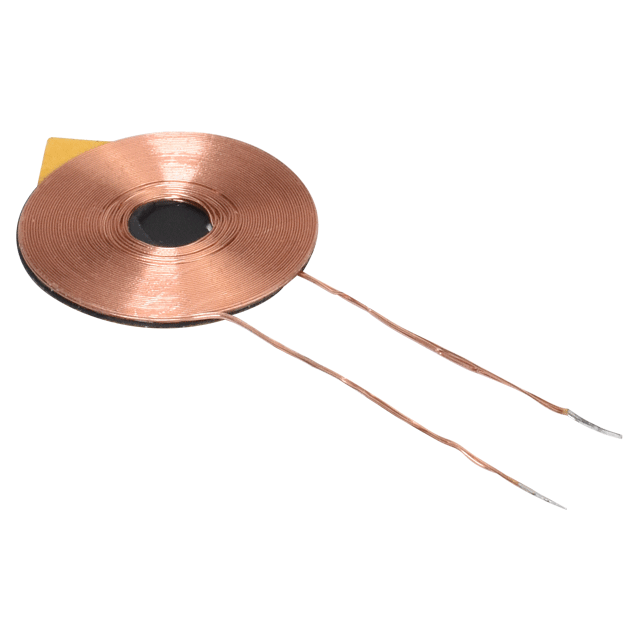

WRSC-26R0K-11 |
|
|
Single | Receiver | Circular | 26 | 1.1 | 2 | 0.52 |
In stock

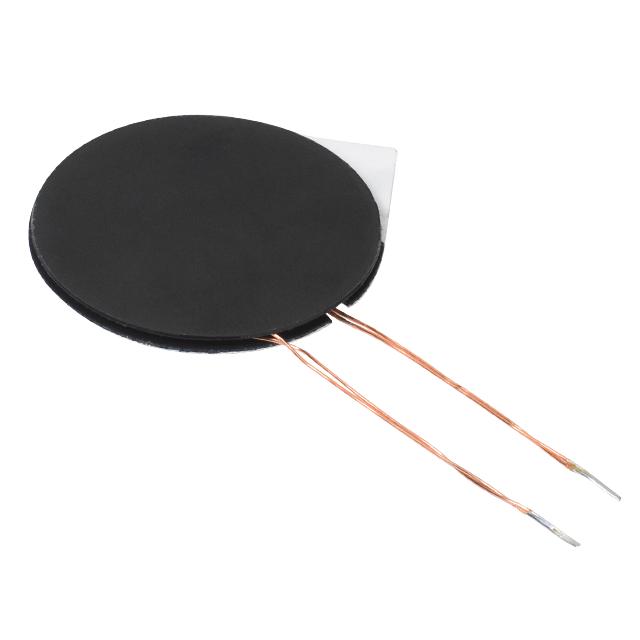

WRSC-47R0K-08 |
|
|
Single | Receiver | Circular | 47 | 1.5 | 3 | 0.5 |
In stock

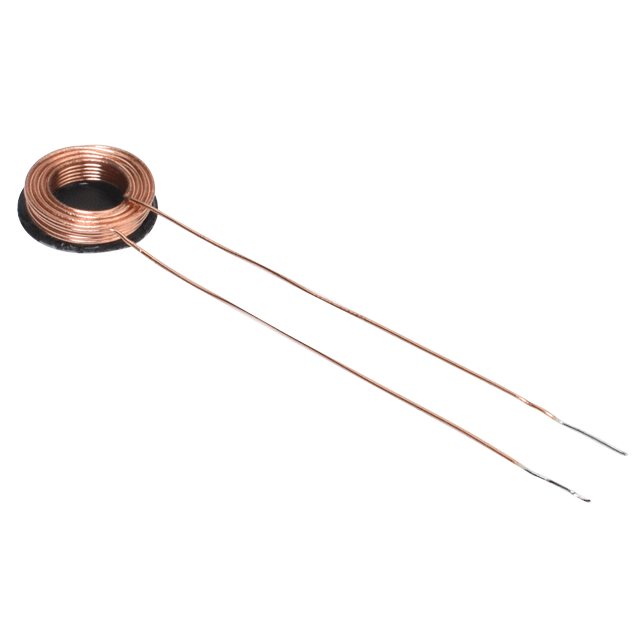

WRSC-7R2K-32 |
|
|
Single | Receiver | Circular | 7.2 | 0.5 | 1 | 0.44 |
In stock
WRSR-11R0K-16 |
|
|
Single | Receiver | Square | 11 | 2.5 | 4 | 0.2 |
In stock

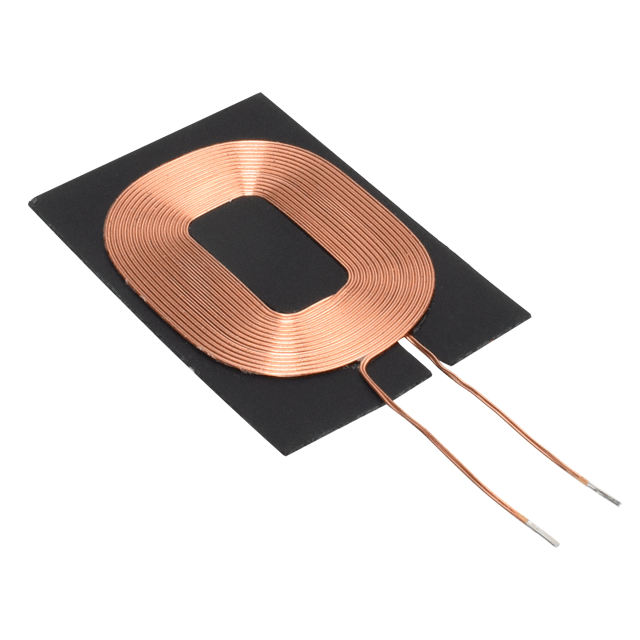

WRSR-12R0K-13 |
|
|
Single | Receiver | Square | 12 | 3 | 6 | 0.2 |
In stock

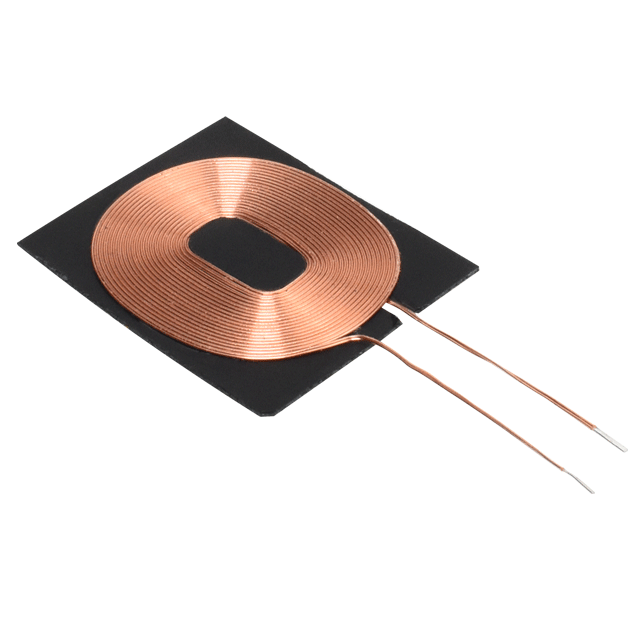

WRSR-16R7K-11 |
|
|
Single | Receiver | Square | 16.7 | 2.5 | 4 | 0.43 |
In stock

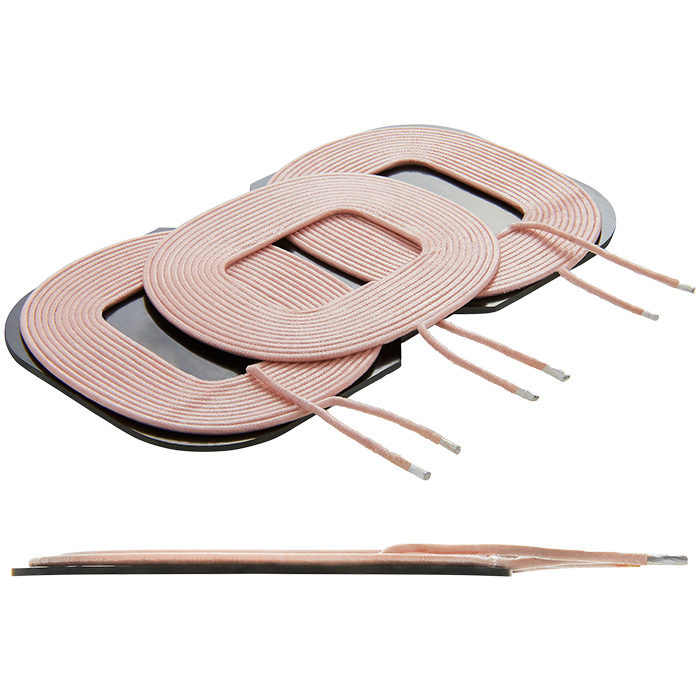

WTM-12R5K-A28 |
|
|
Triple | Transmitter | Rectangular | 12.5 | 7 | 10 | 0.065 |
In stock

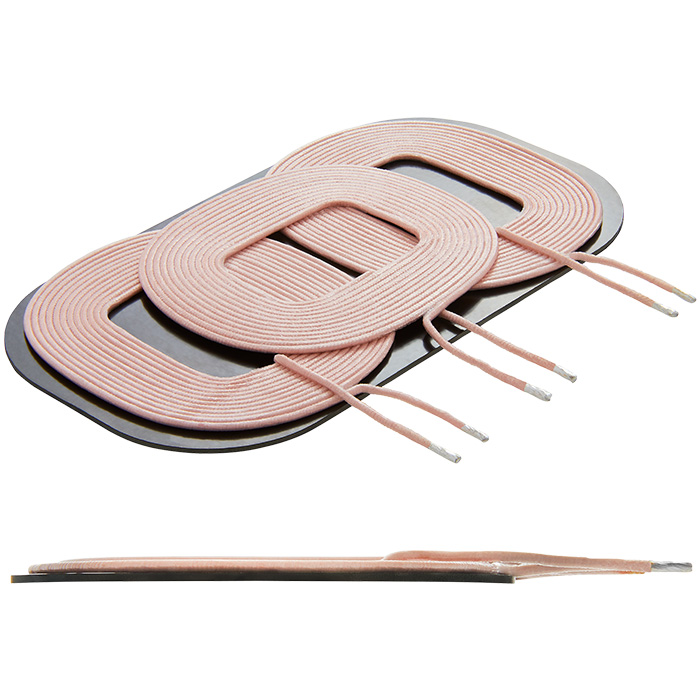

WTM-12R5K-A6 |
|
|
Triple | Transmitter | Rectangular | 12.5 | 7 | 10 | 0.065 |
|
|
|
Triple | Transmitter | Rectangular | 7 | 7 | 12 | 0.045 | |
|
|
|
Double | Transmitter | Rectangular | 7 | 7 | 10 | 0.045 | |
|
|
|
Double | Transmitter | Rectangular | 7 | 7 | 12 | 0.05 | |
In stock

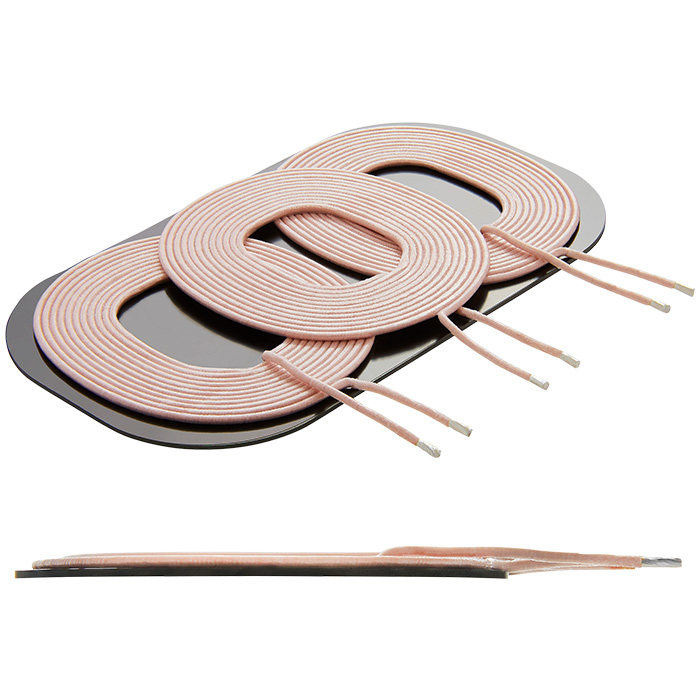

WTM-9R8K-A9 |
|
|
Triple | Transmitter | Rectangular | 9.8 | 8 | 10 | 0.06 |
|
|
|

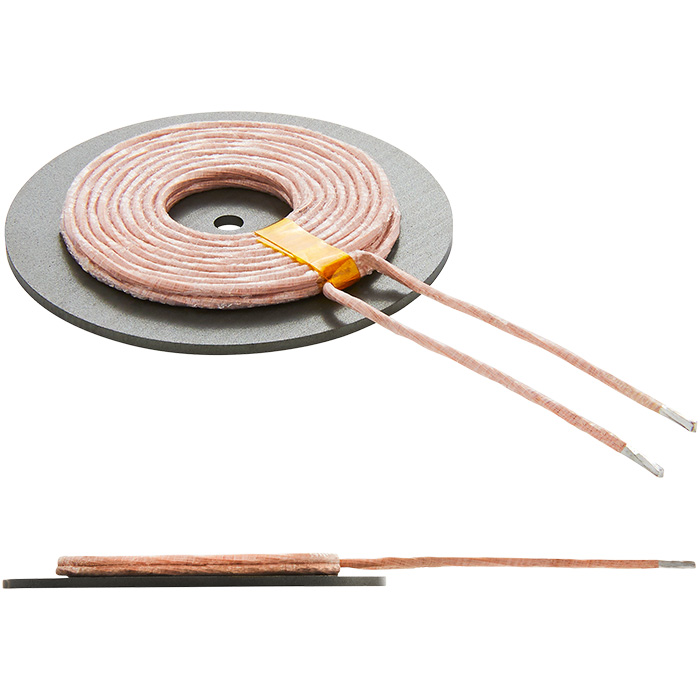

Single | Transmitter | Circular | 10 | 4 | 6 | 0.075 | |
In stock

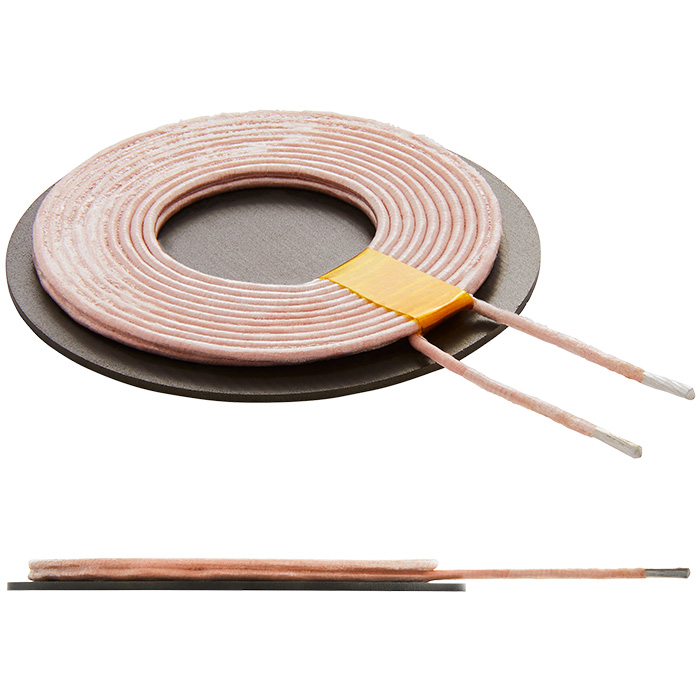

WTSC-24R0K-A10 |
|
|
Single | Transmitter | Circular | 24 | 6 | 10 | 0.085 |
New Product

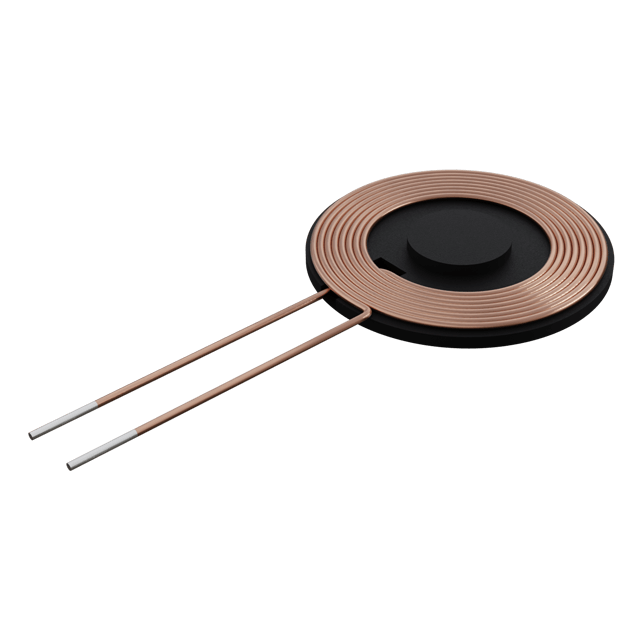

WTSC-2R76J-A11 |
|
|
Single | Transmitter | Circular | 2.76 | 6 | 10 | 0.072 |
In stock

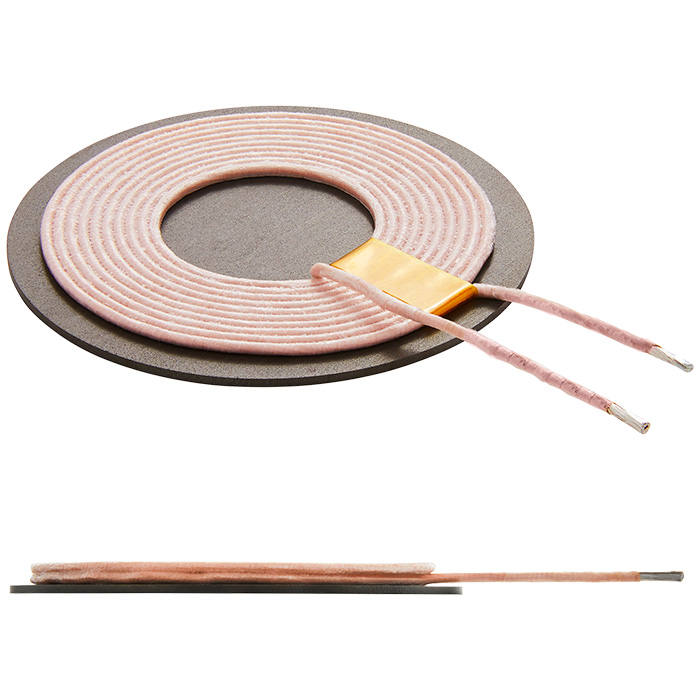

WTSC-6R3K-A11 |
|
|
Single | Transmitter | Circular | 6.3 | 6 | 10 | 0.04 |
In stock

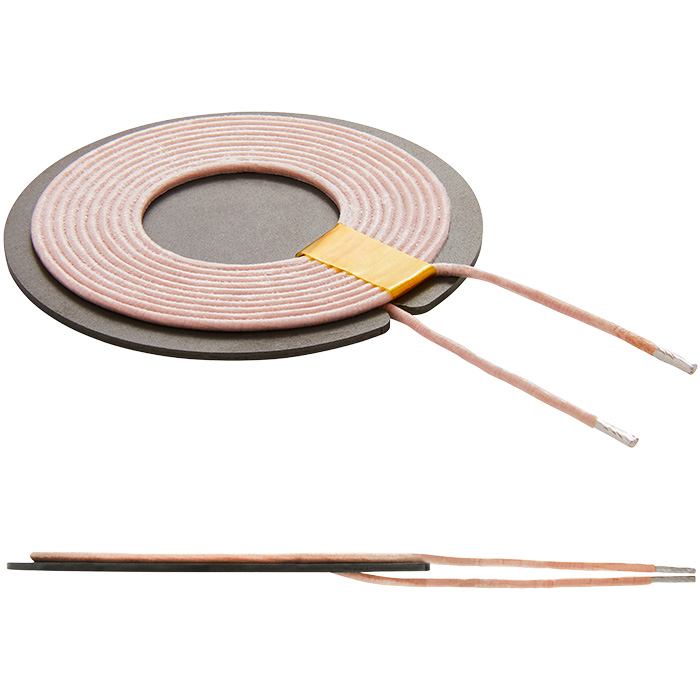

WTSC-6R3K-A11B |
|
|
Single | Transmitter | Circular | 6.3 | 6 | 10 | 0.04 |
|
|
|

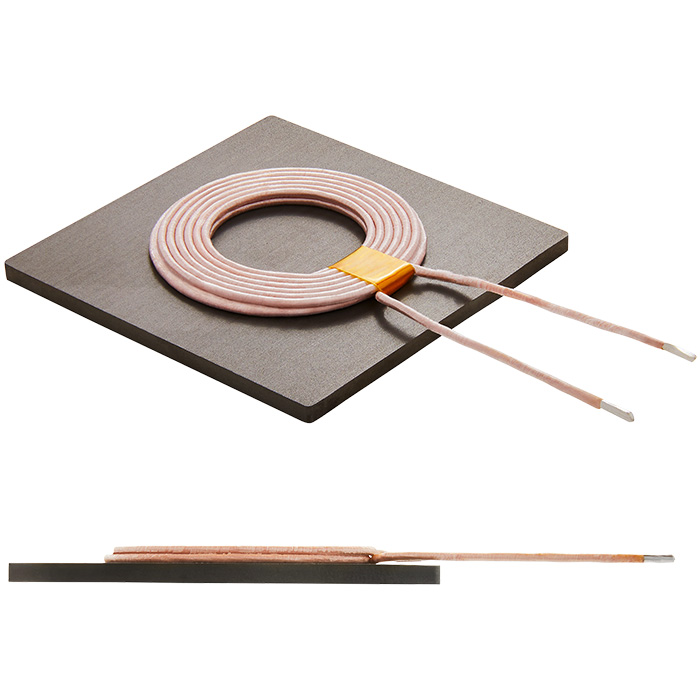

Single | Transmitter | Square | 10 | 7 | 10 | 0.048 | |
|
|
|

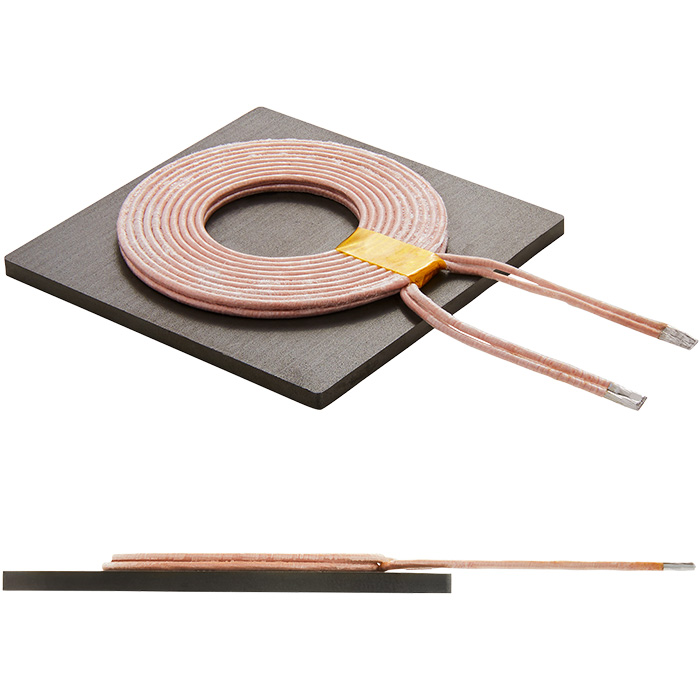

Single | Transmitter | Square | 6.3 | 9 | 10 | 0.025 |
Loading more products . . .
