Front End DC-DC Converters
Front end DC-DC converters form the first stage of a distributed power system. They convert a raw DC input into a stable intermediate bus voltage for downstream point-of-load regulators. High efficiency and power density keep system losses and footprint to a minimum, and integrated input filtering, inrush limiting, and protection features help maintain clean, reliable power. Isolated designs with wide input ranges support telecom, data center, industrial, and transportation applications that need a robust power architecture.
Attribute Filters
Power (W)
Input Voltage Range (VDC)
Standby Output Voltage (VDC)
Output Current (A)
Operating Temperature MIN (ºC)
Operating Temperature MAX (ºC)
Dimensions L x W x H (mm)
Dimensions L x W x H (in)
CRPS Specification
Safety Approvals
| Product | Power (W) | Input Voltage Range (VDC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Dimensions L x W x H (mm) |
|---|---|---|---|---|---|---|
| 300 | -40 ~ -72 | 12 | 25 | 0 ~ +55 | 215.9 x 101.6 x 41.9 | |
| 550 | -36 ~ -72 | 12 | 45 | 0 ~ +50 | 185 x 73.5 x 40 | |
| 750 | -40 ~ -72 | 12 | 62 | 0 ~ +50 | 300 x 50.5 x 40 | |
| 800 | -36 ~ -72 | 12 | 65 | 0 ~ +50 | 185 x 73.5 x 40 | |
| 800 | -40 ~ -72 | 12 | 65 | 0 ~ +50 | 185 x 73.5 x 39 | |
| 1100 | -40 ~ -72 | 12 | 90 | 0 ~ +45 | 321.5 x 54.5 x 40 | |
| 1200 | -40 ~ -72 | 12 | 100 | 0 ~ +45 | 228 x 54.5 x 40 | |
| 1300 | -36 ~ -72 | 12 | 108 | 0 ~ +50 | 185 x 73.5 x 40 | |
| 1500 | -40 ~ -72 | 12 | 125 | 0 ~ +45 | 321.5 x 54.5 x 40 | |
| 1500 | -40 ~ -70 | 12 | 125 | -5 ~ +65 | 228.6 x 54.5 x 40 | |
| 1600 | -36 ~ -72 | 12 | 132 | 0 ~ +50 | 185 x 73.5 x 40 | |
| 1600 | -40 ~ -75 | 12 | 133 | 0 ~ +55 | 195 x 80 x 40 | |
| 1600 | -40 ~ -72 | 12 | 133.3 | -5 ~ +55 | 265 x 73.5 x 40 | |
| 1600 | -40 ~ -72 | 12 | 133.3 | 0 ~ +65 | 321 x 54.5 x 40 | |

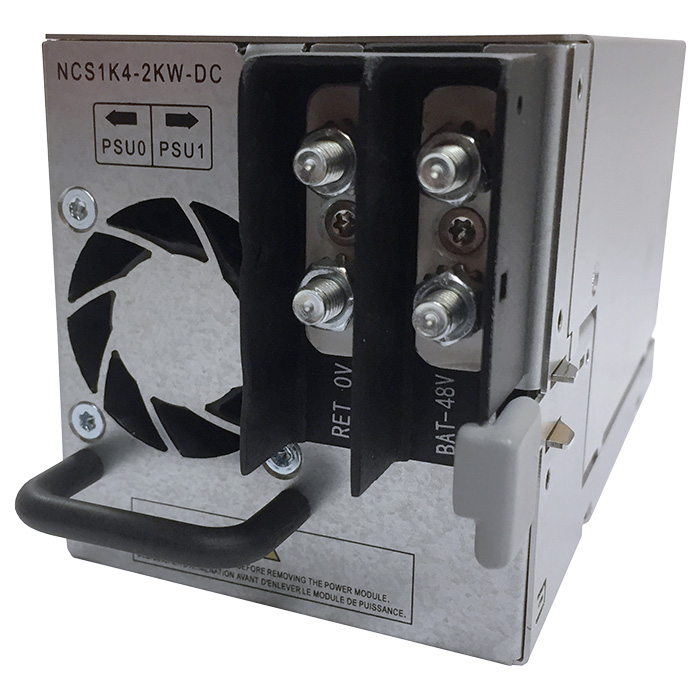

| 2000 | -40 ~ -72 | 12 | 167 | 0 ~ +55 | 265 x 73.5 x 40 | |
| 2000 | -40 ~ -72 | 12 | 167 | -5 ~ +50 | 140 x 73.5 x 80 | |
| 2200 | -40 ~ -75 | 12 | 183 | 0 ~ +55 | 195 x 80 x 40 | |
| 2200 | -40 ~ -72 | 12 | 183 | 0 ~ +55 | 196.5 x 86.3 x 39.3 | |
|
3000 | -40 ~ -72 | 12 | 246 | -5 ~ +55 | 185 x 73.5 x 40 |
|
3200 | -40 ~ -72 | 12 | 262 | -5 ~ +50 | 185 x 73.5 x 40 |
| 2500 | -40 ~ -72 | 12 | 209 | -5 ~ +65 | 321.5 x 54.5 x 40 | |
| 2500 | -40 ~ -72 | 12 | 203 | 0 ~ +65 | 195 x 86 x 40 | |
| 3000 | -40 ~ -72 | 12 | 250 | -5 ~ +65 | 321.5 x 54.5 x 40 | |
| 3000 | -40 ~ -72 | 12 | 244 | 0 ~ +45 | 555 x 69 x 42 |
