TET3600-48-104 (AC-DC/HVDC)

Share

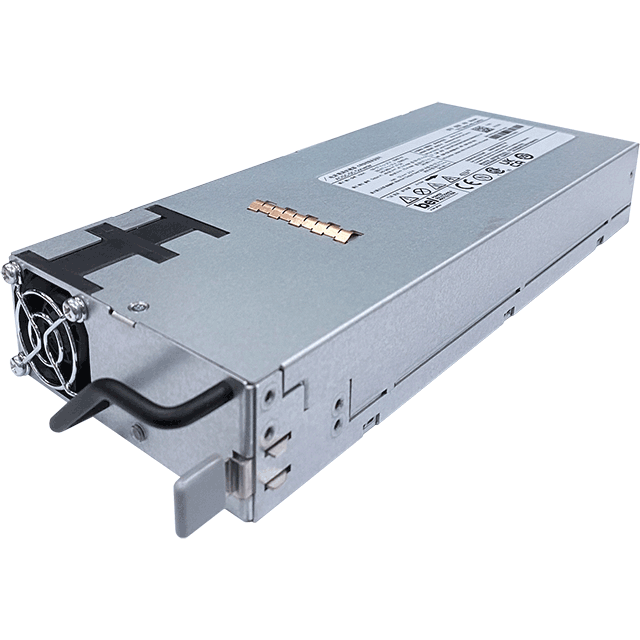

The TET3600 is a 3600 W AC to DC power-factor-corrected (PFC) front end power supply that converts standard AC or HVDC power into a main output of 40 – 57 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, network switches and broadcast applications.

Specifications

  • Very high efficiency, typ. 97% at half load
  • Universal input voltage range: 90 – 305 VAC
  • Adjustable output voltage 40 – 57 VDC
  • 12 VDC standby output
  • High density design: 56 W/in3
  • Small form factor (W x H x L): 104 x 40 x 266 mm (4.09 x 1.57 x 10.47 in)

Features

  • AC input with power factor correction (PFC)
  • Hot-plug capable
  • Parallel operation with active current sharing
  • Digital controls for improved performance
  • Black Box recorder available
  • I2C communication interface for control, programming and monitoring with Power Management Bus protocol

Datasheets and Drawings

Email Form

The TET3600 is a 3600 W AC to DC power-factor-corrected (PFC) front end power supply that converts standard AC or HVDC power into a main output of 40 – 57 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, network switches and broadcast applications.

Specifications

  • Very high efficiency, typ. 97% at half load
  • Universal input voltage range: 90 – 305 VAC
  • Adjustable output voltage 40 – 57 VDC
  • 12 VDC standby output
  • High density design: 56 W/in3
  • Small form factor (W x H x L): 104 x 40 x 266 mm (4.09 x 1.57 x 10.47 in)

Features

  • AC input with power factor correction (PFC)
  • Hot-plug capable
  • Parallel operation with active current sharing
  • Digital controls for improved performance
  • Black Box recorder available
  • I2C communication interface for control, programming and monitoring with Power Management Bus protocol
