SPSTET3 Series

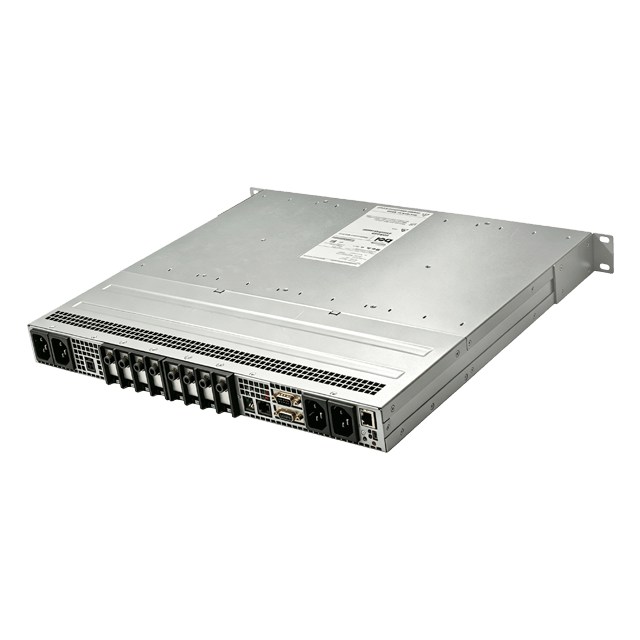

The SPSTET3-01 & SPSTET3-02 power shelf solution provides rectification, system management, and power distribution functions while maintaining high reliability and offering flexibility for future expansion. The power shelf can be configured with up to four hot-swap capable TET3600-65-104xA series or TET3600-48-104xA series AC/DC-DC power modules that convert AC or AC/HVDC input to 23~65 VDC or 42~58 VDC output for powering IT racks, OCP racks and data centers. The shelf has an option for a build-in Network Attached Controller, providing control functions and monitoring through a 10/100/1000 MB base Ethernet port. It can be connected directly to the data center management network.

View Compatible Products

Part Numbers

Specifications & Features

Technical Documents

Technical Support

Loading more products . . .

Compatible Products with SPSTET3 Series

TET3600-48-104 (AC-DC/HVDC) Series

The TET3600 is a 3600 W AC to DC power-factor-corrected (PFC) front end power supply that converts standard AC or HVDC power into a main output of 40 – 57 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, network switches and broadcast applications.

View Product

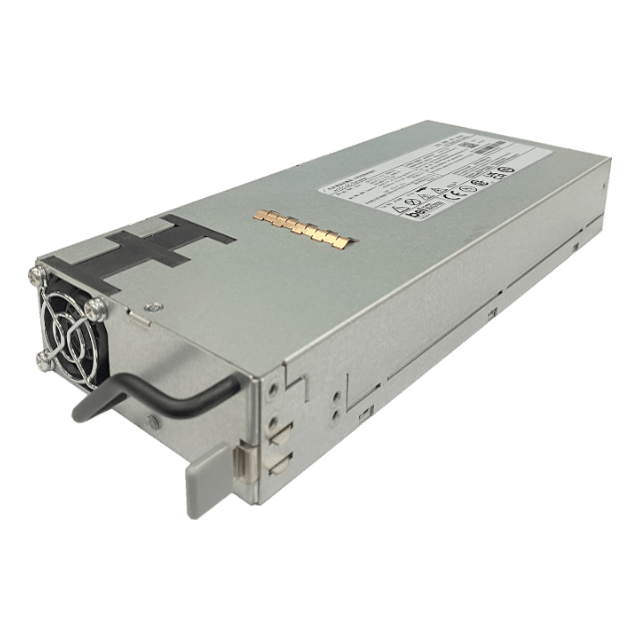

TET3600-65-104 (AC-DC/HVDC) Series

Bel Power Solutions TET3600-65-104xA series is a 3600 Watt AC-DC power-factor-corrected (PFC) power supply that converts standard AC mains power into a main output of 48 VDC (23 – 65 VDC) for supplying 48 VDC power distribution in high performance and reliability data center equipment, servers, routers, and network switches. The TET3600-65-104xA meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

View Product
