SWI6D-N Series

The SWI6D-N series delivers up to 6W of reliable power in a compact, wall plug-in design with a fixed US AC input. Engineered for DoE Level VI efficiency and certified to IEC 62368-1 for ICT/AV safety, this series supports Bel’s commitment to providing high-performance, North America-ready power solutions for information technology equipment.

Features

DoE Level VI efficiency
No load power consumption < 0.1 W
Universal input voltage range
Over current protection (OCP)
Short circuit protection (SCP)
UL/cUL and CE safety approval
Certified to IEC 62368-1
Custom designs available

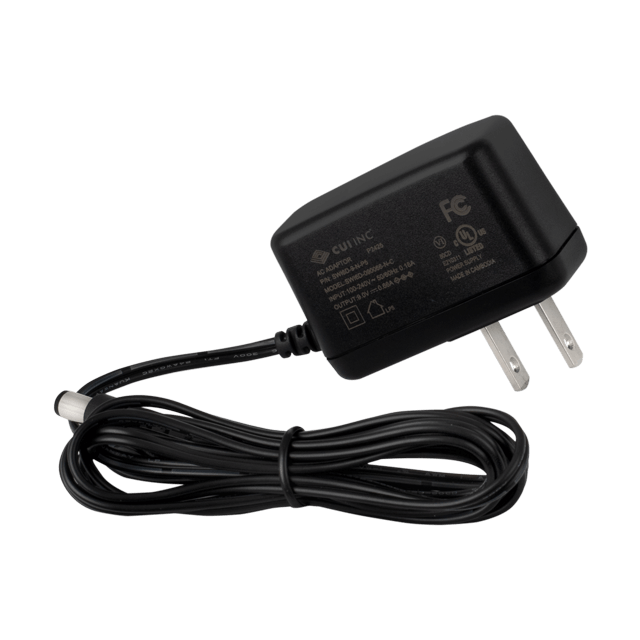

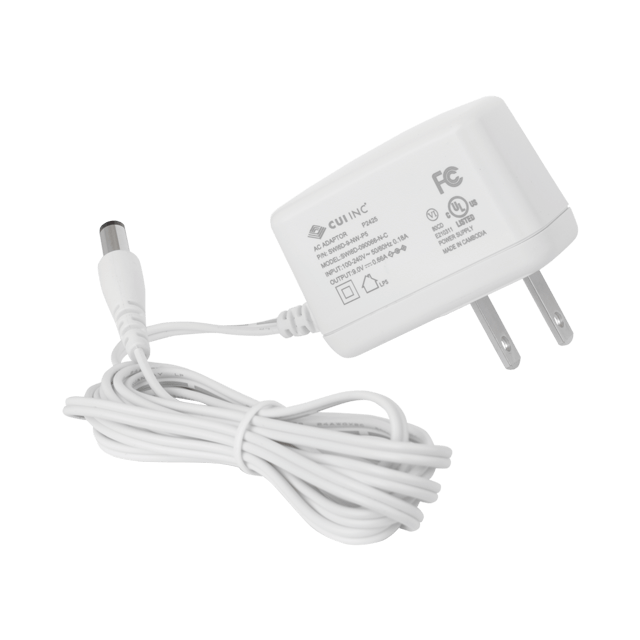

Black and White options available

Specifications

Power (W): 5 ~ 6
Output Voltage (VDC): 5 ~ 12
Input Voltage Range (VAC): 90 ~ 264
Operating Temperature Range (ºC): 0 ~ +50
Dimensions L x W x H (in): 2.16 x 1.39 x 0.94
Dimensions L x W x H (mm): 55.1 x 35.49 x 24.1
Blade Region: North America
DC Plug Type: Barrel Plug
Safety Standards: 62368
Safety Approvals: FCC, UL/cUL
Protections: Over Current, Over Voltage, Short Circuit
RoHS Compliant: Yes

Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
