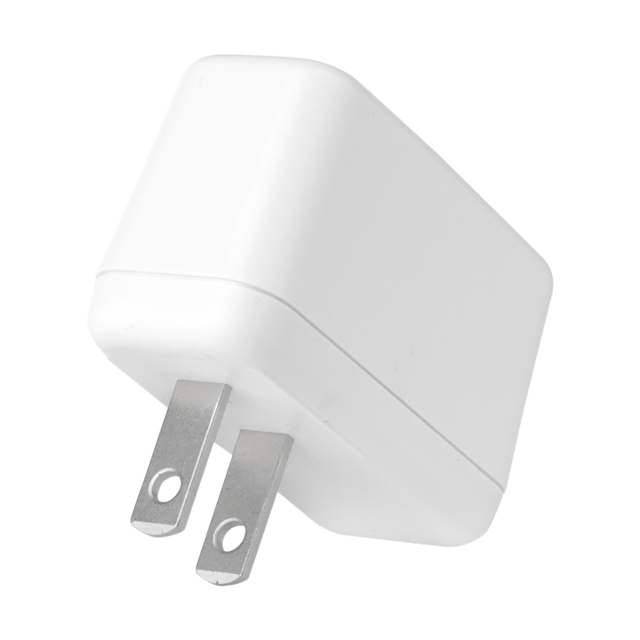

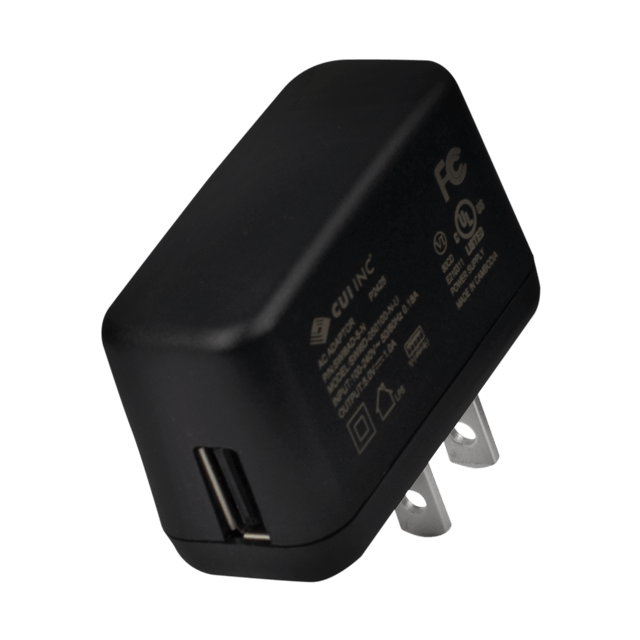

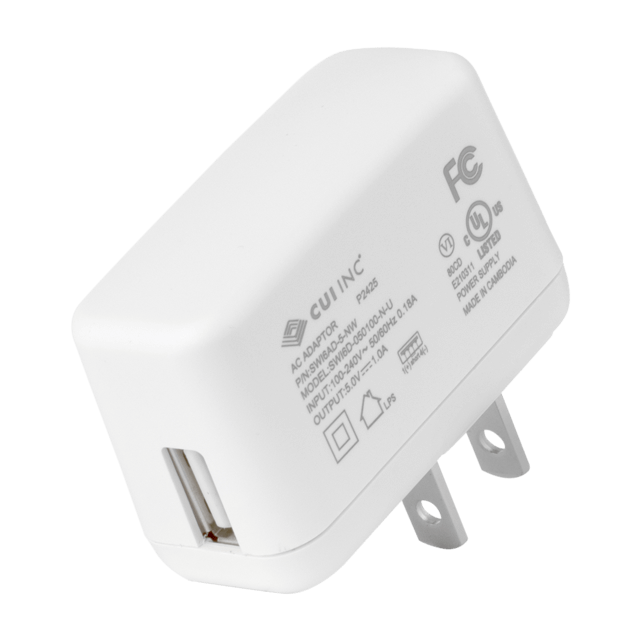

SWI6AD-N Series

Compact and reliable, this North American wall plug-in power supply features a USB-A port (5V/1A) for charging electronics and ITE devices. It supports universal 90–264 VAC input, meets Level VI energy efficiency, and offers ultra-low no-load power (<0.1 W). Built-in overcurrent and short circuit protection ensure safety, with UL 62368-1 and FCC certifications for ICT and AV compliance. Efficient, dependable, and ideal for your next project.

Features

North America fixed blade power supply
USB-A receptacle 5V/1A
DoE level VI efficiency
Universal input voltage range
No load power consumption < 0.1 W
Over current protection (OCP)
Short circuit protection (SCP)
Certified to UL 62368-1
Custom designs available
Black and White options available

Specifications

Power (W): 5
Output Voltage (VDC): 5
Input Voltage Range (VAC): 90 ~ 264
Operating Temperature Range (ºC): 0 ~ +50
Dimensions L x W x H (in): 2.16 x 1.39 x 0.94
Dimensions L x W x H (mm): 55.1 x 35.49 x 24.1
Blade Region: North America
DC Plug Type: USB Type A
Safety Standards: 62368
Safety Approvals: FCC, UL/cUL
Protections: Over Current, Over Voltage, Short Circuit
RoHS Compliant: Yes

Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.

Request Customization
