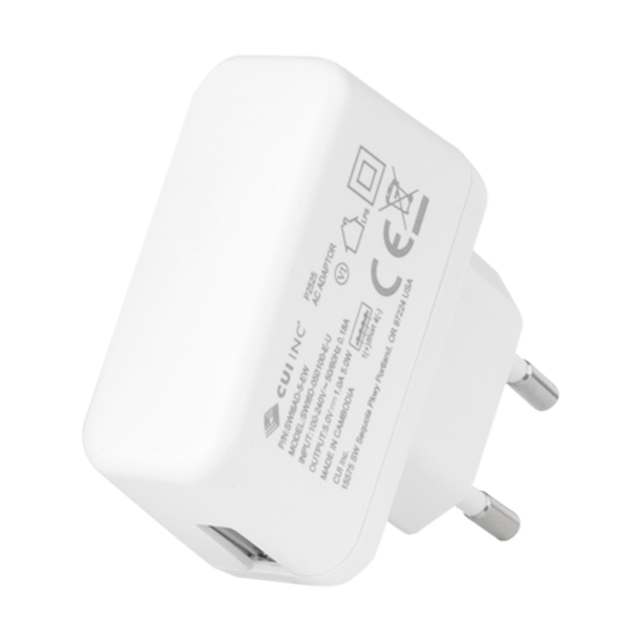

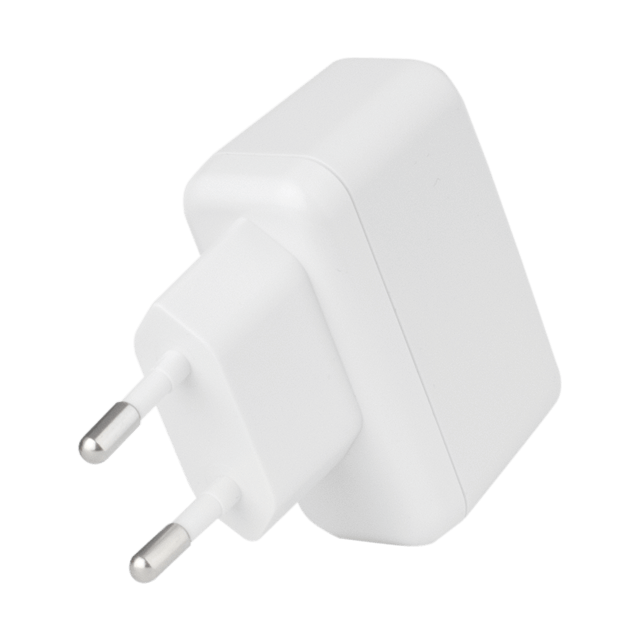

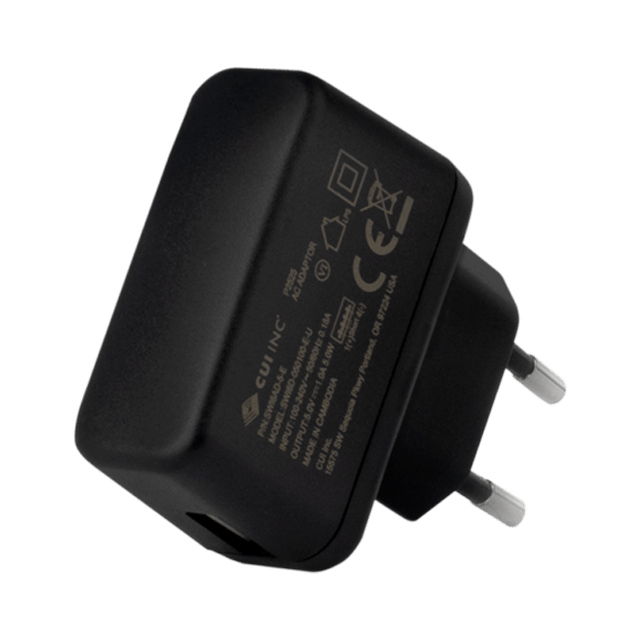

SWI6AD-E Series

The SWI6AD-E series offers reliable power in a small package. Made for European outlets, this wall plug-in power supply has a built-in USB-A port (5V/1A) for easy charging of your devices. It works with any input from 90–264 VAC, meets Ecodesign 2019/1782, and CoC Tier 2 energy efficiency standards, and uses less than 0.1 W when not in use. Safety features include overcurrent and short circuit protection. The adapter is certified to BS EN 62368-1, making it a great choice for ICT and AV equipment.

Features

European fixed blade power supply
USB-A receptacle 5V/1A
Universal input voltage range
No load power consumption < 0.1 W
Over current protection (OCP)
Short circuit protection (SCP)
Custom designs available
Black and White options available

Specifications

Power (W): 5
Output Voltage (VDC): 5
Input Voltage Range (VAC): 90 ~ 264
Operating Temperature Range (ºC): 0 ~ +50
Dimensions L x W x H (in): 2.16 x 1.94 x 1.64
Dimensions L x W x H (mm): 55.1 x 35.49 x 24.1
Blade Region: Europe
DC Plug Type: USB Type A
Safety Standards: 62368
Safety Approvals: CE, UKCA
Protections: Over Current, Over Voltage, Short Circuit
RoHS Compliant: Yes
