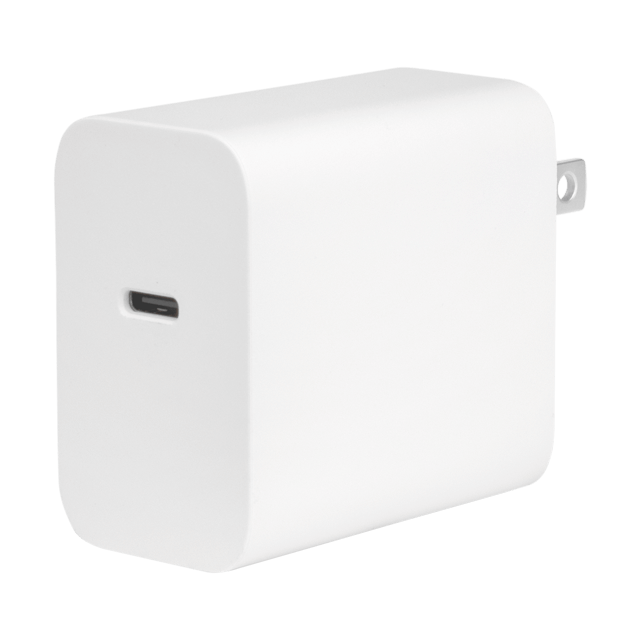

SWI45C-N Series
2 Products
| Product | Power (W) | Input Voltage Range (VAC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Efficiency Standards | Blade Region | Blade Type | Market |
|---|---|---|---|---|---|---|---|---|---|
SWI45C-P-NIn stock
|
|
45 | 90 ~ 264 | 5, 9, 12, 15, 20 | 2.25, 3 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
North America | Fixed Blade | ITE |

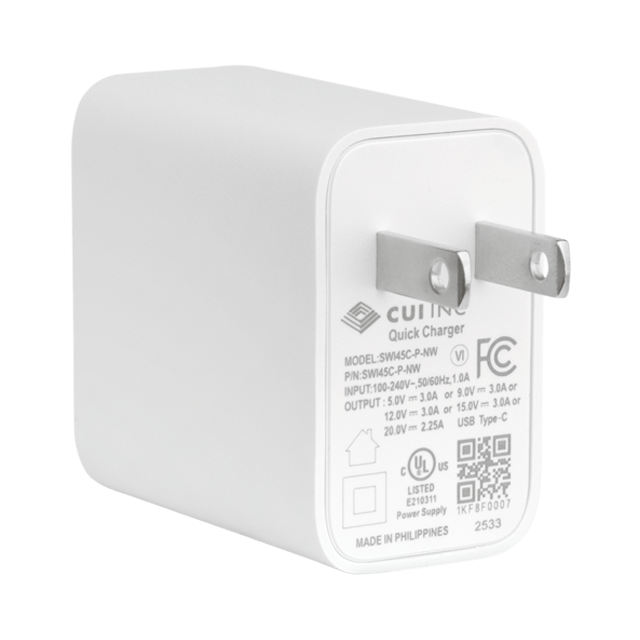

SWI45C-P-NWIn stock
|
|
45 | 90 ~ 264 | 5, 9, 12, 15, 20 | 2.25, 3 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
North America | Fixed Blade | ITE |
Loading more products . . .
Technical Resources & Documents
Drawings & Datasheets
Tech Resources
Specifications
- Power (W): 45
- Output Voltage (VDC): 5 ~ 20
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40
- Dimensions L x W x H (in): 2.07 x 1.9 x 1.14
- Dimensions L x W x H (mm): 52.8 x 48.4 x 29
- Blade Type: Fixed Blade
- DC Plug Type: USB Type C
- Safety Standards: 62368
- Safety Approvals: FCC, UL/cUL
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
Features
- Integrated USB Type C receptacle
- USB Power Delivery (PD) 3.0 compliant
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Customization available

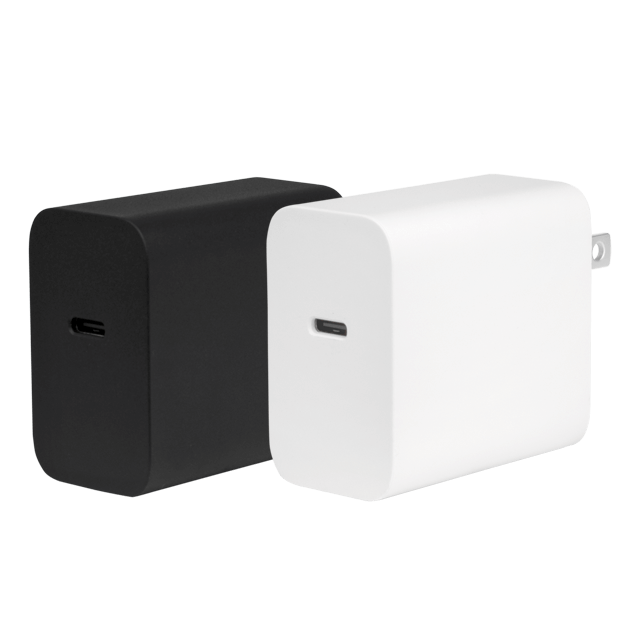

- Black and White options available
