New Product

SWI100C-P-N

Wall Plug Adapters

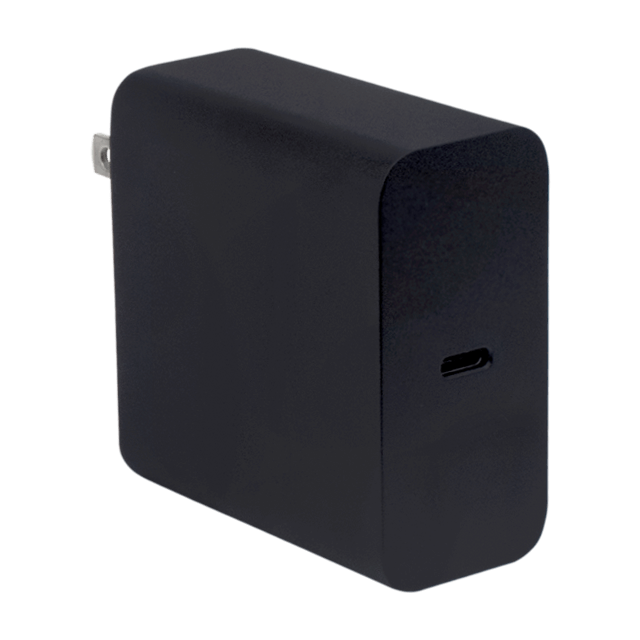

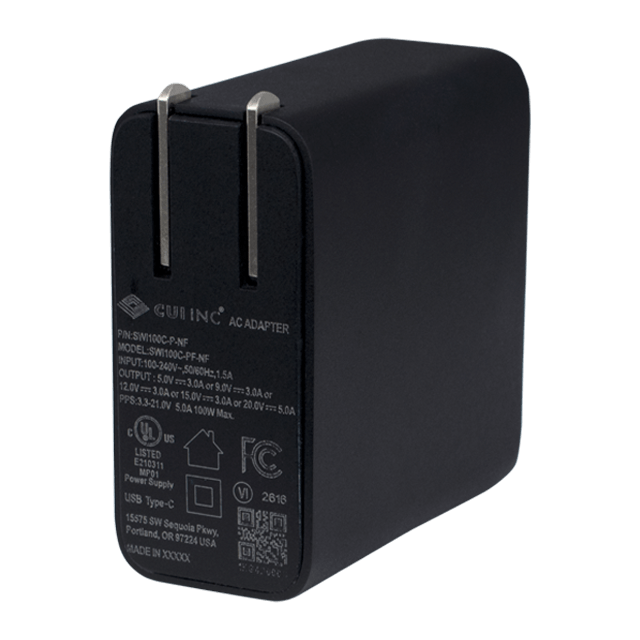

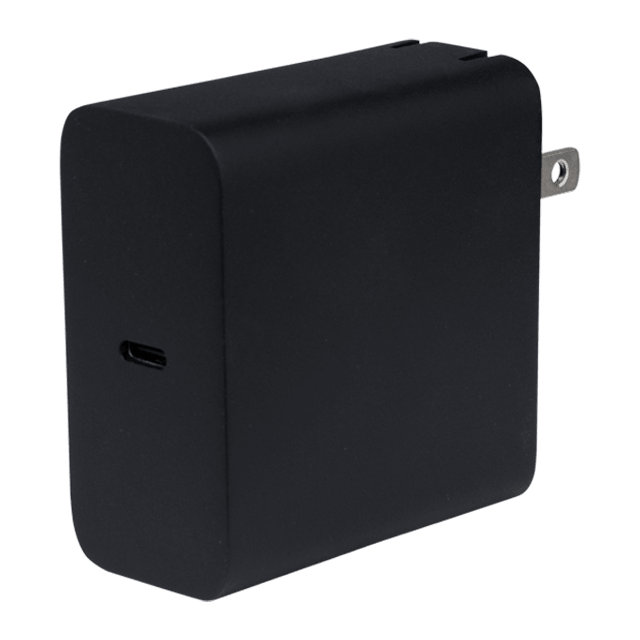

100 W North America Wall Plug-In AC-DC Power Supply with Advanced USB Power Delivery (PD) 3.0 Support, 5 VDC / 9 VDC / 12 VDC / 15 VDC / 20 VDC, 3 A / 5 A Output, 90 ~ 264 VAC Input Range, USB Type C, Black
Request Quote

Stock Check

Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization

Features & Specifications

Power (W) 100
Number of Outputs 5
Output Voltage (VDC) 12, 15, 20, 5, 9
Output Current (A) 3, 5
Input Voltage Range (VAC) 90 ~ 264
Operating Temperature Range (ºC) -10 ~ +40
Dimensions L x W x H (in) 2.48 x 2.42 x 1.18
Dimensions L x W x H (mm) 63 x 61.5 x 30
Efficiency Standards Level VI
Blade Region North America
Blade Type Fixed Blade
DC Plug Type USB Type C
Color Black
Market ITE
Safety Standards 62368
Safety Approvals FCC, UL/cUL
Protections Over Current, Over Voltage, Short Circuit
RoHS Compliant Yes
Brand CUI
