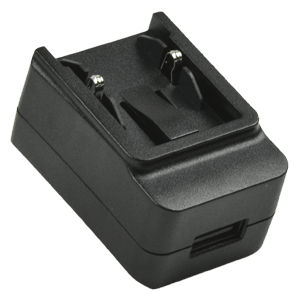

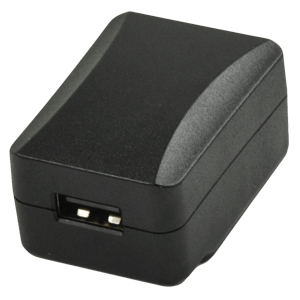

SMI5-USB Series

The SMI5 series is a 5 W wall plug-in AC-DC power supply with interchangeable AC blades and an integrated USB input connector. The series is designed to meet the current US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Designed for global use, CUI's SMI adapters include plug options for North America, Europe, the United Kingdom, Australia and China. This high efficiency power supply adapter is a continuation of CUI's initiative to provide customers with global solutions utilizing the latest in green power technology.

Features

Hidden clip multi-blade adapter
No-load power consumption < 0.075 W
Interchangeable AC blades for global use
Limited Power Source (LPS) rated

Specifications

Power (W): 5
Output Voltage (VDC): 5
Input Voltage Range (VAC): 90 ~ 264
Operating Temperature Range (ºC): 0 ~ +40
Blade Region: Australia, China, Europe, No Blade, North America, United Kingdom
Safety Standards: 60950, 62368
Safety Approvals: CCC, CE, FCC, PSE, RCM, UKCA, UL/cUL
Protections: Over Current, Over Voltage, Short Circuit
RoHS Compliant: Yes

Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.

Request Customization

Part Numbers

Technical Documents

Technical Support

North America Blade for SMI5-USB and SMI6B Multi-Blade Power Adapters in Black

View Product
