SMI36-5-V-P7
Wall Plug Adapters

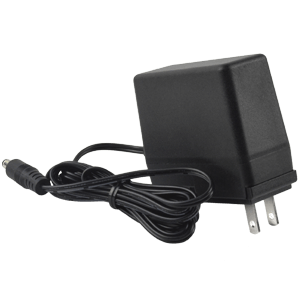

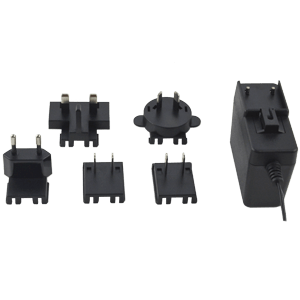

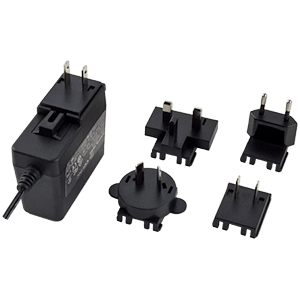

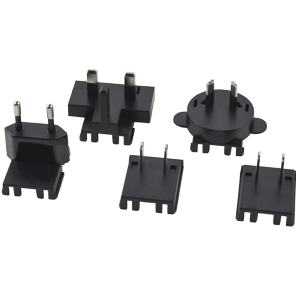

25 W Wall Plug with Interchangeable AC Blades for Global Use, 5 VDC, 5 A Output, 90 ~ 264 VAC Input Range, DC Barrel Plug, 3.5 x 1.35 x 9.5 mm, Straight, Black
Stock Check
Features & Specifications
| Power (W) | 25 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 5 |
| Output Current (A) | 5 |
| Input Voltage Range (VAC) | 90 ~ 264 |
| Operating Temperature Range (ºC) | 0 ~ +40 |
| Dimensions L x W x H (in) | 3.09 x 1.38 x 2.59 |
| Dimensions L x W x H (mm) | 78.5 x 35.3 x 66 |
| Efficiency Standards | CoC Tier 2, EU 2019/1782, Level VI |
| Blade Region | Australia, China, Europe, Japan, North America, United Kingdom |
| Blade Type | Multi-Blade |
| DC Plug Type | Barrel Plug |
| DC Plug Type Dimensions | 3.5mm (OD), 1.35mm (ID), 9.5mm (L) |
| Plug Polarity | Center Positive |
| Plug Angle | Straight |
| Color | Black |
| Market | ITE |
| Safety Standards | 60950, 62368 |
| Safety Approvals | CCC, CE, FCC, PSE, RCM, UKCA, UL/cUL |
| Protections | Over Current, Over Voltage, Short Circuit |
| RoHS Compliant | Yes |
| Brand | CUI |
