SDI200G-U Series
8 Products
| Model Series | 3D Model | Power (W) | Input Voltage Range (VAC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Efficiency Standards | Adapter Technology | Features |
|---|---|---|---|---|---|---|---|---|---|
SDI200G-12-UIn stock
|
|
|
192 | 90 ~ 264 | 12 | 16 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
GaN | GaN |
SDI200G-18-UIn stock
|
|
|
200 | 90 ~ 264 | 18 | 11.1 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
GaN | GaN |
SDI200G-19-UIn stock
|
|
|
200 | 90 ~ 264 | 19 | 10.5 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
GaN | GaN |
SDI200G-19.5-UIn stock
|
|
|
200 | 90 ~ 264 | 19.5 | 10.2 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
GaN | GaN |
SDI200G-20-UIn stock
|
|
|
200 | 90 ~ 264 | 20 | 10 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
GaN | GaN |
SDI200G-24-UIn stock
|
|
|
200 | 90 ~ 264 | 24 | 8.3 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
GaN | GaN |
SDI200G-48-UIn stock
|
|
|
200 | 90 ~ 264 | 48 | 4.2 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
GaN | GaN |
SDI200G-56-UIn stock
|
|
|
200 | 90 ~ 264 | 56 | 3.6 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
GaN | GaN |
Loading more products . . .
Technical Resources & Documents
Drawings & Datasheets
Safety Certificates
Tech Resources
Specifications
- Power (W): 192 ~ 200
- Output Voltage (VDC): 12 ~ 56
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40

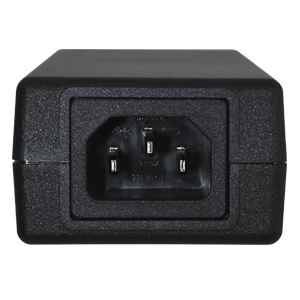

- AC Inlet Type: 3 Prong (C14)
- Input Cable Region: No Cable
- Adapter Technology: GaN
- Safety Standards: 62368
- Safety Approvals: CE, FCC, PSE, UKCA, UL/cUL
- Protections: Over Current, Over Temperature, Over Voltage
- RoHS Compliant: Yes
Features
- Gallium nitride (GaN) Technology
- Power factor correction (PFC)
- Compact design
Loading more products . . .
Compatible Products with SDI200G-U Series
Option
SDI200-U Series
The SDI200-U series is a 200 W desktop AC-DC power supply with C14 inlet designed to meet the current US DoE Level VI efficiency standards in addition to the new UL/cUL 62368-1 standard for ICT and AV equipment. Featuring no-load power consumption as low as 0.15 W, the SDI200-U desktop adapter is the ideal solution to keep you one step ahead of the latest power regulations.
View Product
