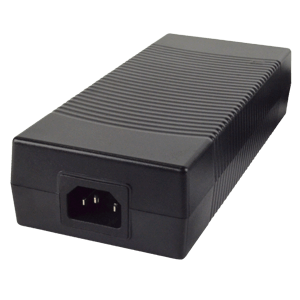

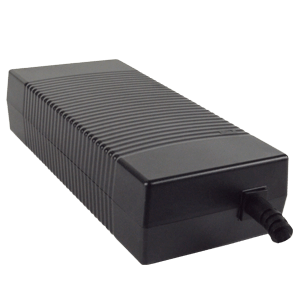

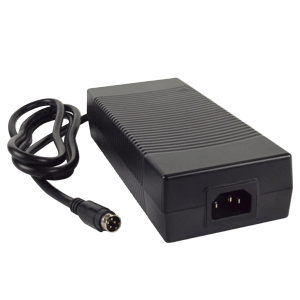

SDI200-U Series
Specifications
- Power (W): 189 ~ 200
- Output Voltage (VDC): 12 ~ 56
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40
- AC Inlet Type: 3 Prong (C14)
- Input Cable Region: Europe, No Cable, North America
- Adapter Technology: Standard
- Safety Standards: 60950, 62368
- Safety Approvals: CE, FCC, PSE, UKCA, UL/cUL
- Protections: Over Current, Over Temperature, Over Voltage
- RoHS Compliant: Yes
Features
- Power factor correction (PFC)
Loading more products . . .
Compatible Products with SDI200-U Series
Option
SDI200G-U Series
Thanks to GaN technology, the powerful SDI200G-U series offers no-load power consumption as low as 0.21 W and meets the current US DoE Level VI efficiency standards, in addition to IEC 62368-1 standards for ICT and AV equipment. Featuring up to a 250% increase in power density, the SDI200G-U series is a 200 W desktop AC-DC power supply with C14 inlet offering fast, efficient power in a compact package.
View Product
