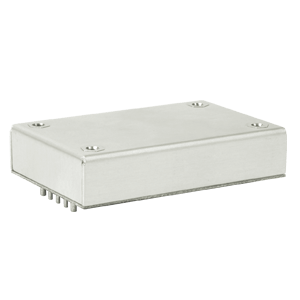

The VQB75W series is a 75W isolated quarter brick DC-DC converter with a wide 4:1 input range, up to 87% efficiency, and 1,500 Vdc isolation, ideal for industrial and telecom applications. It operates from -40 to +105°C and includes remote on/off control and robust protection features.
Features
  • 4:1 input range
  • Single regulated output
  • Industry standard quarter brick package
  • Remote on/off control
  • Output trim
  • Remote sense
  • Efficiency up to 87%
Specifications
  • Power (W): 40 ~ 75
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +100
  • Standard Footprint: 1
  • Isolation (VDC): 1500
  • Isolated: Yes
  • RoHS Compliant: Yes
