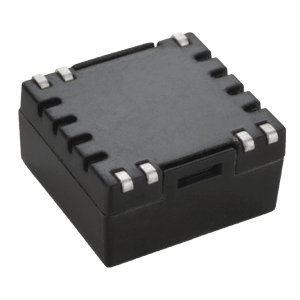

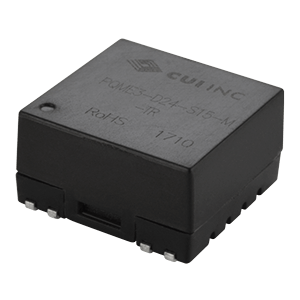

PQME3 Series
Recommended Replacements for PQME3 Series
VAWQ3 Series
The VAWQ3 series is an encapsulated 3W isolated DC-DC converter in a compact DIP package, designed for high efficiency and reliability. With a wide 4:1 input voltage range, up to 77% efficiency, and an operating temperature range of -25 to +95°C, the series is well-suited for industrial automation, telecom, remote sensor systems, and portable electronics.
View Product
PDQ2-S Series
The PDQ2-S regulated DC-DC converter series is a family of 2 W isolated modules offering a wide 2:1 input range and 1,500 VDC isolation. Housed in a compact 8 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of DC rails within a range of industrial, telecom, security, and machine control applications.
View ProductSpecifications
- Power (W): 3
- Input Voltage Range (VDC): 9 ~ 75
- Output Voltage (VDC): 3.3 ~ 24
- Standard Footprint: SMT14
- Isolation (VDC): 1500
- Isolated: Yes
- Safety Approvals: CE, UL/cUL
- RoHS Compliant: Yes
Features
- 4:1 input range
- Industry standard 14 pin SMT package
- Single regulated output
- Efficiency up to 84%
- No-load power consumption < 0.1 W
