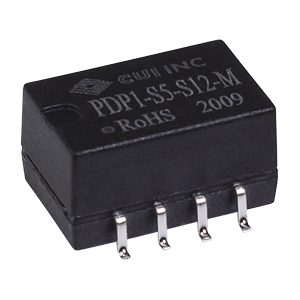

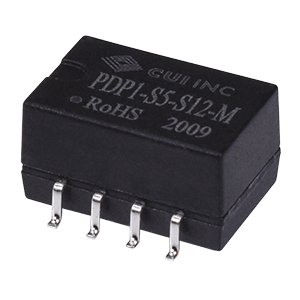

PDP1-M Series
Recommended Replacements

PCN1-M Series
The PCN1-M unregulated DC-DC converter series is a family of low cost 1 W isolated modules offering efficiency up to 81% and 1,500 Vdc isolation. Housed in a compact 8 pin surface mount package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of dc rails within a range of industrial, telecom, security, and machine control applications.
View Product
DEP1-M Series
The DEP1-M unregulated DC-DC converter series is a family of 1 W isolated modules designed to offer improved efficiency and higher isolation. Featuring a compact SMT package, an ultra-wide -40 to +105 ºC operating temperature range, and 3,000 Vdc isolation, these low power DC-DC converters provide a rugged barrier of protection for a range of sensitive applications, including medical equipment, industrial control, and mixed digital/analog systems.
View Product
DHP1-M Series
The DHP1-M unregulated DC-DC converter series is a family of 1 W isolated modules designed to offer improved efficiency and higher isolation. Featuring a compact SMT package, an ultra-wide -40 to +105 ºC operating temperature range, and 2,000 Vdc isolation, these low power DC-DC converters provide a rugged barrier of protection for a range of sensitive applications, including medical equipment, industrial control, and mixed digital/analog systems.
View Product- 1:1 input range
- Single unregulated output
- Industry standard 8 pin SMT package
- No-load input current as low as 5 mA
- Efficiency up to 83%
- Power (W): 1
- Input Voltage Range (VDC): 4.5 ~ 5.5
- Output Voltage (VDC): 3.3 ~ 12
- Standard Footprint: SMT8
- Isolation (VDC): 1500
- Isolated: Yes
- Safety Approvals: UL/cUL
- RoHS Compliant: Yes
