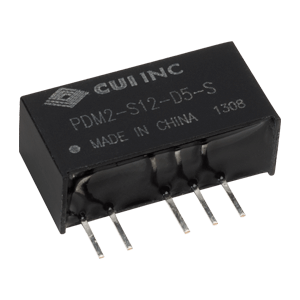

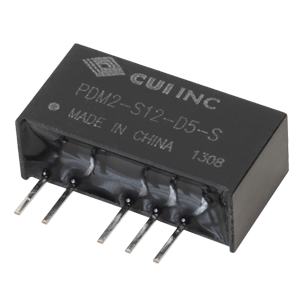

PDM2-S Series
Recommended Replacements
PCN2-S Series
The PCN2-S unregulated DC-DC converter series is a family of low cost 2 W isolated modules offering efficiency up to 86% and 1,000 VDC isolation. Housed in a compact 7 pin SIP package and featuring a -40ºC ~ +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of DC rails within a range of industrial, telecom, security, and machine control applications.
View Product
PDQ2-S Series
The PDQ2-S regulated DC-DC converter series is a family of 2 W isolated modules offering a wide 2:1 input range and 1,500 VDC isolation. Housed in a compact 8 pin SIP package and featuring a -40 to +100ºC operating temperature range, these low power DC-DC converters are ideal for conversion and isolation of DC rails within a range of industrial, telecom, security, and machine control applications.
View Product- 2 W
- 1:1 input range
- Single/dual unregulated outputs
- Industry standard 6 pin SIP package
- -40 to +105°C temperature range
- Antistatic protection (ESD) up to 8kV
- Low no-load power consumption
- Power (W): 1.32 ~ 2
- Input Voltage Range (VDC): 4.5 ~ 26.4
- Output Voltage (VDC): 3.3 ~ 24
- Isolation (VDC): 1500
- Isolated: Yes
- Safety Approvals: UL/cUL
- RoHS Compliant: Yes
