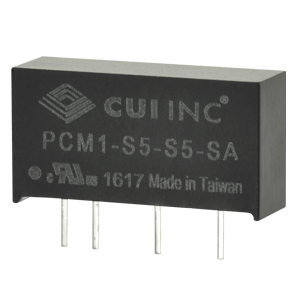

PCM1-SA Series

The low cost PCM1-SA unregulated DC-DC converter series delivers efficiency up to 76% and 1,000 VDC isolation. Housed in a compact 7 pin SIP package and featuring a -40 to +85ºC operating temperature range, this low power DC-DC converter is ideal for conversion and isolation of DC rails within a range of industrial, telecom, security, and machine control applications.
Features
  • 1:1 input range
  • Single unregulated output
  • Industry standard 7 pin SIP package
Specifications
  • Power (W): 1
  • Input Voltage Range (VDC): 4.5 ~ 5.5
  • Output Voltage (VDC): 5
  • Operating Temperature Range (ºC): -40 ~ +85
  • Dimensions L x W x H (mm): 19.6 x 6 x 10.2
  • Dimensions L x W x H (in): 0.77 x 0.24 x 0.4
  • Standard Footprint: SIP7
  • Isolation (VDC): 1000
  • Isolated: Yes
  • RoHS Compliant: Yes
