DRQ10-S Series

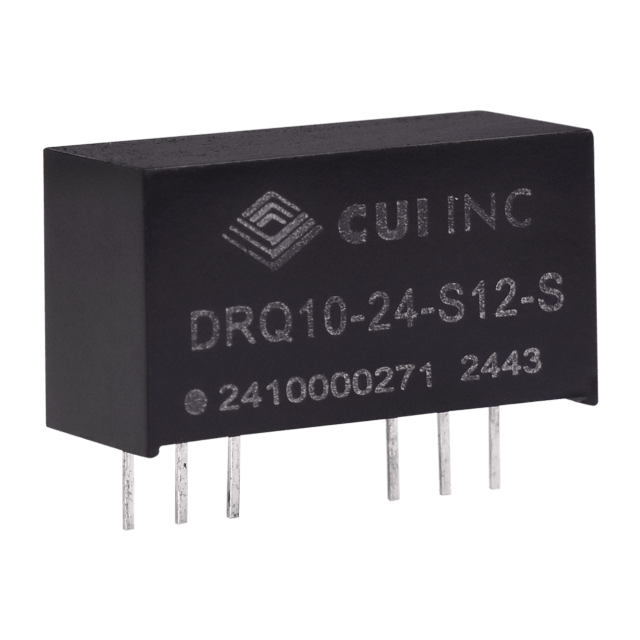

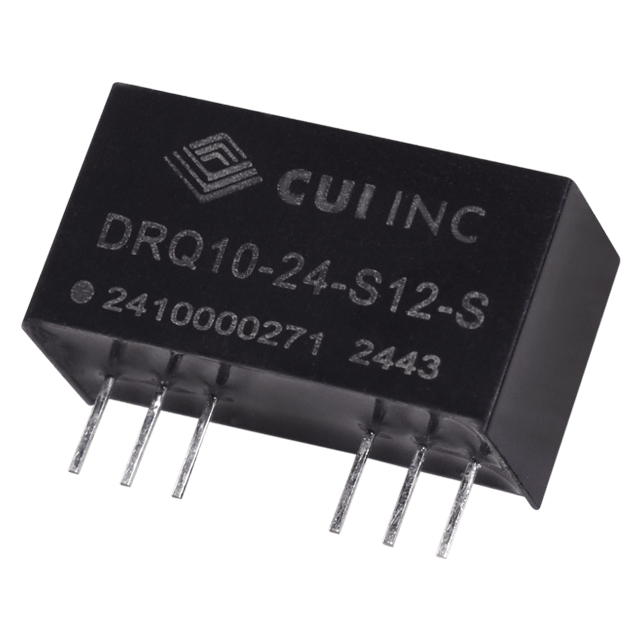

The DRQ10-S series is a family of 10 W regulated DC-DC converters offering a wide 4:1 input voltage range and 3,000 Vdc isolation. Housed in a compact SIP package, these converters feature single or dual regulated outputs and an extended operating temperature range of -40 to +105°C. Ideal for high-performance applications in industrial, telecom, and security systems, the DRQ10-S series ensures reliable dc rail conversion and isolation.
Features
  • 4:1 input range
  • Single/dual regulated outputs
  • 3000 Vdc isolation
  • Remote on/off control
  • Extended temperature range
  • Continuous short circuit protection
Specifications
  • Power (W): 6.6 ~ 10
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 3.3 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +105
  • Standard Footprint: SIP6
  • Isolation (VDC): 3000
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
