3D View
0RQB-15Y05X
DC-DC Converters

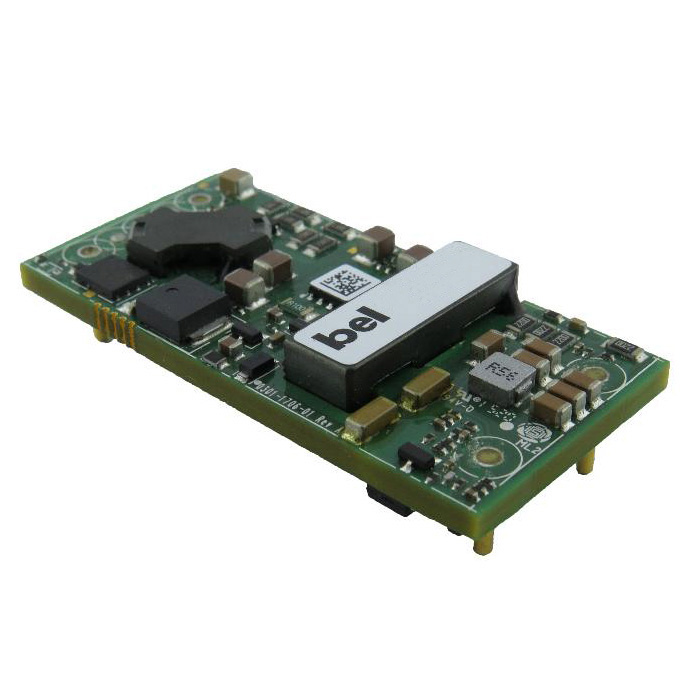

Rugged BMP DC-DC Converter | Power 15W | Output 5VDC, 3A | Input 14.5-154VDC | Active Low, without heatsink | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 15 |
| Input Voltage Range (VDC) | 14.5 ~ 154 |
| Output Voltage (VDC) | 5 |
| Output Current (A) | 3 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +105 |
| Dimensions L x W x H (mm) | 58.42 x 27.94 x 10.8 |
| Dimensions L x W x H (in) | 2.3 x 1.1 x 0.425 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CE, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
