0RCY-D4T12 Series (E, F)

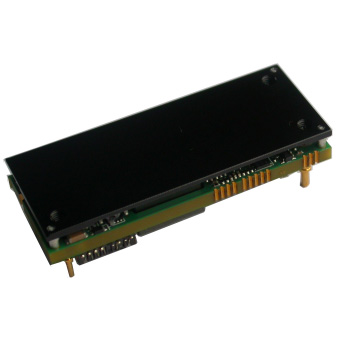

The 0RCY-D4T12x is an isolated DC-DC converter that operates from a nominal 48 Vdc source. This unit provides up to 240W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and low cost. Features include remote on/off, short circuit protection, over current protection, under voltage lockout and over-temperature protection. The converter is provided in an industry standard eighth brick package.
Features
  • I/O Isolation Voltage: 2250 V
  • Single
  • Type input Voltage: 48 V
Specifications
  • Power (W): 240
  • Input Voltage Range (VDC): 36 ~ 75
  • Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): -40 ~ +85
  • Dimensions L x W x H (mm): 58.42 x 22.86 x 12.19
  • Dimensions L x W x H (in): 2.3 x 0.9 x 0.48
  • Standard Footprint: 1/8 Brick
  • Isolation (VDC): 2250
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CSA, Nemko
  • RoHS Compliant: Yes
