VMS-300A Series

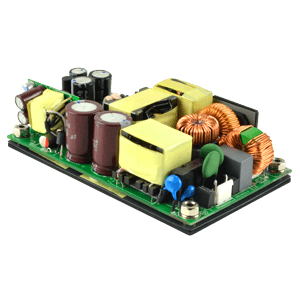

The VMS-300A series is a high density open frame AC-DC power supply certified to the medical 60601-1 edition 3.1 safety standards for 2 x MOPP applications and 4th edition EMC requirements. Packaged in an industry standard 3" x 5" footprint with high efficiency up to 94%, these medical power supplies are ideal for space-constrained medical and dental applications where reliability and regulatory compliance are major concerns.

Features

Remote sense
Remote on/off control
Industry standard 3” x 5” footprint
5 V auxiliary fan output
60601-1-2 4th edition EMC collateral standard approvals
Designed for 2 x MOPP applications
Power factor correction (PFC)

Specifications

Power (W): 300
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 12 ~ 48
Operating Temperature Range (ºC): -40 ~ +50
Cooling Type: Convection, Fan
Dimensions L x W x H (mm): 127 x 76.2 x 28.52
Dimensions L x W x H (in): 5 x 3 x 1.123
Safety Standards: 60601
Safety Approvals: CE, TUV, UL/cUL
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support

Loading more products . . .

Compatible Products

VMS-300A-CNF Series

The VMS-300A-CNF series is a high density metal enclosed AC-DC power supply certified to the medical 60601-1 edition 3.1 safety standards for 2 x MOPP applications and 4th edition EMC requirements. Packaged in an industry standard 3" x 5" footprint with high efficiency up to 94%, these medical power supplies are ideal for space-constrained medical and dental applications where reliability and regulatory compliance are major concerns.
