TLP5000 Series
4 Products
| Product | 3D Model | Power (W) | Input Voltage Range (VAC) | Output Voltage (VDC) | Output Current (A) | Mounting Type | Package | Dimensions L x W x H (mm) |
|---|---|---|---|---|---|---|---|---|

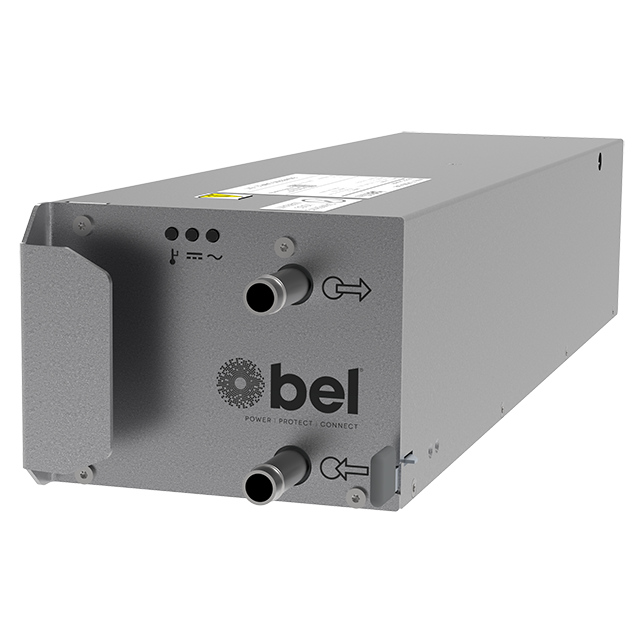

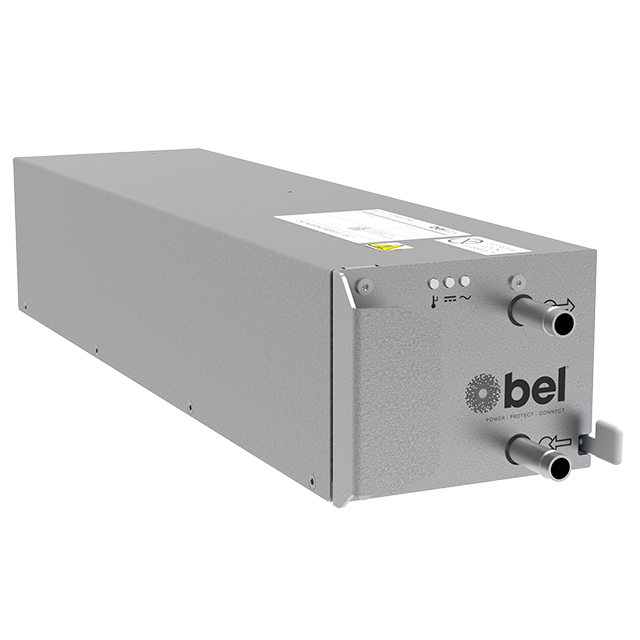

TLP5000-1048In stock
|
|
|
5000 | 350 ~ 528 | 48 | 105 | Chassis Mount | Enclosed | 401.3 x 110 x 84.6 |
TLS-0-48In stock
|
|
|
N/ |
N/ |
N/ |
N/ |
Chassis Mount | Enclosed | 464.5 x 195.2 x 120.5 |
TLS-1-48In stock
|
|
|
5000 | 350 ~ 528 | 48 | 105 | Chassis Mount | Enclosed | 464.5 x 195.2 x 120.5 |

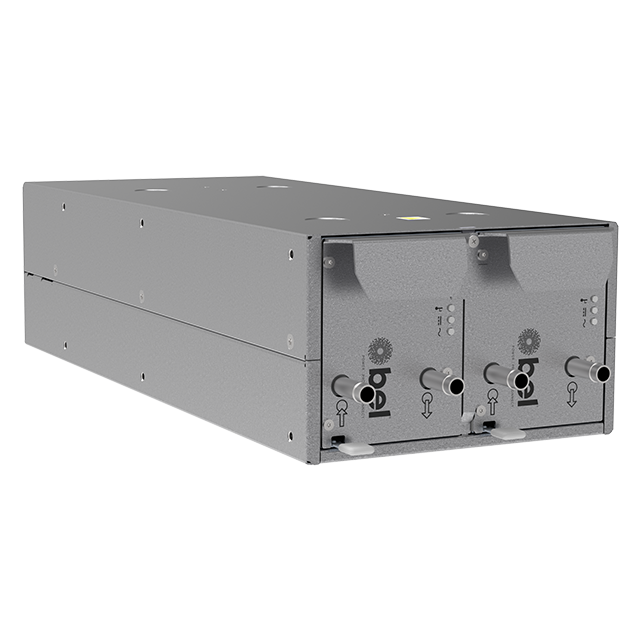

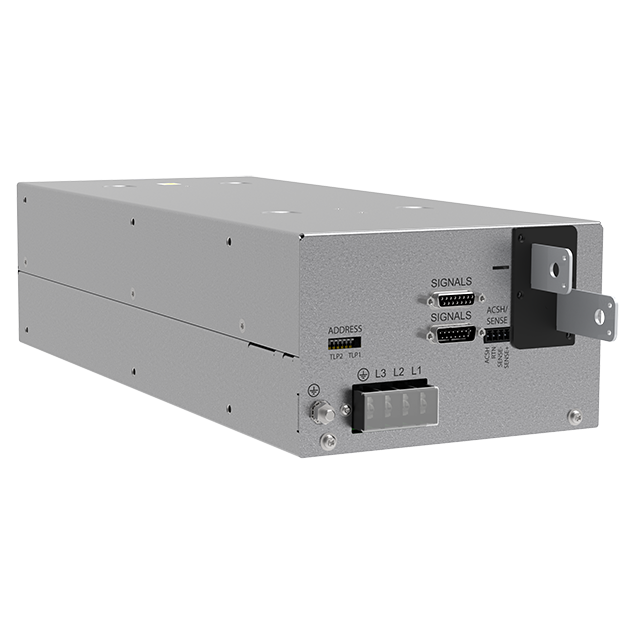

TLS-2-48In stock
|
|
|
10000 | 350 ~ 528 | 48 | 200 | Chassis Mount | Enclosed | 464.5 x 195.2 x 120.5 |
Loading more products . . .
Technical Resources & Documents
Drawings & Datasheets
Safety Certificates
EMC Compliance
Specifications
- Power (W): 5000 ~ 10000
- Input Voltage Range (VAC): 350 ~ 528
- Output Voltage (VDC): 48
- Adjustable Output Voltage (VDC): 39 ~ 57
- Operating Temperature Range (ºC): 0 ~ +70
- Cooling Type: Liquid
- Safety Standards: 62368
- Safety Approvals: CE, CSA, UL
- RoHS Compliant: Yes
Features
- CAN bus communication interface
- Active current sharing
- Integrated liquid cooling connected via standard fittings
- No fan = less acoustic noise
- The possibility to install in a dusty environment
- Simple heat transfer in liquid form
- Safety switch-off of DC output without breaker
- Simple units exchange in system due to hot-plug connectors
