3D View
TLS-1-48
High Power Industrial

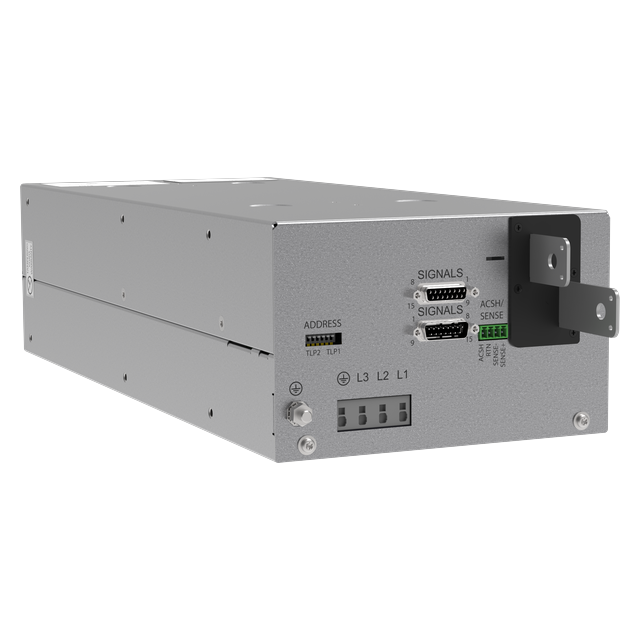

5 kW shelf populated with one TLP5000-1048 power supply and one panel blind XEF.20027.0, delivering a maximum output power of 5 kW at 48 V and 105 A.
Stock Check
Country - USA
Features & Specifications
| Power (W) | 5000 |
| Input Voltage Range (VAC) | 350 ~ 528 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 48 |
| Adjustable Output Voltage (VDC) | 39 ~ 57 |
| Output Current (A) | 105 |
| Operating Temperature Range (ºC) | 0 ~ +70 |
| Cooling Type | Liquid |
| Dimensions L x W x H (mm) | 464.5 x 195.2 x 120.5 |
| Dimensions L x W x H (in) | 18.29 x 7.69 x 4.74 |
| Mounting Type | Chassis Mount |
| Package | Enclosed |
| Market | Industrial |
| Safety Standards | 62368 |
| Safety Approvals | CE, CSA, UL |
| RoHS Compliant | Yes |
| Brand | Bel |
Compatible Products with TLS-1-48
Product Relationship
Related Products
TLP5000-1048
5000 W High Power Three-Phase AC-DC Power Supply, 48 VDC, 105 A Output, 350 ~ 528 VAC Input Range, Enclosed, Chassis Mount, Liquid Cooling
View Product
Option
TLS-0-48
Unpopulated shelf with two panel blinds XEF.20027.0 installed, ready to accommodate one or two TLP5000-1048 power supplies.
View Product
Option
TLS-2-48
10 kW shelf fully populated with two TLP5000-1048 power supplies, delivering a maximum output power of 10 kW at 50 V and 200 A.
