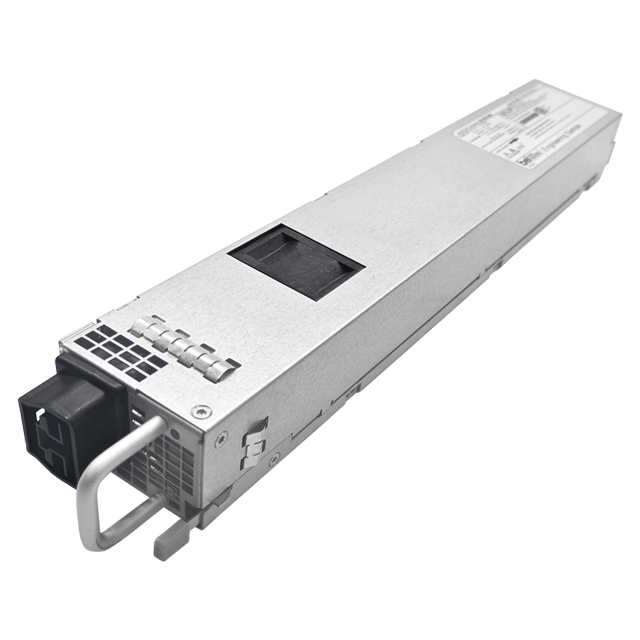

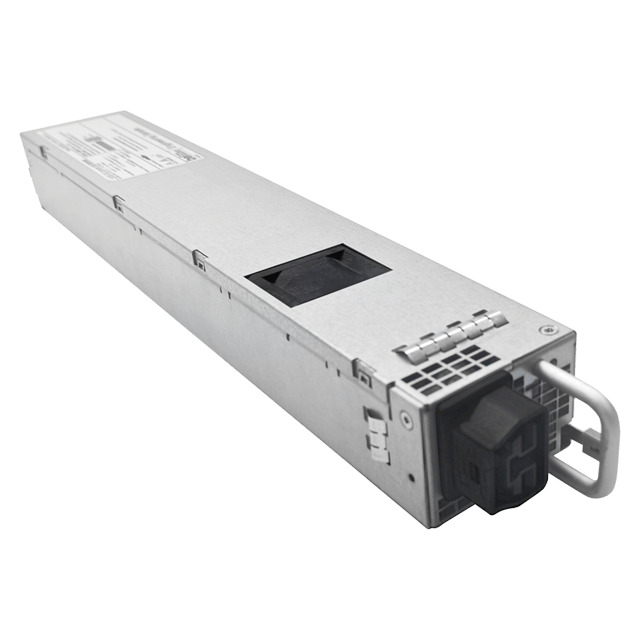

TET3000-12-054 (AC-DC/HVDC) Series

The TET3000 is a 3000W AC to DC power-factor-corrected (PFC) power supply that converts standard AC or HVDC power into a main output of 12.0 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET3000 Series meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • High Efficiency, 96% efficiency at half load
  • AC input with power factor correction
  • Hot-plug capable
  • Parallel operation with active analog current sharing
  • Digital controls for improved performance
  • High density design: 71 W/in3
  • Over temperature protection (OTP)
  • Over voltage protection (OVP)
  • Over current protection (OCP)
  • 256 Bytes of EEPROM for user information
  • Black Box recorder available
  • Status LED with fault signaling
  • I2C communication interface for control, programming and monitoring with Power Management Bus Protocol
Specifications
  • Power (W): 3000
  • Input Voltage Range (VAC): 90-264, 90-305
  • Input Voltage Range (HVDC): 180- 350, 180- 400
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 5 ~ 12
  • Operating Temperature Range (ºC): -5 ~ +65
  • Cooling Type: Fan
  • Dimensions L x W x H (mm): 321.5 x 54.5 x 40
  • Dimensions L x W x H (in): 12.66 x 2.14 x 1.57
  • Safety Standards: 62368
  • Safety Approvals: BSMI, CB, CQC, CSA, Nemko
  • RoHS Compliant: Yes
