PSK-5E Series

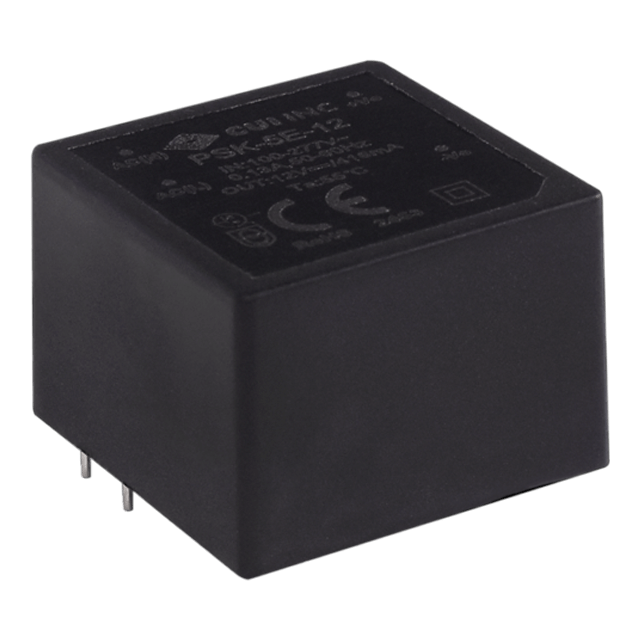

The PSK-5E series is a family of Encapsulated AC-DC power supplies. Outputting 5W power, these modules feature a universal 85-305 Vac input voltage range and a wide operating temperature range of -40 to 85°C, making them ideal for rugged and demanding applications.
Features
  • Class B emissions (EN55032/CISPR) with application circuit
  • Isolation voltage 4,000 Vac
  • Short circuit and over current protection
  • Input under voltage protection
  • Class II
  • OVC III
  • Low stand-by power consumption (<0.1 W)
  • 2,000 m operating altitude
Specifications
  • Power (W): 5
  • Input Voltage Range (VAC): 85 ~ 305
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +85
  • Cooling Type: Convection
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
