PSK-4 Series

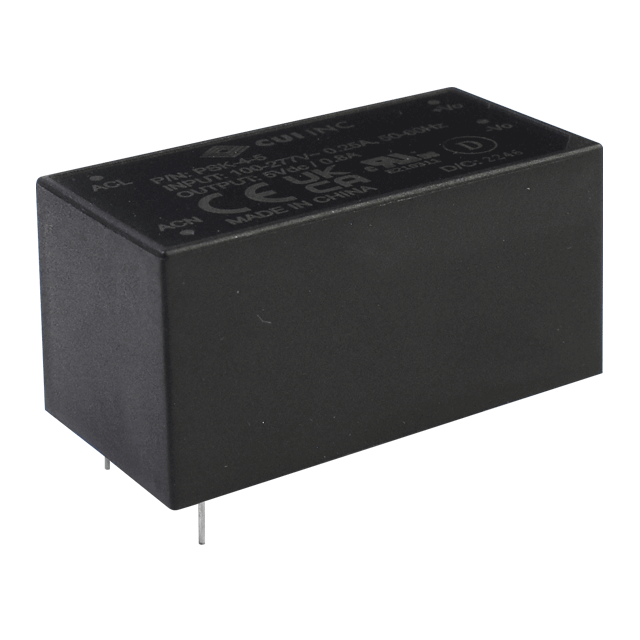

The PSK-4 series is a family of encapsulated AC-DC power supplies housed in a compact, board mount package. With 4 W of continuous power, these single output, encapsulated modules feature efficiency up to 82% and a wide operating temperature range from -40ºC ~ 80ºC. They are ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.
Features
  • High efficiency up to 82%
  • No load power (<0.075 W)
  • Certified to IEC/EN/UL 62368-1
  • Designed to meet IEC/EN 60335-1
  • Operating altitude up to 5,000 m
  • Class B emissions (EN55032/CISPR)
  • OVC II and OVC III
  • Short circuit protection (SCP)
  • Over current protection (OCP)
  • Over voltage protection (OVP)
Specifications
  • Power (W): 4
  • Input Voltage Range (VAC): 85 ~ 305
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +80
  • Cooling Type: Convection
  • Dimensions L x W x H (mm): 41.1 x 21 x 20
  • Dimensions L x W x H (in): 1.62 x 0.83 x 0.787
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
