MFLS250 Series
MFLS250 Series

MFLS250 Series

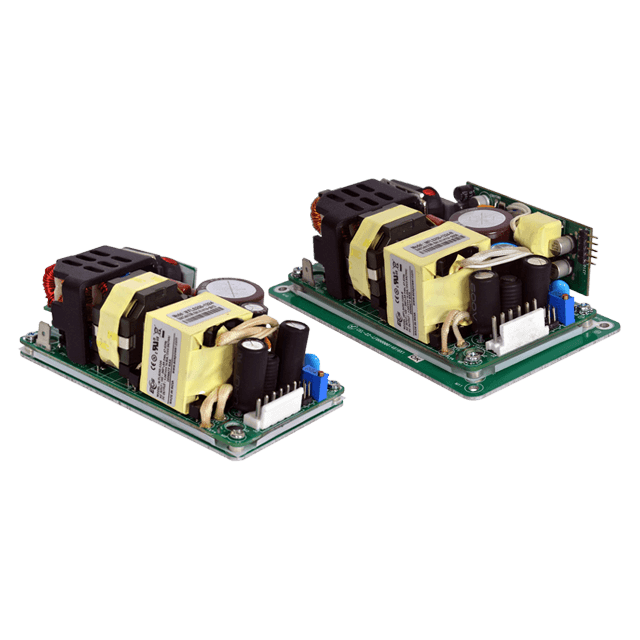

The New MFLS250 series is true fanless power up to 250W. This is a highly efficient power supply that can deliver up to 350W with air. The power supply is packed in a 4.5’ x 2.5’ size, while also having the industry-standard “2 x 4” or “3 x 5” mounting option. Also available in various types of casing options. Made In India Image
Features
  • High power density: 20.74W/inch3
  • Meets EN60601-1-2, 4th edition
  • 2.56m hours, Telcordia -SR332-issue 3 MTBF
  • No load power < 1W
  • Suitable for BF applications
  • Available with metal enclosures/accessories
  • Cover Kit, Cover Kit with Fan, L-bracket, Open Frame, U-Channel package options avaliable
Specifications
  • Power (W): 216 ~ 350
  • Input Voltage Range (VAC): 85 ~ 264
  • Output Voltage (VDC): 12 ~ 58
  • Operating Temperature Range (ºC): -40 ~ +70
  • Cooling Type: Fan
  • Safety Standards: 60601
  • Safety Approvals: CB, CE, Nemko, UL
  • RoHS Compliant: Yes
