MBS601 Series

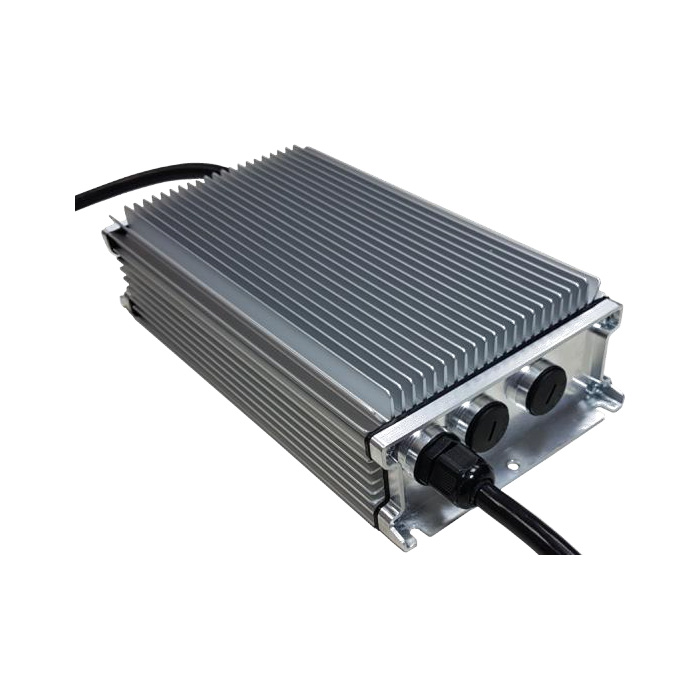

The MBS601 Series of AC-DC power supplies provides up to 600 W of regulated output power through a wide input voltage range 85 - 305 VAC in a single output of 24 VDC or 48 VDC. The MBS601 Series comes in a 4.92 x 9.86 x 2.36 inch form factor with a full set of protection features. The MBS601 Series is available in an aluminium extruded chassis having fins for an optimal heat dispersion via natural convection. The input / output connections are fixed to the chassis through water tight glands, which combined with the sealed enclosure, give the power supply an IP66/67/68 ingress protection grade. The MBS601 Series complies with the latest edition of the IEC/EN 60601-1 safety standards for medical equipment requiring 2x MoPP protection grade and displays the CE Mark for the European Low Voltage Directive (LVD).

Part Numbers

Specifications & Features

Technical Documents

Technical Support

Loading more products . . .

Compatible Products with MBS601 Series

Option

MBS400 Series

The MBS400 Series of AC-DC power supplies provides up to 400 W of regulated output power through wide input voltage range 90 – 264 VAC in single outputs of 12, 24, 36 or 48 VDC. The MBS400 Series comes in a 83.0 x 212.0 x 42.0 mm form factor, offering 12 and 5 VSB standby outputs and a full set of protection features. Available control signals include Power Good (Power_OK), remote On/off (PS_ON) and remote sense (+RS). The sealed and full potted package allows an IP67 ingress protection index and can be installed in contact with thermo-conductive part of the system to transfer heat by conduction. The MBS400 Series complies with the latest international safety standards for medical equipment, offering 2x MoPP protection grade and displays the CE-Mark for the European Low Voltage Directive (LVD).
