Discontinued

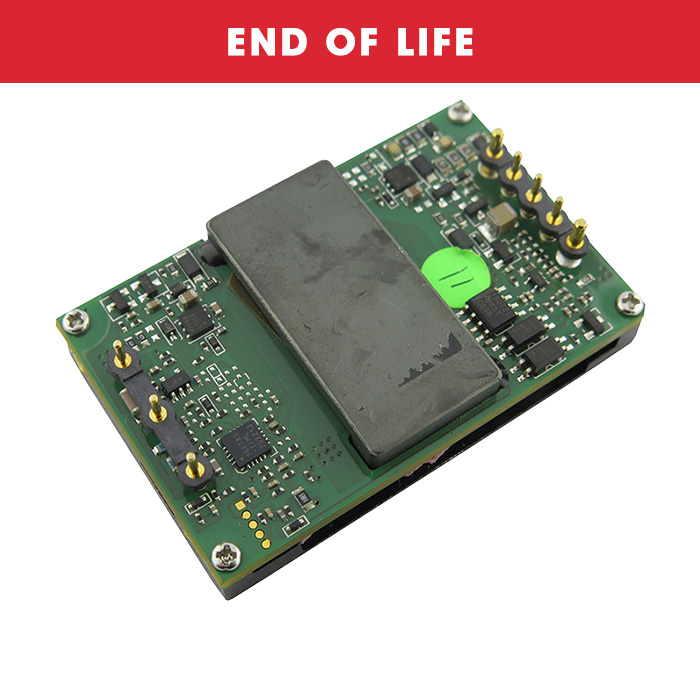

0RQB-C5U12 Series
Recommended Replacements

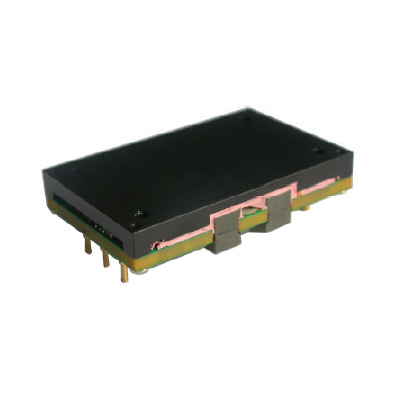

0RQB-D0U12 Series
The 0RQB-D0U12x is an isolated DC-DC converter that operate from a nominal 48V source. This unit will provide up to 204 W of output power from a nominal 24V or 48V input. This unit is designed to be highly efficient and low cost. Features include remote on/off, over current protection and overvoltage protection. The converter is provided in an industry standard quarter brick package.
View Product
Specifications
- Power (W): 144
- Input Voltage Range (VDC): 18 ~ 75
- Output Voltage (VDC): 12
- Operating Temperature Range (ºC): -40 ~ +85
- Standard Footprint: 1/4 Brick
- Isolation (VDC): 1500
- Isolated: Yes
- Safety Standards: 62368
- Safety Approvals: CB, CSA, Nemko
- RoHS Compliant: Yes
