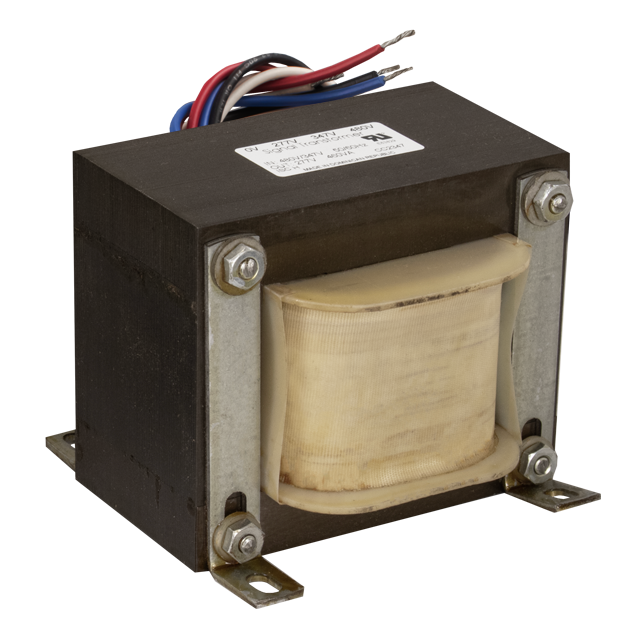

BL-0460T Autotransformers
Autotransformer for Lighting Applications, 460 VA, 480 V / 347 V Primary, 277 V Secondary
Stock Check
Country - USA
Features & Specifications
| Power (VA) | 460 |
| RoHS Compliant | Yes |
| Voltage - Primary (V) | 347/480 |
| Brand | Signal Transformer |
| Voltage - Secondary (V) | 277 |
| Frequency (Hz) | 50/60 |
| Mounting Type | Chassis Mount |
| Insulation Class | Class B, 130ºC |
| Length in (mm) | 3.31 (84.074) |
| Weight lbs (kg) | 7.2 (3.26) |
| Width in (mm) | 3.8 (96.52) |
| Height in (mm) | 3.35 (85.09) |
Compatible Products with BL-0460T
Option
BL-0245T
Autotransformer for Lighting Applications, 245 VA, 480 V / 347 V Primary, 277 / 240 V Secondary
View Product
