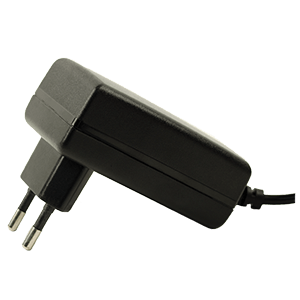

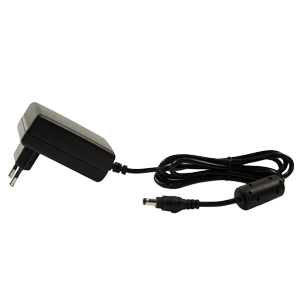

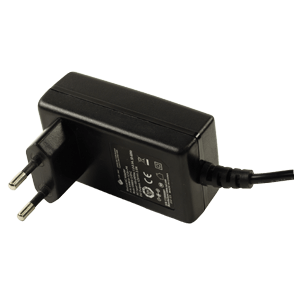

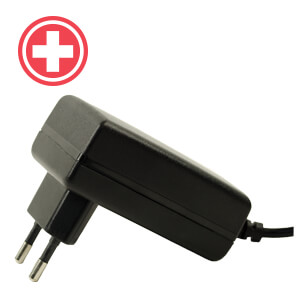

SWM30-12-EV Model Series
1 Products
| Product | 3D Model | Power (W) | Input Voltage Range (VAC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Efficiency Standards | Blade Region | Blade Type |
|---|---|---|---|---|---|---|---|---|---|
SWM30-12-EV-P5In stock
|
|
|
36 | 90 ~ 264 | 12 | 3 | 0 ~ +40 | Level VI | Europe | Fixed Blade |
Loading more products . . .
Technical Resources & Documents
Drawings & Datasheets
Safety Certificates
Tech Resources
Specifications
- Power (W): 36
- Output Voltage (VDC): 12
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40
- Blade Region: Europe
- Blade Type: Fixed Blade
- Safety Standards: 60601
- Safety Approvals: CE, TUV
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
Features
- No-load power consumption < 0.075 W
- 60601-1-2 4th edition EMC collateral standard approvals
- Designed for 2 x MOPP applications
