New Product

SWI6D-E Series

The SWI6D-E series delivers reliable 6W AC-DC power in a compact, fixed Europe plug adapter. Engineered for modern ITE and AV equipment, it meets strict Ecodesign 2019/1782 and CoC Tier 2 efficiency and IEC 62368-1 safety standards. With universal input, low standby power (<0.1W), and robust protections, the SWI6D-E is Bel’s go-to solution for efficient, compliant European power.
Features
  • Ecodesign 2019/1782 and CoC Tier 2
  • No load power consumption < 0.1 W
  • Universal input voltage range
  • Over current protection (OCP)
  • Short circuit protection (SCP)
  • CE safety approval
  • Certified to IEC 62368-1
  • Custom designs available

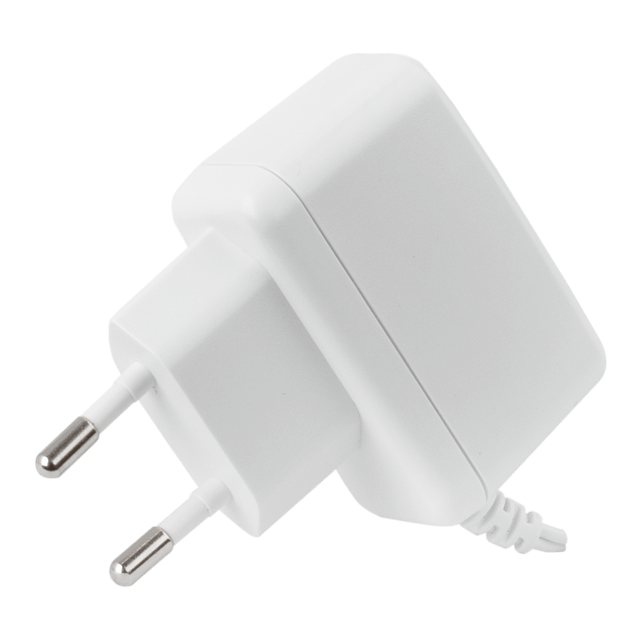

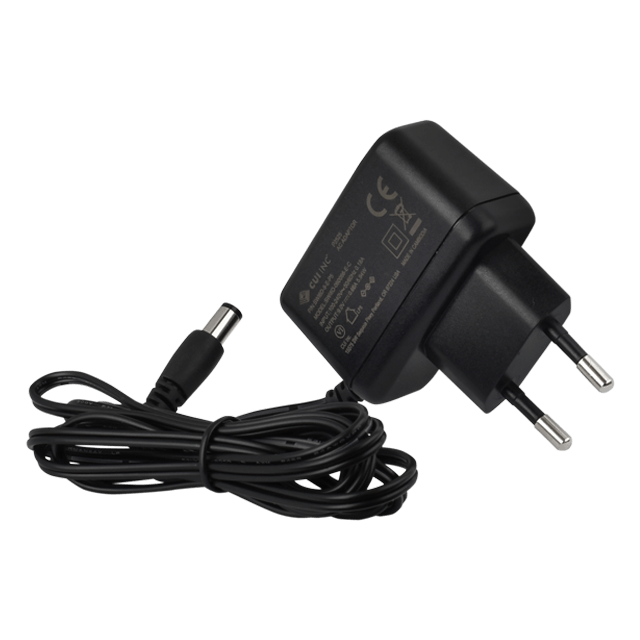

  • Black and White options available
Specifications
  • Power (W): 5 ~ 6
  • Output Voltage (VDC): 5 ~ 12
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +50
  • Dimensions L x W x H (in): 2.16 x 1.39 x 0.94
  • Dimensions L x W x H (mm): 55.1 x 35.49 x 24.1
  • Blade Region: Europe
  • DC Plug Type: Barrel Plug
  • Safety Standards: 62368
  • Safety Approvals: CE
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
