New Product

SWI6D-B Series

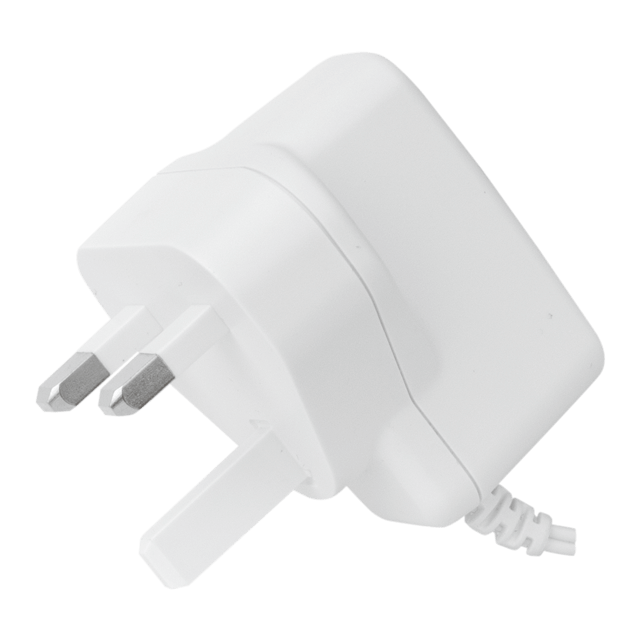

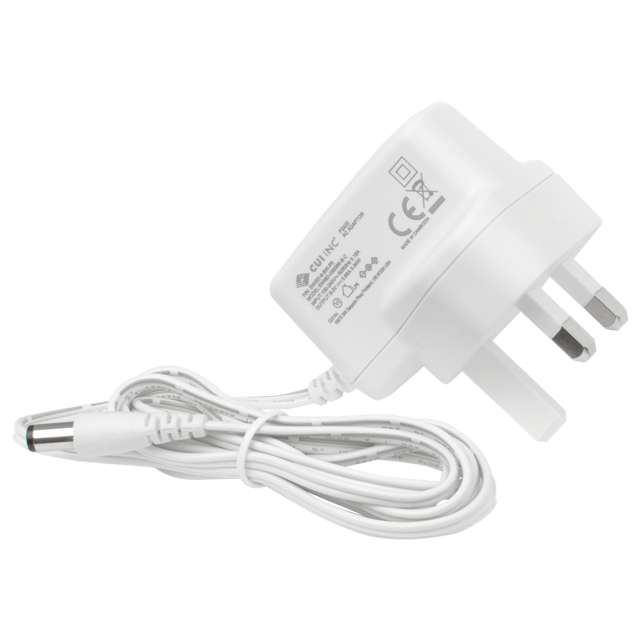

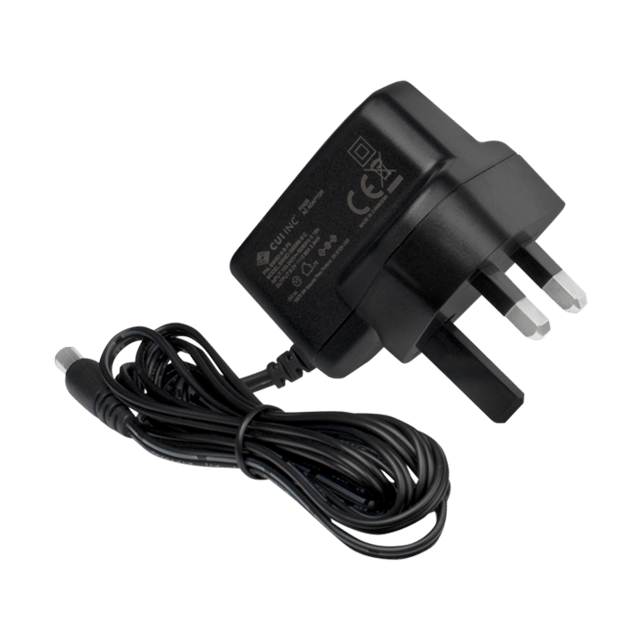

The SWI6D-B series is a compact 6W AC-DC wall adapter with a fixed UK plug, engineered for ITE and AV applications. It delivers high efficiency meeting Ecodesign 2019/1782, and CoC Tier 2 standards, features universal input (90–264 VAC), and offers robust overcurrent and short circuit protection. Certified to CE, UKCA, and IEC 62368-1, the SWI6D-B is Bel’s trusted solution for reliable, energy-efficient UK power.
Features
  • Ecodesign 2019/1782 and CoC Tier 2
  • No load power consumption < 0.1 W
  • Universal input voltage range
  • Over current protection (OCP)
  • Short circuit protection (SCP)
  • CE & UKCA safety approval
  • Certified to IEC 62368-1
  • Custom designs available
  • Black and White options available
Specifications
  • Power (W): 5 ~ 6
  • Output Voltage (VDC): 5 ~ 12
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +50
  • Dimensions L x W x H (in): 2.16 x 1.94 x 1.64
  • Dimensions L x W x H (mm): 55.1 x 49.5 x 42.49
  • Blade Region: United Kingdom
  • DC Plug Type: Barrel Plug
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
