SWI6AD-B Series

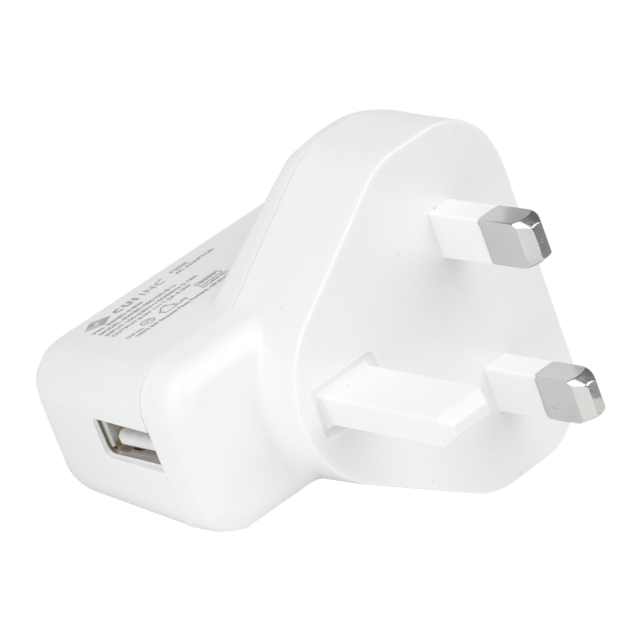

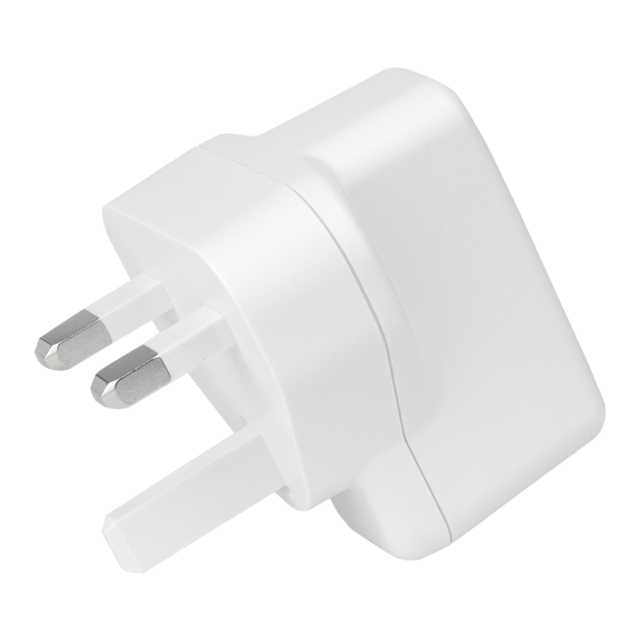

The SWI6AD-B series delivers reliable 5W power in a compact UK wall plug design—ideal for ITE and AV equipment. Featuring a universal input range and an integrated USB-A port (5V/1A), it offers convenient charging for a wide range of devices. Engineered for efficiency and safety, the SWI6AD-B meets Ecodesign 2019/1782, CoC Tier 2 standards, is certified to BS EN 62368-1, and boasts robust protections against overcurrent and short circuit events. With low no-load power consumption and a sleek, space-saving form factor, it’s a smart choice for modern UK power needs.
Features
  • UK fixed blade power supply
  • USB-A receptacle 5V/1A
  • Universal input voltage range
  • No load power consumption < 0.1 W
  • Over current protection (OCP)
  • Short circuit protection (SCP)
  • Certified to BS EN 62368-1
  • Custom designs available

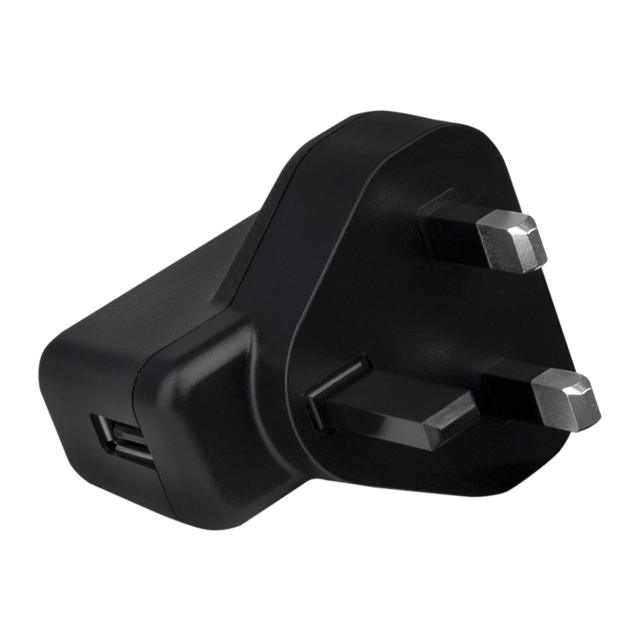

  • Black and White options available
Specifications
  • Power (W): 5
  • Output Voltage (VDC): 5
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +50
  • Dimensions L x W x H (in): 2.16 x 1.94 x 1.67
  • Dimensions L x W x H (mm): 55.1 x 49.5 x 42.49
  • Blade Region: United Kingdom
  • DC Plug Type: USB Type A
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
