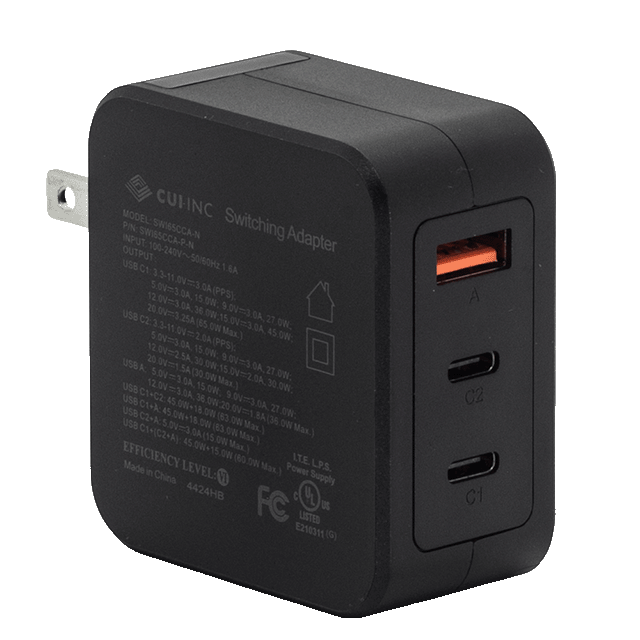

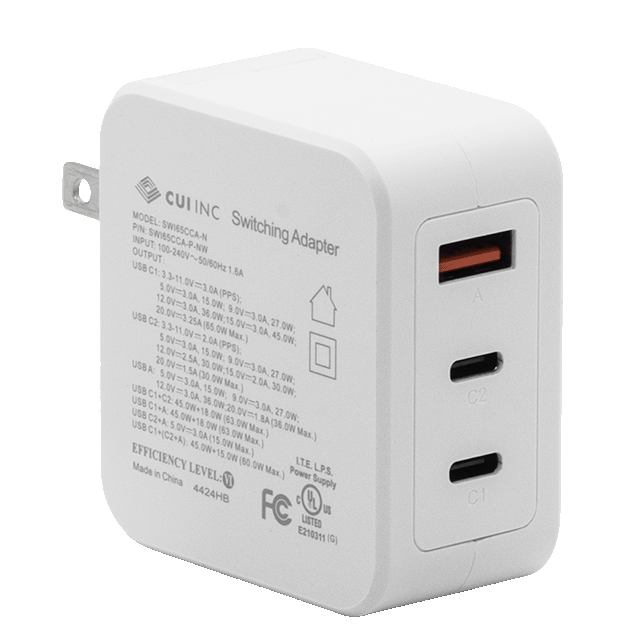

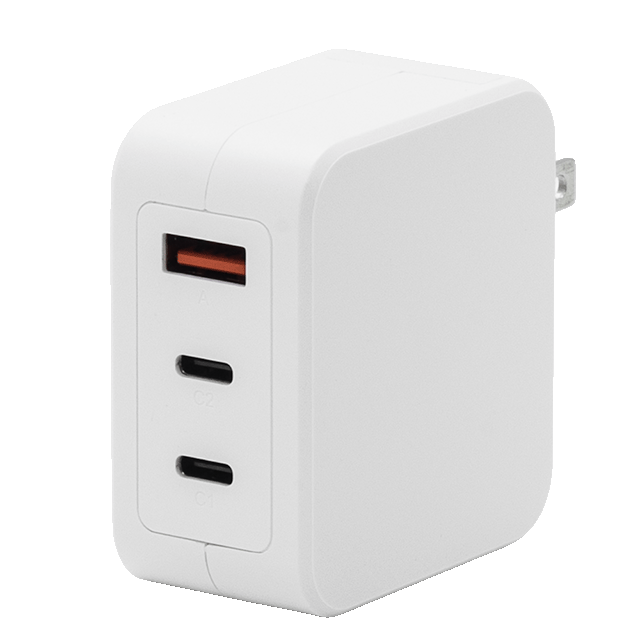

SWI65CCA-N Series

The SWI65CCA-N series is a 65W AC-DC USB wall power supply featuring a North American fixed flip blade, two USB-C ports, and one USB-A port. It supports USB PD3.0 (PPS) and QC4.0+, meets Level VI efficiency standards, and is certified to the 62368-1 ICT/AV safety standard. This adapter extends Bel’s commitment to providing advanced North American power solutions for ITE equipment.

Features

3-port USB quick charger with US flip blade
USB-C ports 65W/30W, complaint with QC4.0+, AFC, FCP, BC1.2 DCP
USB-A port 36W, compliant with QC2.0/3.0, AFC, FCP, BC1.2 DCP
Customization available

Specifications

Power (W): 65
Output Voltage (VDC): 5 ~ 20
Input Voltage Range (VAC): 90 ~ 264
Operating Temperature Range (ºC): 0 ~ +40
Dimensions L x W x H (in): 2.4 x 2.2 x 1.22
Dimensions L x W x H (mm): 61 x 56 x 31
Blade Region: North America
DC Plug Type: USB Type A, USB Type C
Safety Standards: 62368
Safety Approvals: FCC, UL/cUL
Protections: Over Current, Short Circuit
RoHS Compliant: Yes
