New Product

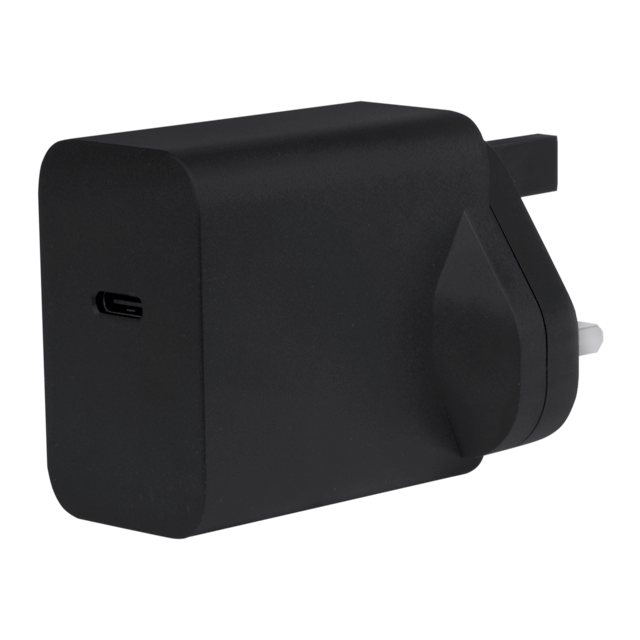

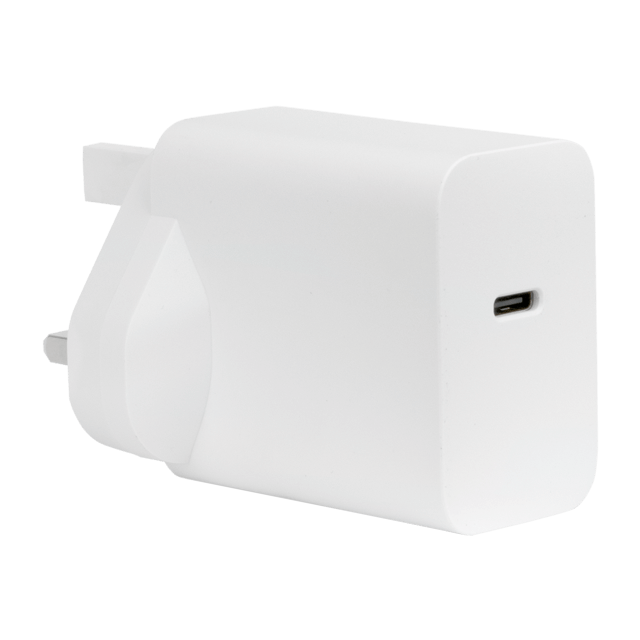

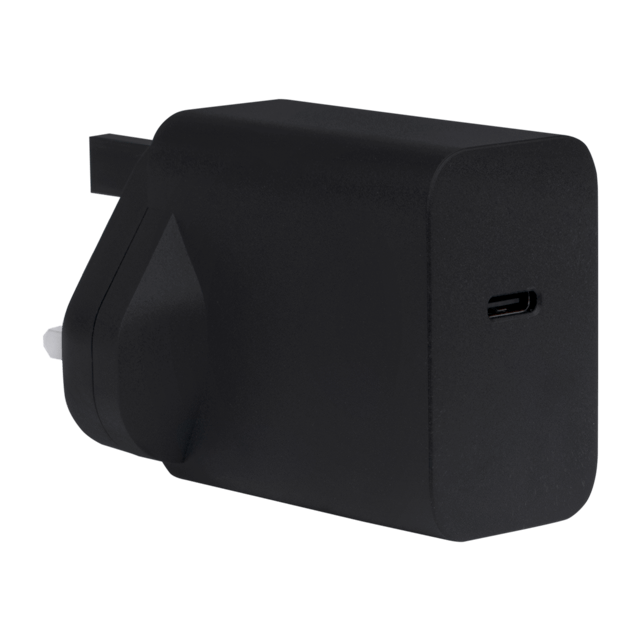

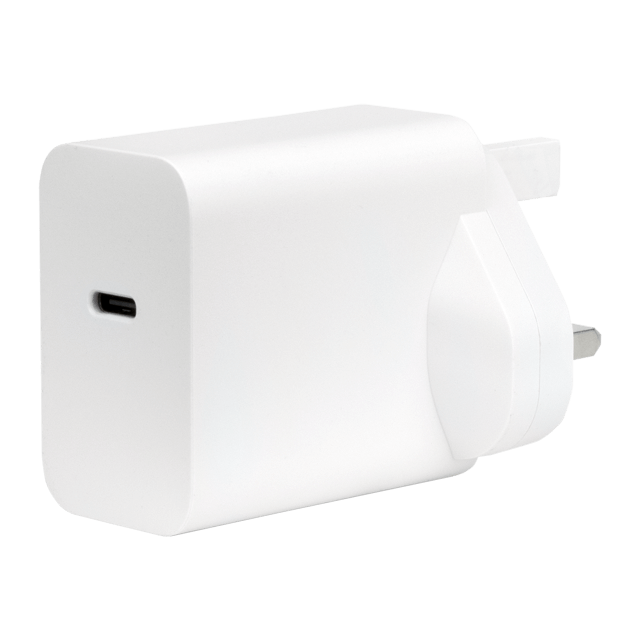

SWI45C-B Series

The SWI45C-B Series is a compact, high-efficiency AC-DC power supply family designed to deliver up to 45 W continuous output with universal input compatibility and advanced USB Power Delivery (PD) 3.0 support. Certified to EN62368-1 standards, these power supplies are engineered for versatility and reliability, making them ideal for consumer electronics, industrial devices, and USB Type-C powered applications.
Features
  • Integrated USB Type C receptacle
  • USB Power Delivery (PD) 3.0 compliant
  • Over current protection (OCP)
  • Short circuit protection (SCP)
  • Over voltage protection (OVP)
  • Customization available
Specifications
  • Power (W): 45
  • Output Voltage (VDC): 5 ~ 20
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40
  • Dimensions L x W x H (in): 2.07 x 1.9 x 1.14
  • Dimensions L x W x H (mm): 52.8 x 48.4 x 29
  • Blade Type: Fixed Blade
  • DC Plug Type: USB Type C
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization
