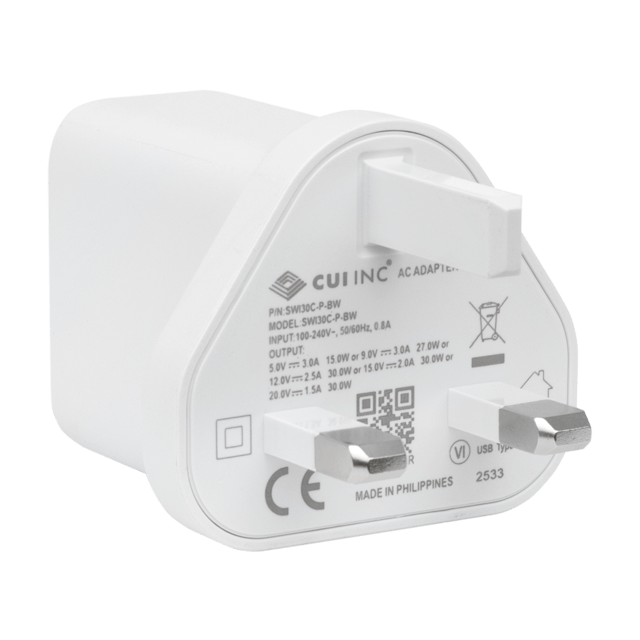

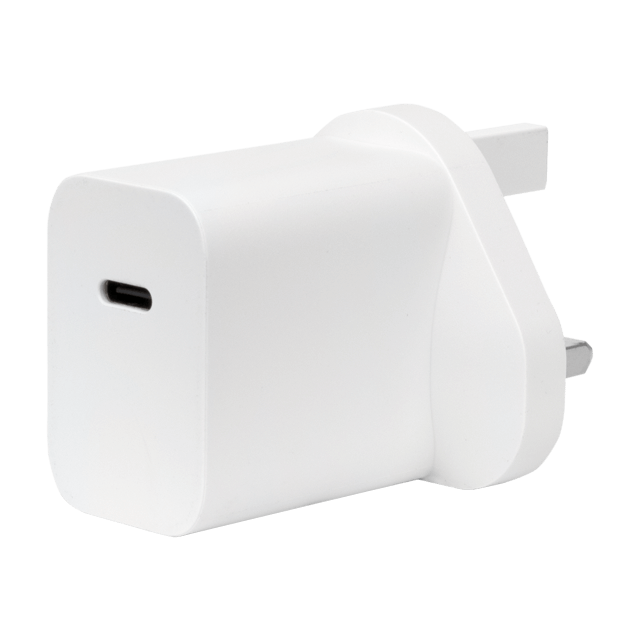

SWI30C-B Series
2 Products
| Product | Power (W) | Input Voltage Range (VAC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Efficiency Standards | Blade Region | Blade Type | Market |
|---|---|---|---|---|---|---|---|---|---|
SWI30C1-P-BIn stock
|
|
30 | 90 ~ 264 | 5, 9, 12, 15, 20 | 1.6, 2.1, 2.6, 3.1 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
United Kingdom | Fixed Blade | ITE |
SWI30C1-P-BWIn stock
|
|
30 | 90 ~ 264 | 5, 9, 12, 15, 20 | 1.6, 2.1, 2.6, 3.1 | 0 ~ +40 |
CoC Tier 2, EU 2019/ |
United Kingdom | Fixed Blade | ITE |
Loading more products . . .
Technical Resources & Documents
Drawings & Datasheets
Safety Certificates
Tech Resources
Specifications
- Power (W): 30
- Output Voltage (VDC): 5 ~ 20
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40
- Dimensions L x W x H (in): 1.85 x 1.53 x 1.02
- Dimensions L x W x H (mm): 47 x 39 x 26.1
- Blade Type: Fixed Blade
- DC Plug Type: USB Type C
- Safety Standards: 62368
- Safety Approvals: CE, UKCA
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
Features
- Integrated USB Type C receptacle
- USB Power Delivery (PD) 3.0 compliant
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Customization available

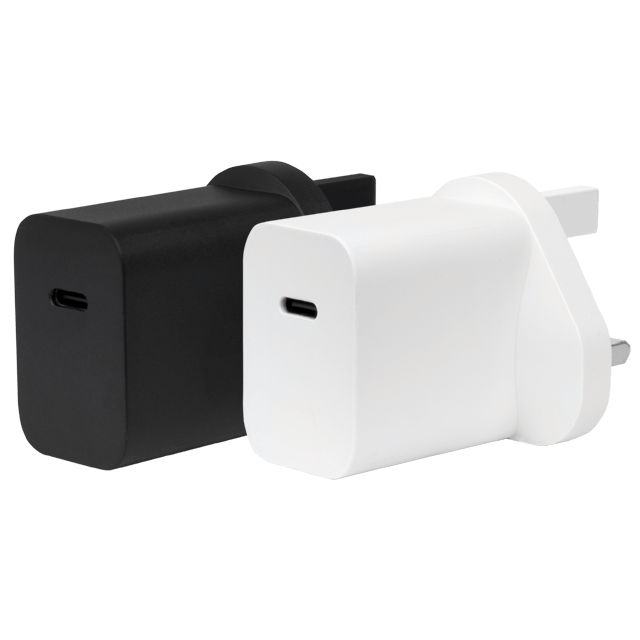

- Black and White options available
