SWI24-SC Series
SWI24-SC Series
SWI24-SC Series
SWI24-SC Series

SWI24-SC Series

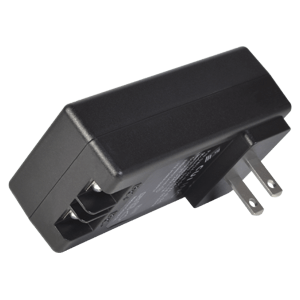

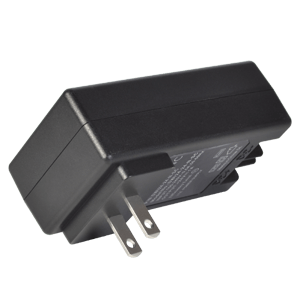

The 24 W SWI24 US wall power adapter series features screw terminal connections for applications that require flexibility beyond the standard 5 ft dc cord. Additionally, the SWI24 meets Level VI efficiency standards, keeping users one step ahead of the more stringent US regulations on external adapters that went into effect in 2016.
Features

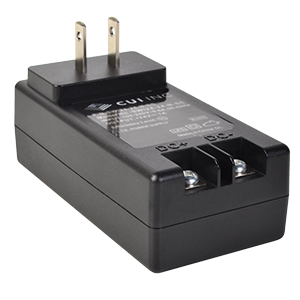

  • Screw terminals
  • No-load power consumption < 0.1 W
  • Limited Power Source (LPS) rated
Specifications
  • Power (W): 24
  • Output Voltage (VDC): 12 ~ 24
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40
  • Blade Region: North America
  • Safety Standards: 60950, UL1310
  • Safety Approvals: FCC, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization
