SWI20CB-N Series

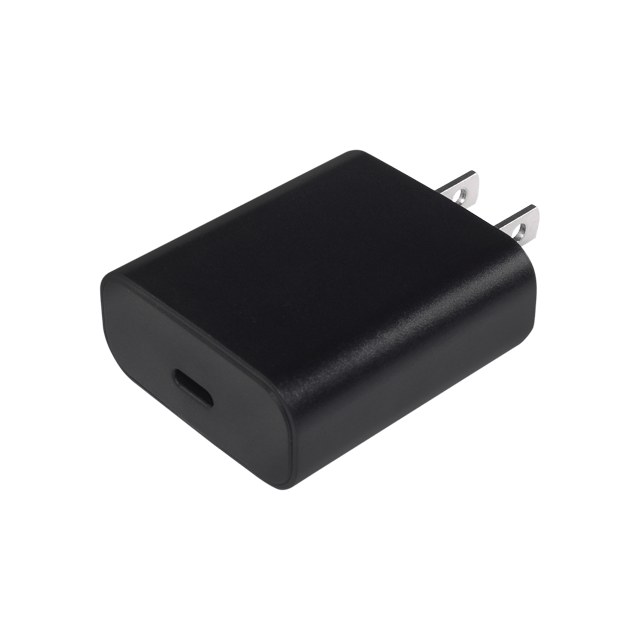

The SWI20CB-N series is a compact 20W AC-DC wall adapter with a US fixed blade plug, engineered for North American ITE and AV devices. Featuring an integrated USB Type-C port with USB Power Delivery (PD), it supports fast, flexible charging at 5V, 9V, and 12V outputs. The SWI20CB-N meets Level VI efficiency standards, is certified to cUL/UL, FCC, and includes advanced protections for safe, reliable performance.

Features

Universal input voltage range
US fixed blade input
Integrated USB Type C receptacle
USB Power Delivery (PD)
Over current protection (OCP)
Short circuit protection (SCP)
Over voltage protection (OVP)
Customization available

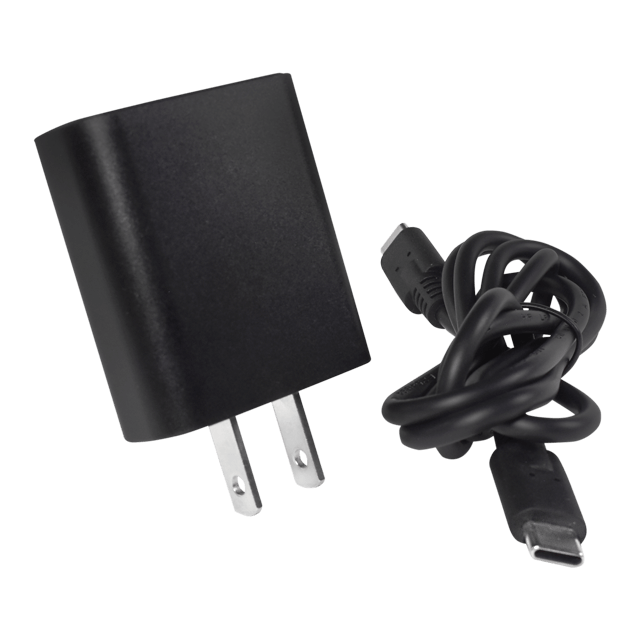

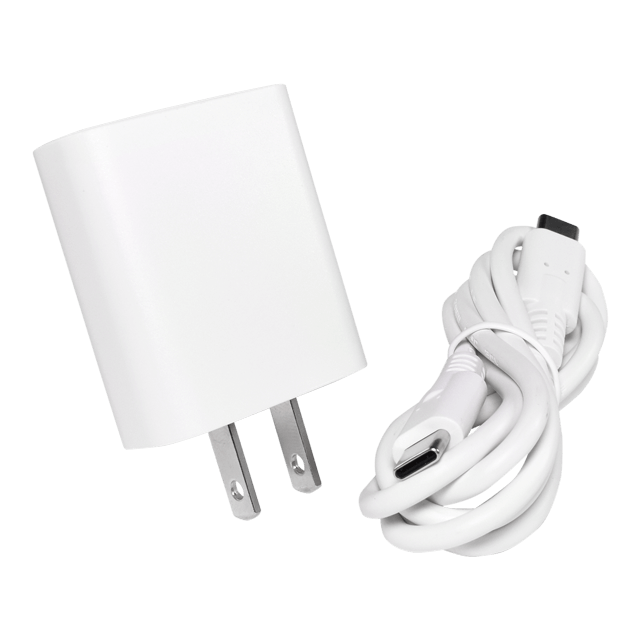

Black and White options available

Specifications

Power (W): 20
Output Voltage (VDC): 5 ~ 12
Input Voltage Range (VAC): 90 ~ 264
Operating Temperature Range (ºC): 0 ~ +40
Dimensions L x W x H (in): 3 x 0.78 x 1.69
Dimensions L x W x H (mm): 76.5 x 20 x 43
Blade Region: North America
Blade Type: Fixed Blade
DC Plug Type: USB Type C
Safety Standards: 62368
Safety Approvals: FCC, ICES, UL/cUL
Protections: Over Current, Over Voltage, Short Circuit
RoHS Compliant: Yes
