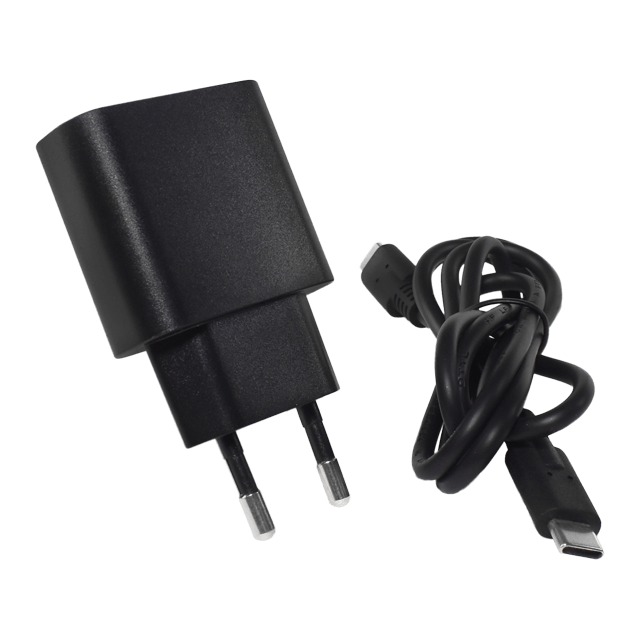

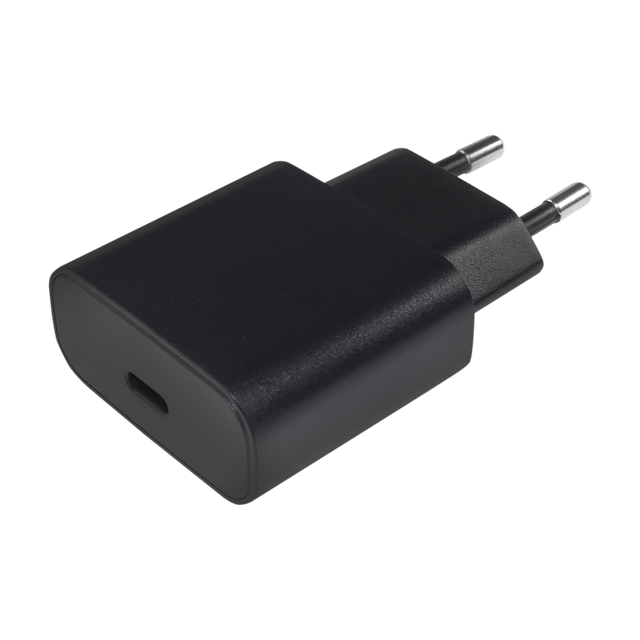

SWI20CB-E Model Series
Specifications
- Power (W): 20
- Output Voltage (VDC): 5 ~ 12
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40
- Dimensions L x W x H (in): 3 x 0.78 x 1.69
- Dimensions L x W x H (mm): 76.5 x 20 x 43
- Blade Region: Europe
- Blade Type: Fixed Blade
- DC Plug Type: USB Type C
- Safety Standards: 62368
- Safety Approvals: CE
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
Features
- Universal input voltage range
- European fixed blade input
- Integrated USB Type C receptacle
- USB Power Delivery (PD)
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Customization available

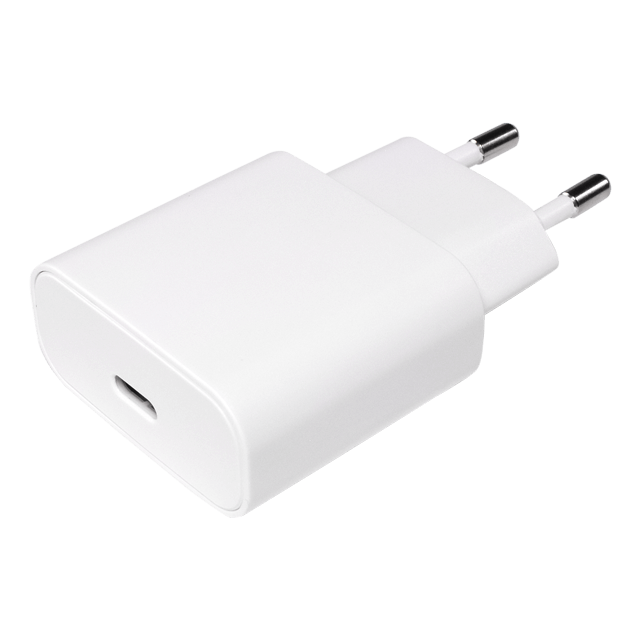

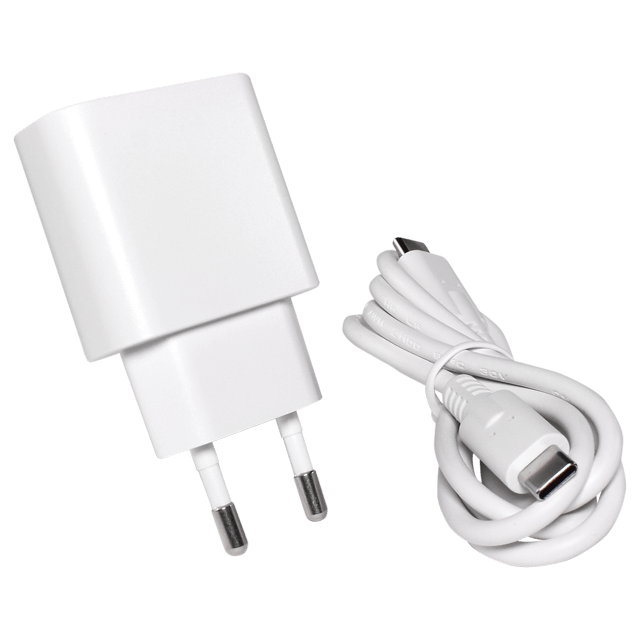

- Black and White options available
