SWI12B-N Series

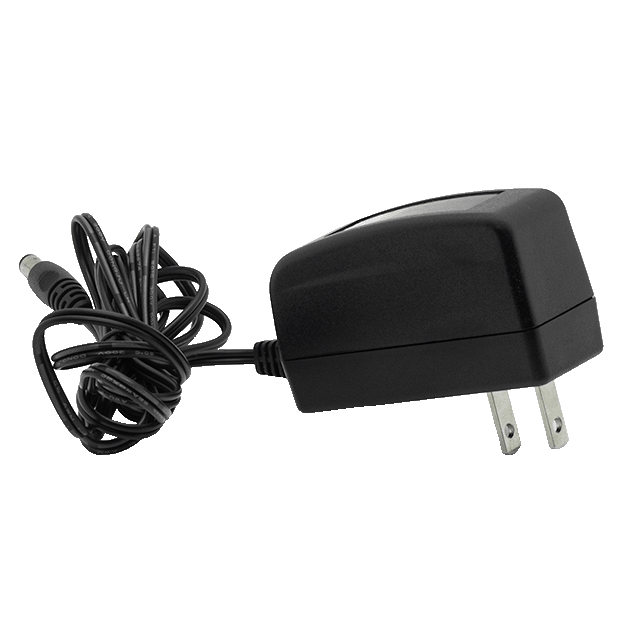

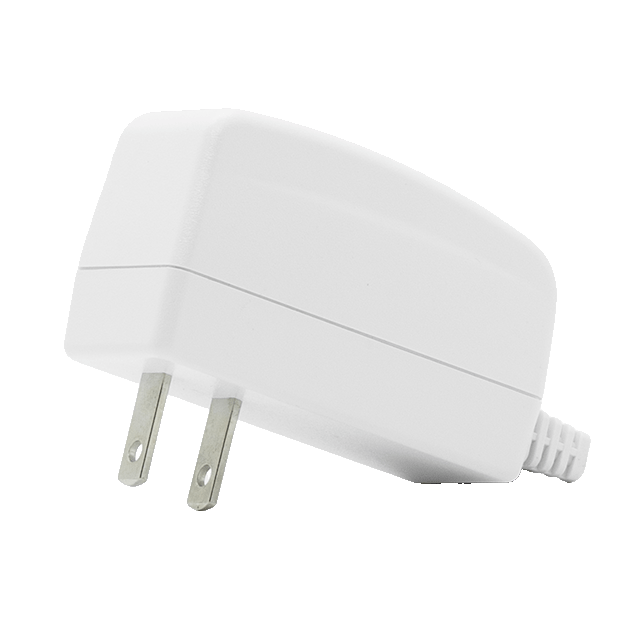

The SWI12B-N series is a 12W wall plug-in AC-DC power supply with a US blade and designed to meet Level VI efficiency standards. It is certified to the 62368-1 ICT/AV's safety standard and is a continuation of Bel's initiative to provide customers with North America solutions for ITE equipment.

Specifications

Power (W): 10 ~ 12
Output Voltage (VDC): 5 ~ 24
Input Voltage Range (VAC): 90 ~ 264
Operating Temperature Range (ºC): 0 ~ +50
Dimensions L x W x H (in): 2.75 x 1.17 x 2.29
Dimensions L x W x H (mm): 70 x 29.8 x 58.3
Blade Region: North America
DC Plug Type: Barrel Plug
Safety Standards: 62368
Safety Approvals: FCC, UL/cUL
Protections: Over Current, Over Voltage, Short Circuit
RoHS Compliant: Yes
