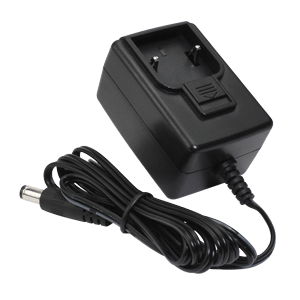

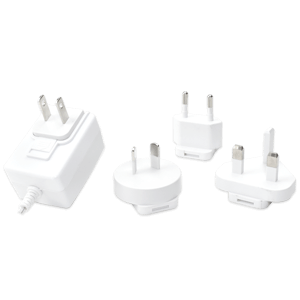

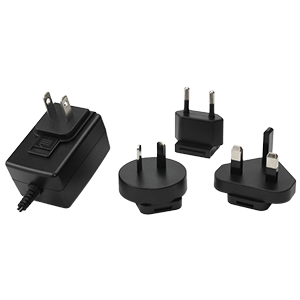

The SMM12 series is a 12 W medical wall plug-in ac-dc power supply with interchangeable ac blades. The series is certified to the medical 60601 safety standards for MOPP applications. Built for global use, these adapters include plug options for North America, Europe, the United Kingdom, and Australia.
Features

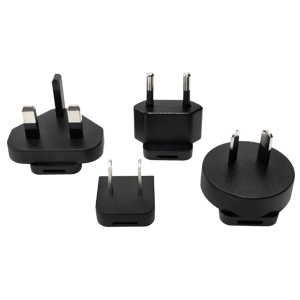

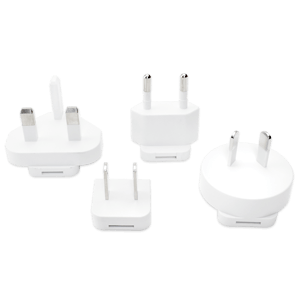

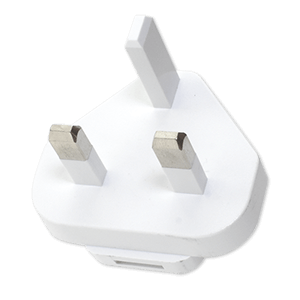

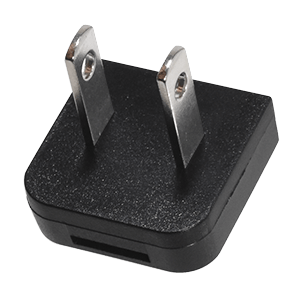

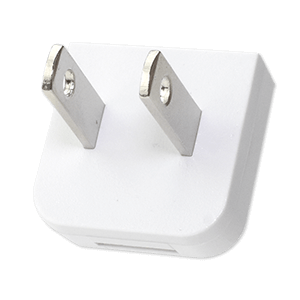

  • Interchangeable Ac blades for global use
  • Designed for MOPP applications
Specifications
  • Power (W): 12
  • Output Voltage (VDC): 5 ~ 24
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40
  • Blade Region: No Blade
  • Safety Standards: 60601, 60950
  • Safety Approvals: CE, FCC, PSE, TUV, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization
