New Product

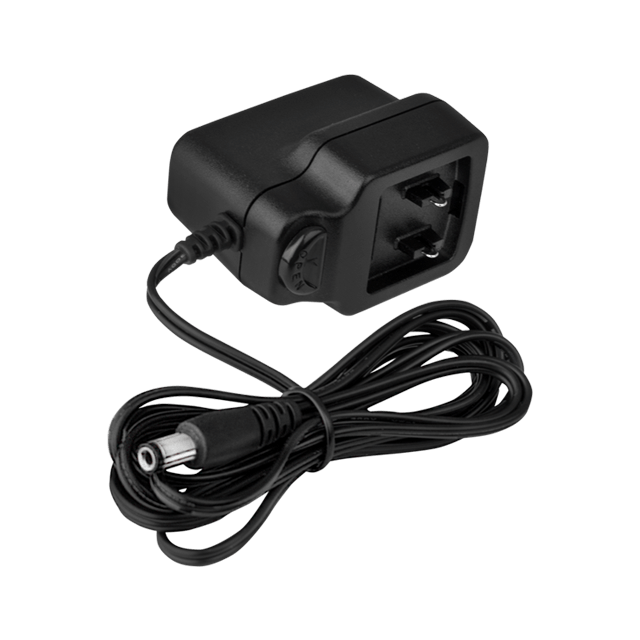

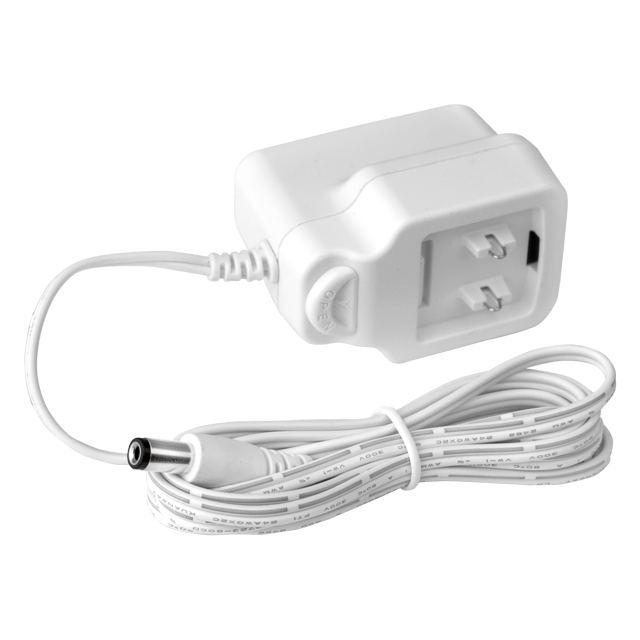

SMI6D Series

The SMI6D Series delivers up to 6 W of reliable AC-DC power in a compact wall plug-in design, meeting the latest UL/EN/IEC 62368-1 safety and DoE Level VI efficiency standards. With universal input (90 ~ 264 VAC), interchangeable blades for worldwide compatibility, and ultra-low no-load power consumption (<0.1 W), it’s the perfect solution for industrial and ICT/AV applications. Built-in protections and certifications ensure safe, worry-free operation wherever you need it.
Features
  • Hidden clip multiblade adapter
  • DoE Level VI efficiency

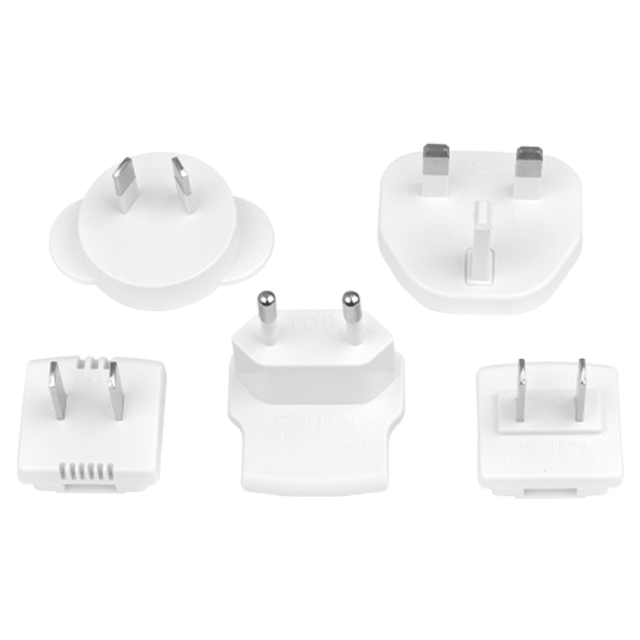

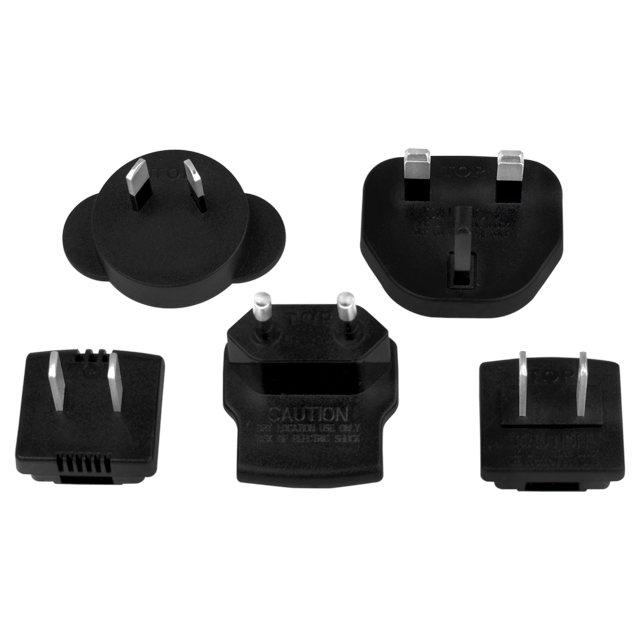

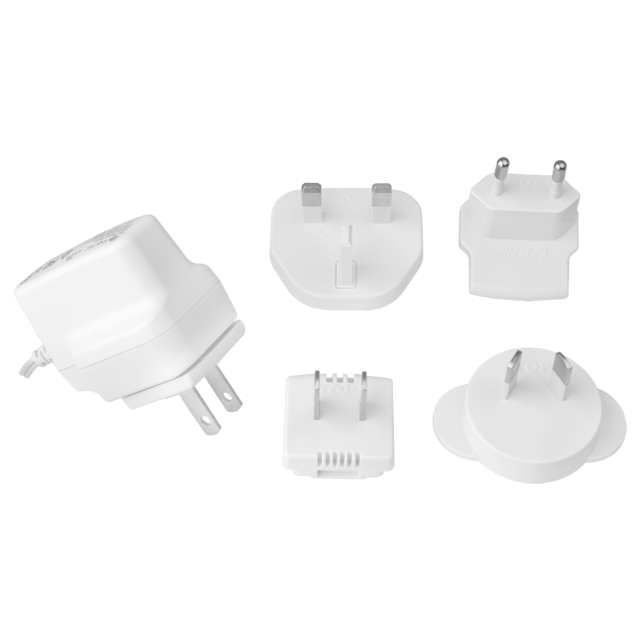

  • Interchangeable AC blades
  • No load power consumption <0.1 W
  • LPS rated
  • Over current protection (OCP)
  • Short circuit protection (SCP)
  • Over voltage protection (OVP)
  • Black and White options available
Specifications
  • Power (W): 5 ~ 6
  • Output Voltage (VDC): 5 ~ 12
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +50
  • Dimensions L x W x H (in): 2.16 x 1.45 x 1.69
  • Dimensions L x W x H (mm): 55.1 x 37 x 42.95
  • Blade Type: Multi-Blade
  • DC Plug Type: Barrel Plug, USB Type B (micro), USB Type C
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
Customize Your Wall Plug Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization
