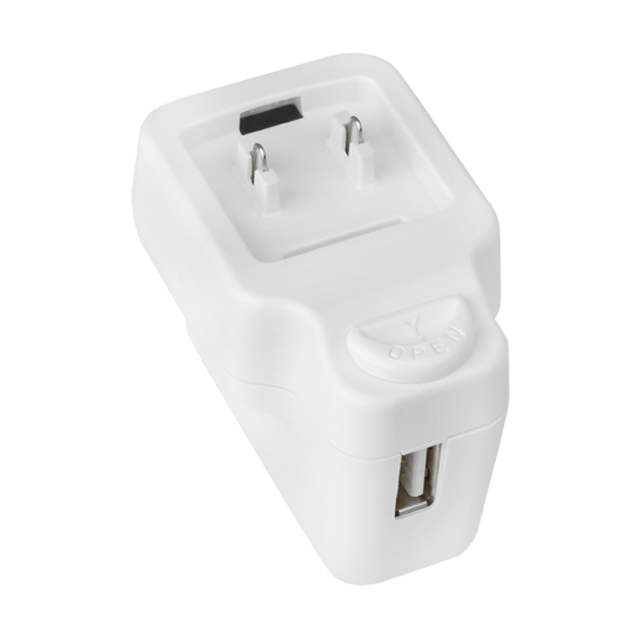

SMI6AD Series
| Model Series | 3D Model | Power (W) | Input Voltage Range (VAC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Efficiency Standards | Blade Region | Blade Type |
|---|---|---|---|---|---|---|---|---|---|
SMI6AD-5In stock
|
|
|
5 | 90 ~ 264 | 5 | 1 | 0 ~ +50 | Level VI | Australia, China, Europe, No Blade, North America, United Kingdom | Multi-Blade |
Technical Resources & Documents
Drawings & Datasheets
Safety Certificates
Tech Resources
Specifications
- Power (W): 5
- Output Voltage (VDC): 5
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +50
- Dimensions L x W x H (in): 2.16 x 1.45 x 1.69
- Dimensions L x W x H (mm): 55.1 x 37 x 42.95
- Blade Type: Multi-Blade
- DC Plug Type: USB Type A
- Safety Standards: 62368
- Safety Approvals: CE, UL/cUL
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
Features

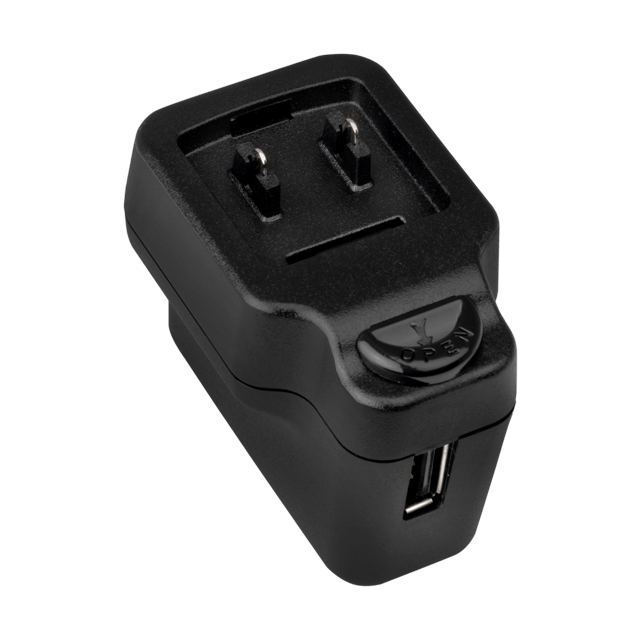

- Hidden clip multiblade adapter
- Universal USB-A Output

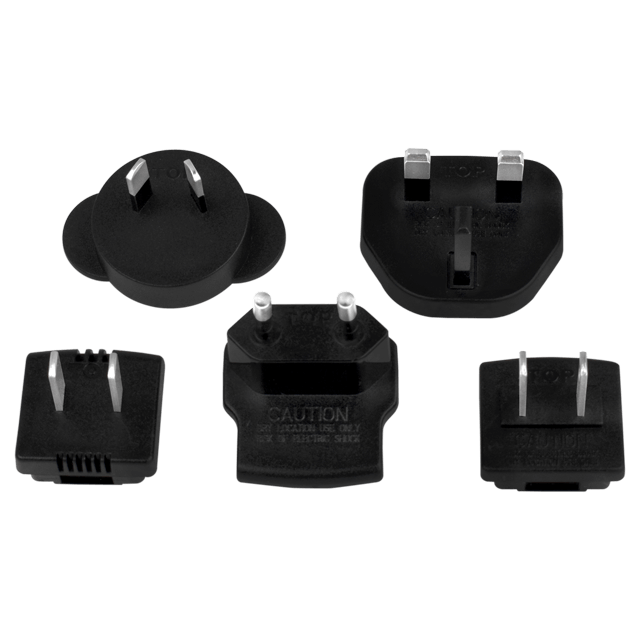

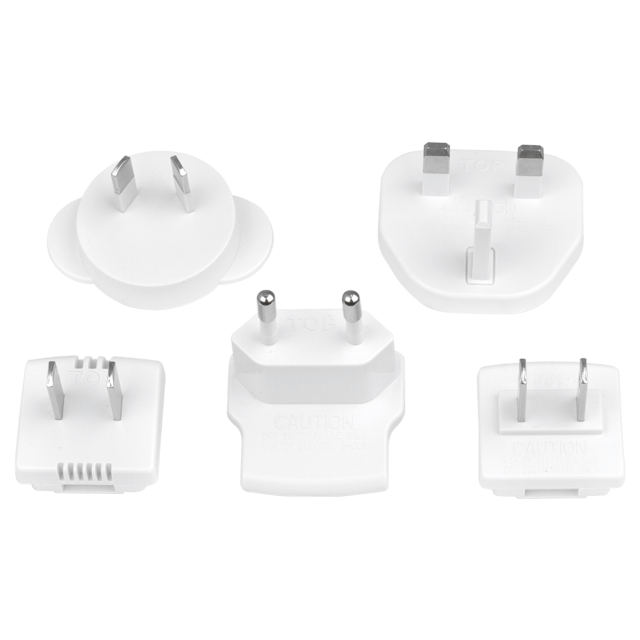

- Interchangeable AC blades
- Universal input voltage range
- No load power consumption <0.1 W
- LPS (Limited Power Source) Rated
- Over current protection (OCP)
- Short circuit protection (SCP)
- Regulatory compliance: UL/cUL, CE, FCC standards
- Black and White options available
Compatible Products with SMI6AD Series

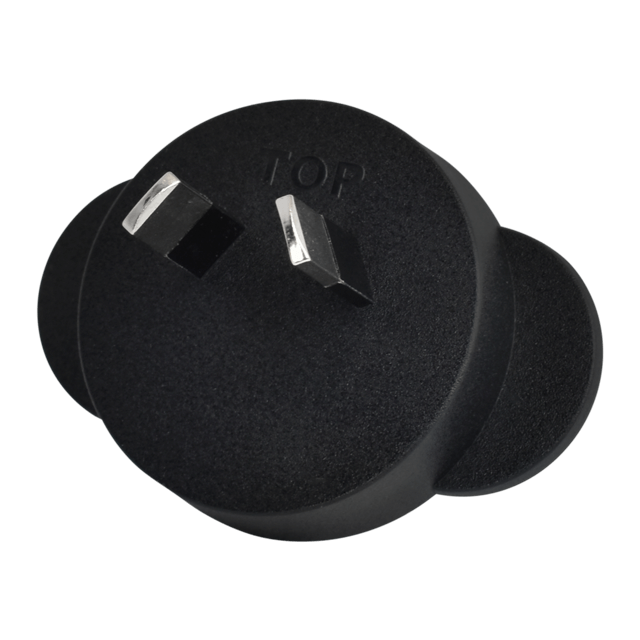

SMI-AU-9
Australia Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in Black
View Product
SMI-AU-9W
Australia Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in White
View Product

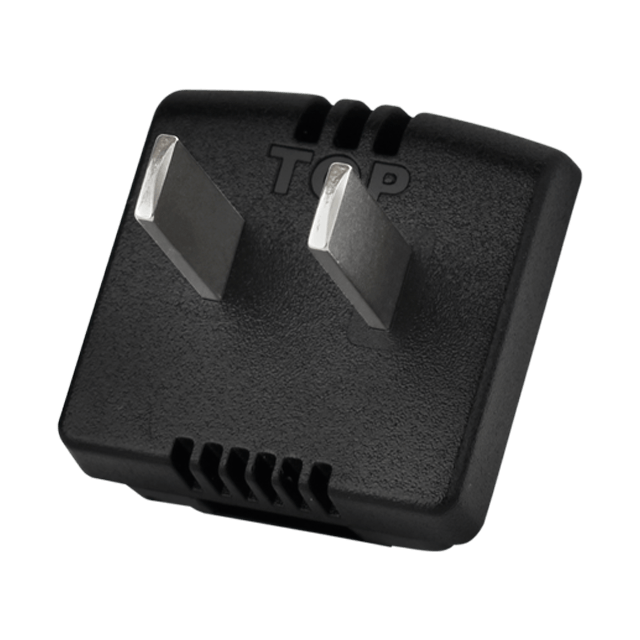

SMI-CN-9
China Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in Black
View Product

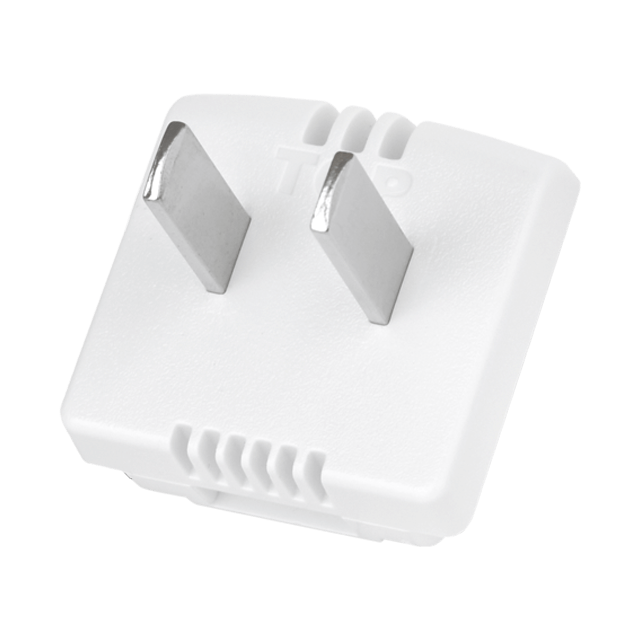

SMI-CN-9W
China Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in White
View Product

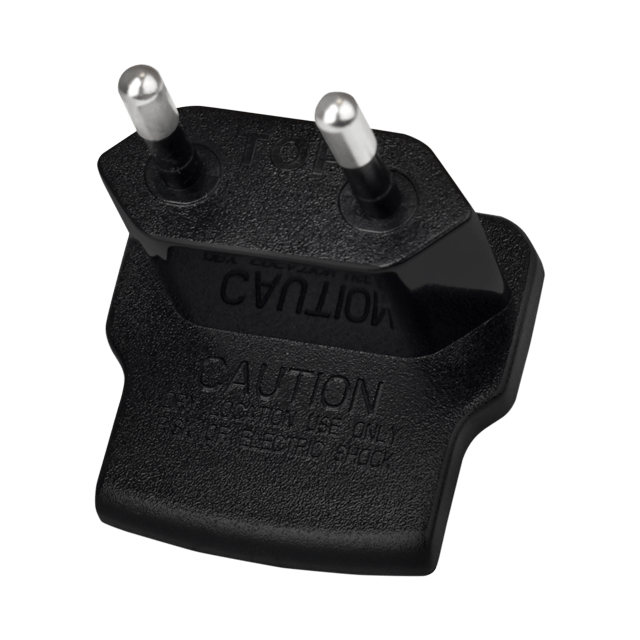

SMI-EU-9
Europe Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in Black
View Product

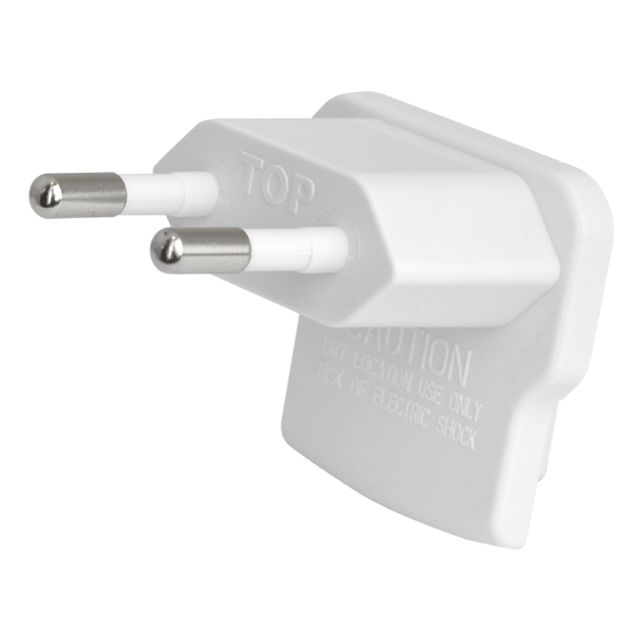

SMI-EU-9W
Europe Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in White
View Product
SMI-UK-9
United Kingdom Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in Black
View Product
SMI-UK-9W
United Kingdom Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in White
View Product
SMI-US-9
North America Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in Black
View Product

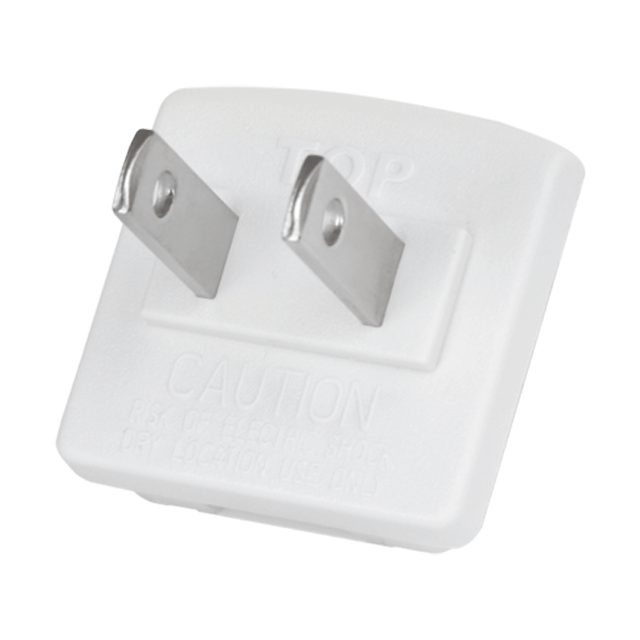

SMI-US-9W
North America Blade for SMI6D and SMI6AD Multi-Blade Power Adapter in White
View Product
