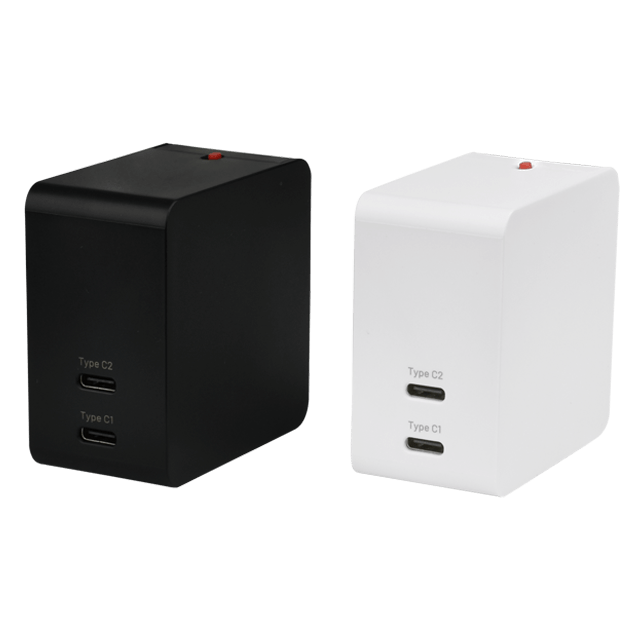

SMI65CC Series
Features

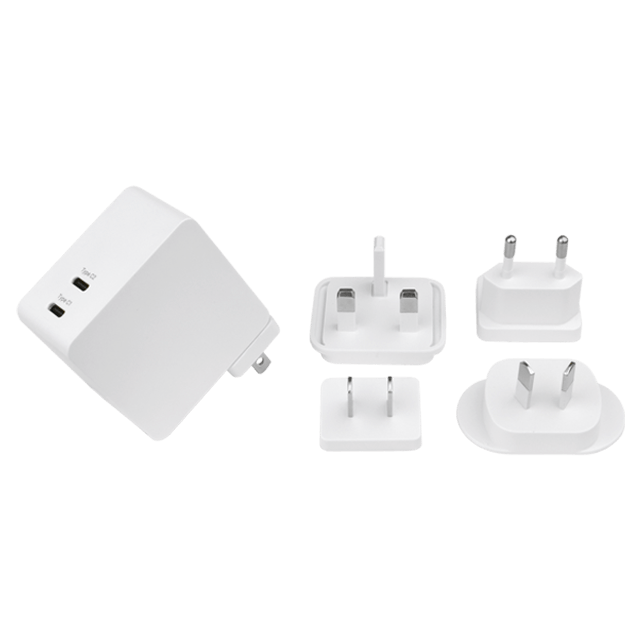

- Top release multi-blade adapter
- Interchangeable input blades
- 2 integrated USB-C ports
- Compliant with Class B USB Type-C power delivery specification
- Designed to meet PD 3.0, PPS, Apple 2.4A, BC1.2
- Certified to UL 62368-1; UL/cUL, RCM, FCC, CE
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Customization available
Specifications
- Power (W): 65
- Output Voltage (VDC): 5 ~ 20
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +25
- Dimensions L x W x H (in): 2.29 x 2.28 x 1.28
- Dimensions L x W x H (mm): 58.2 x 58 x 32.5
- Blade Type: Multi-Blade
- DC Plug Type: USB Type C
- Safety Standards: 62368
- Safety Approvals: CE, FCC, ICES, RCM, UKCA, UL/cUL
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
