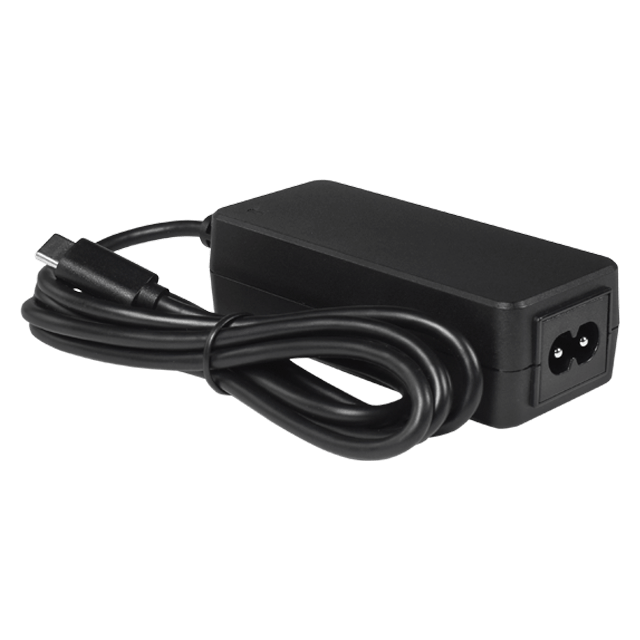

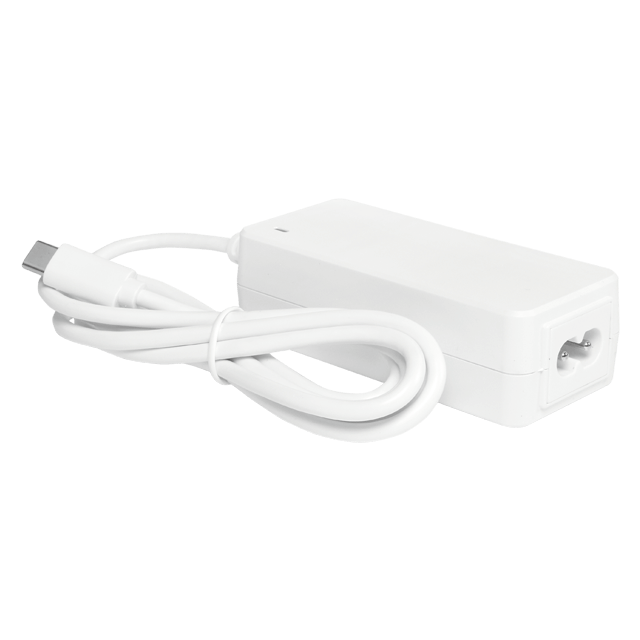

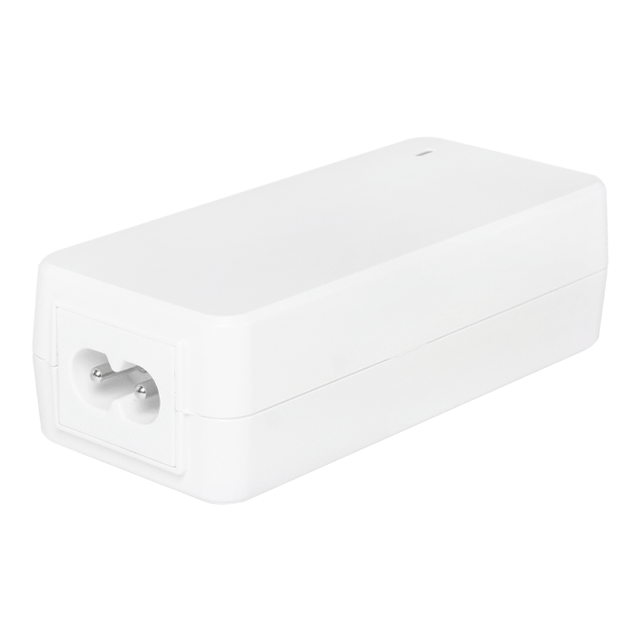

SDI65G-D Series

The SDI65G-D series is a 65W desktop ac-dc power supply with a 2 Prong (C8) inlet and designed to meet Level VI efficiency standards. It is certified to the 62368-1 safety standard is a continuation of Bel's initiative to provide customers with Global solutions for ITE & ICT/AV equipment.

Features

Gallium nitride (GaN) technology
USB Power Delivery (PD) 3.0
Universal input
Over current and short circuit protection
Compact design
Custom Design available

Specifications

Power (W): 65
Output Voltage (VDC): 5 ~ 20
Input Voltage Range (VAC): 90 ~ 264
Operating Temperature Range (ºC): 0 ~ +40
AC Inlet Type: 2 Prong (C8)
Input Cable Region: Europe, No Cable, North America
Safety Standards: 62368
Safety Approvals: CE, FCC, PSE, UKCA, UL/cUL
Protections: Over Voltage, Short Circuit
RoHS Compliant: Yes

Customize Your Power Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.

Request Customization
